android实现打地鼠游戏

今天上课老师用Java实现了打地鼠游戏的界面和具体逻辑，那么我也尝试使用Android语言实现其功能。

首先是打地鼠游戏的玩法

1.每隔1秒或者0.5秒地鼠会出现在九宫格中的任一位置
2.点击界面，如果地鼠出现的位置与点击位置相同，则认为打中地鼠。否则游戏继续。
3.打中地鼠后，游戏立即停止。

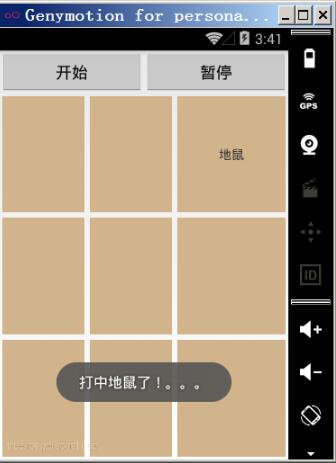

先上两张效果图

布局实现

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
 xmlns:tools="http://schemas.android.com/tools"
 android:layout_width="match_parent"
 android:layout_height="match_parent"
 android:orientation="vertical" >

 <LinearLayout
 android:layout_width="match_parent"
 android:layout_height="wrap_content"
 android:orientation="horizontal" >

 <Button
  android:layout_width="0dp"
  android:layout_height="wrap_content"
  android:layout_weight="1"
  android:onClick="start"
  android:text="开始" />

 <Button
  android:layout_width="0dp"
  android:layout_height="wrap_content"
  android:layout_weight="1"
  android:onClick="end"
  android:text="暂停" />
 </LinearLayout>

 <TableLayout
 android:layout_width="match_parent"
 android:layout_height="0dp"
 android:layout_weight="1" >

 <TableRow android:layout_weight="1" >

  <TextView
  android:id="@+id/text11"
  android:layout_width="wrap_content"
  android:layout_height="match_parent"
  android:layout_margin="3dp"
  android:layout_weight="1"
  android:background="#d2b48c"
  android:gravity="center" />

  <TextView
  android:id="@+id/text12"
  android:layout_width="wrap_content"
  android:layout_height="match_parent"
  android:layout_margin="3dp"
  android:layout_weight="1"
  android:background="#d2b48c"
  android:gravity="center" />

  <TextView
  android:id="@+id/text13"
  android:layout_width="wrap_content"
  android:layout_height="match_parent"
  android:layout_margin="3dp"
  android:layout_weight="1"
  android:background="#d2b48c"
  android:gravity="center" />
 </TableRow>

 <TableRow android:layout_weight="1" >

  <TextView
  android:id="@+id/text21"
  android:layout_width="wrap_content"
  android:layout_height="match_parent"
  android:layout_margin="3dp"
  android:layout_weight="1"
  android:background="#d2b48c"
  android:gravity="center" />

  <TextView
  android:id="@+id/text22"
  android:layout_width="wrap_content"
  android:layout_height="match_parent"
  android:layout_margin="3dp"
  android:layout_weight="1"
  android:background="#d2b48c"
  android:gravity="center" />

  <TextView
  android:id="@+id/text23"
  android:layout_width="wrap_content"
  android:layout_height="match_parent"
  android:layout_margin="3dp"
  android:layout_weight="1"
  android:background="#d2b48c"
  android:gravity="center" />
 </TableRow>

 <TableRow android:layout_weight="1" >

  <TextView
  android:id="@+id/text31"
  android:layout_width="wrap_content"
  android:layout_height="match_parent"
  android:layout_margin="3dp"
  android:layout_weight="1"
  android:background="#d2b48c"
  android:gravity="center" />

  <TextView
  android:id="@+id/text32"
  android:layout_width="wrap_content"
  android:layout_height="match_parent"
  android:layout_margin="3dp"
  android:layout_weight="1"
  android:background="#d2b48c"
  android:gravity="center" />

  <TextView
  android:id="@+id/text33"
  android:layout_width="wrap_content"
  android:layout_height="match_parent"
  android:layout_margin="3dp"
  android:layout_weight="1"
  android:background="#d2b48c"
  android:gravity="center" />
 </TableRow>
 </TableLayout>

</LinearLayout>

逻辑代码

需要实现每隔1秒绘制一次界面，且得确定更新地鼠的位置（这里我用的handler来发送循环消息实现的）

ArrayList<TextView>texts;//用来存放九个TextView
Handler handler = new Handler(new Callback() {
 @Override
 public boolean handleMessage(Message msg) {
  number = (int) (Math.random() * 8);
  System.out.println(number);
  for (int i = 0; i < arrays.length; i++) {
  if (i==number) {
   texts.get(i).setText("地鼠");
  }else {
   texts.get(i).setText("");
  }
  }
  handler.sendEmptyMessageDelayed(0, 500);
  return false;
 }
 });

这里单独写一个TextView的点击事件(一共九个)，这里需要注意的是，我给每个textview都赋给了一个值a，从0-8，当点击的textview值 a=（地鼠出现的位置）时，我们就可以认为打中了地鼠。

public void onClick(View v) {
 // TODO Auto-generated method stub
 switch (v.getId()) {
 case R.id.text11:
  if (number==0) {
  Toast.makeText(this, "打中地鼠了！。。。", 1).show();

  handler.removeMessages(0);
  }
  break;
 }
 }

最后贴上全部代码。

package com.example.dadishu;

import java.io.IOException;
import java.util.ArrayList;
import java.util.Timer;
import java.util.TimerTask;

import android.app.Activity;
import android.media.MediaPlayer;
import android.os.Bundle;
import android.os.Handler;
import android.os.Handler.Callback;
import android.os.Message;
import android.view.View;
import android.view.View.OnClickListener;
import android.view.Window;
import android.widget.TextView;
import android.widget.Toast;

public class MainActivity extends Activity implements OnClickListener {

 private int number;
 private TextView text11;
 private TextView text12;
 private TextView text13;
 private TextView text21;
 private TextView text22;
 private TextView text23;
 private TextView text31;
 private TextView text32;
 private TextView text33;

 private int[] arrays = { 1, 2, 3, 4, 5, 6, 7, 8, 9 };
 ArrayList<TextView> texts;
 Handler handler = new Handler(new Callback() {

 @Override
 public boolean handleMessage(Message msg) {
  number = (int) (Math.random() * 8);
  System.out.println(number);
  for (int i = 0; i < arrays.length; i++) {
  if (i == number) {
   texts.get(i).setText("地鼠");
  } else {
   texts.get(i).setText("");
  }
  }
  handler.sendEmptyMessageDelayed(0, 500);
  return false;
 }
 });

 @Override
 protected void onCreate(Bundle savedInstanceState) {
 super.onCreate(savedInstanceState);
 requestWindowFeature(Window.FEATURE_NO_TITLE);
 setContentView(R.layout.activity_main);
 text11 = (TextView) findViewById(R.id.text11);
 text12 = (TextView) findViewById(R.id.text12);
 text13 = (TextView) findViewById(R.id.text13);
 text21 = (TextView) findViewById(R.id.text21);
 text22 = (TextView) findViewById(R.id.text22);
 text23 = (TextView) findViewById(R.id.text23);
 text31 = (TextView) findViewById(R.id.text31);
 text32 = (TextView) findViewById(R.id.text32);
 text33 = (TextView) findViewById(R.id.text33);

 texts = new ArrayList<TextView>();
 for (int i = 0; i < arrays.length; i++) {
  texts.add(text11);
  texts.add(text12);
  texts.add(text13);
  texts.add(text21);
  texts.add(text22);
  texts.add(text23);
  texts.add(text31);
  texts.add(text32);
  texts.add(text33);

 }
 for (TextView text : texts) {
  text.setOnClickListener(this);
 }
 }

 public void start(View v) {

 TimerTask task = new TimerTask() {
  @Override
  public void run() {
  handler.sendEmptyMessage(0);

  }
 };
 Timer timer = new Timer();
 timer.schedule(task, 500);
 }

 public void end(View v) {
 handler.removeMessages(0);
 }

 @Override
 public void onClick(View v) {
 // TODO Auto-generated method stub
 switch (v.getId()) {
 case R.id.text11:
  if (number == 0) {
  Toast.makeText(this, "打中地鼠了！。。。", 1).show();

  handler.removeMessages(0);
  }
  break;
 case R.id.text12:
  if (number == 1) {
  Toast.makeText(this, "打中地鼠了！。。。", 1).show();
  handler.removeMessages(0);
  }
  break;
 case R.id.text13:
  if (number == 2) {
  Toast.makeText(this, "打中地鼠了！。。。", 1).show();
  handler.removeMessages(0);
  }
  break;
 case R.id.text21:
  if (number == 3) {
  Toast.makeText(this, "打中地鼠了！。。。", 1).show();
  handler.removeMessages(0);
  }
  break;
 case R.id.text22:
  if (number == 4) {
  Toast.makeText(this, "打中地鼠了！。。。", 1).show();
  handler.removeMessages(0);
  }
  break;
 case R.id.text23:
  if (number == 5) {
  Toast.makeText(this, "打中地鼠了！。。。", 1).show();
  handler.removeMessages(0);
  }
  break;
 case R.id.text31:
  if (number == 6) {
  Toast.makeText(this, "打中地鼠了！。。。", 1).show();
  handler.removeMessages(0);
  }
  break;
 case R.id.text32:
  if (number == 7) {
  Toast.makeText(this, "打中地鼠了！。。。", 1).show();
  handler.removeMessages(0);
  }
  break;
 case R.id.text33:
  if (number == 8) {
  Toast.makeText(this, "打中地鼠了！。。。", 1).show();
  handler.removeMessages(0);
  }
  break;
 default:
  break;
 }
 }

 @Override
 protected void onDestroy() {
 // TODO Auto-generated method stub
 super.onDestroy();
 player.release();
 }
}

以上就是本文的全部内容，希望对大家的学习有所帮助，也希望大家多多支持自学编程网。
