python爬虫之教你如何爬取地理数据

# 导入所需模块
from shapely import geometry as geo
from shapely import wkt
from shapely import ops
import numpy as np
from shapely.geometry.polygon import LinearRing
from shapely.geometry import Polygon
from shapely.geometry import asPoint, asLineString, asMultiPoint, asPolygon

# 创建point
pt1 = geo.Point([0,0])
coord = np.array([0,1])
pt2 = geo.Point(coord)
pt3 = wkt.loads("POINT(1 1)")
geo.GeometryCollection([pt1, pt2, pt3]) #批量可视化

# point常用属性
print(pt1.x) #pt1的x坐标
print(pt1.y)#pt1的y坐标
print(list(pt1.coords))
print(np.array(pt1))

# point计算距离
d = pt2.distance(pt1) #计算pt1与pt2的距离, d =1.0

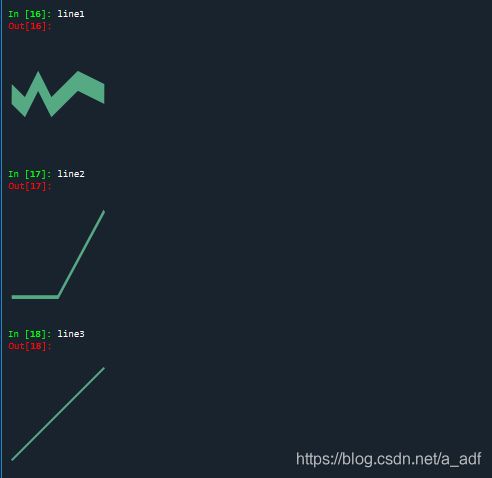

# LineString的创建
line1 = geo.LineString([(0,0),(1,-0.1),(2,0.1),(3,-0.1),(5,0.1),(7,0)])
arr = np.array([(2, 2), (3, 2), (4, 3)])
line2 = geo.LineString(arr)
line3 = wkt.loads("LineString(-2 -2,4 4)")

print(line2.length) #计算线段长度：2.414213562373095
print(list(line2.coords)) #线段中点的坐标：[(2.0, 2.0), (3.0, 2.0), (4.0, 3.0)]
print(np.array(line2)) #将点坐标转成numpy.array形式[[2. 2.],[3. 2.],[4. 3.]]
print(line2.bounds)#坐标范围:(2.0, 2.0, 4.0, 3.0)
center = line2.centroid #几何中心:
geo.GeometryCollection([line2, center])
bbox = line2.envelope #最小外接矩形
geo.GeometryCollection([line2, bbox])

rect = line2.minimum_rotated_rectangle #最小旋转外接矩形
geo.GeometryCollection([line2, rect])

#常用方法
d1 = line1.distance(line2) #线线距离： 1.9
d2 = line1.distance(geo.Point([-1, 0])) #点线距离：1.0
d3 = line1.hausdorff_distance(line2) #最大最小距离：4.242640687119285

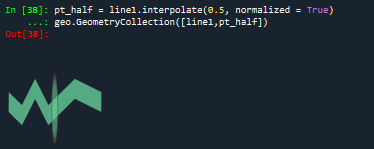

#插值
pt_half = line1.interpolate(0.5, normalized = True)
geo.GeometryCollection([line1,pt_half])

#投影
ratio = line1.project(pt_half, normalized = True)
print(ratio)#project()方法是和interpolate方法互逆的:0.5

#DouglasPucker算法
line1 = geo.LineString([(0, 0), (1, -0.2), (2, 0.3), (3, -0.5), (5, 0.2), (7,0)])
line1_simplify = line1.simplify(0.4, preserve_topology=False)
print(line1)#LINESTRING (0 0, 1 -0.1, 2 0.1, 3 -0.1, 5 0.1, 7 0)
print(line1_simplify)#LINESTRING (0 0, 2 0.3, 3 -0.5, 5 0.2, 7 0)
buffer_with_circle = line1.buffer(0.2) #端点按照半圆扩展
geo.GeometryCollection([line1,buffer_with_circle])

#LinearRing是一个封闭图形
ring = LinearRing([(0, 0), (1, 1), (1, 0)])
print(ring.length)#相比于刚才的LineString的代码示例，其长度现在是3.41，是因为其序列是闭合的
print(ring.area)：结果为0
geo.GeometryCollection([ring])

polygonl = Polygon([(0, 0), (1, 1), (1, 0)])
ext = [(0, 0), (0, 2), (2, 2), (2, 0), (0, 0)]
int1 = [(1, 0), (0.5, 0.5), (1, 1), (1.5, 0.5), (1, 0)]
polygon2 = Polygon(ext, [int1])
print(polygonl.area)#几何对象的面积：0.5
print(polygonl.length)#几何对象的周长：3.414213562373095
print(polygon2.area)#其面积是ext的面积减去int的面积：3.5
print(polygon2.length)#其长度是ext的长度加上int的长度：10.82842712474619
print(np.array(polygon2.exterior)) #外围坐标点：
#[[0. 0.]
 #[0. 2.]
 #[2. 2.]
 #[2. 0.]
# [0. 0.]]

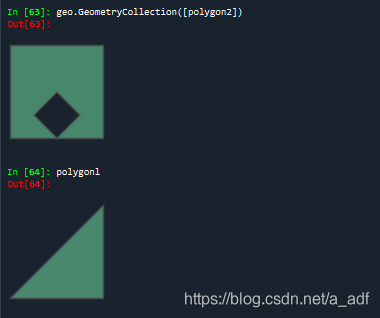

geo.GeometryCollection([polygon2])

#obj.contains(other) == other.within(obj)
coords = [(0, 0), (1, 1)]
print(geo.LineString(coords).contains(geo.Point(0.5, 0.5)))#包含：True

print(geo.LineString(coords).contains(geo.Point(1, 1)))#False
polygon1 = Polygon([(0, 0), (0, 2), (2, 2), (2, 0), (0, 0)])
print(polygon1.contains(geo.LineString([(1.0, 1.0), (1.0, 0)])))#面与线关系:True

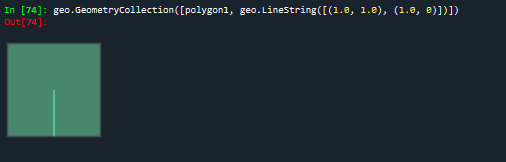

#contains方法也可以扩展到面与线的关系以及面与面的关系
geo.GeometryCollection([polygon1, geo.LineString([(1.0, 1.0), (1.0, 0)])])

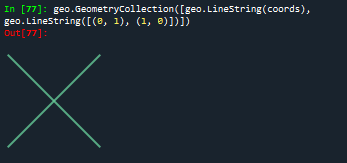

#obj.crosses(other):相交与否
print(geo.LineString(coords).crosses(geo.LineString([(0, 1), (1, 0)])))#：True
geo.GeometryCollection([geo.LineString(coords), geo.LineString([(0, 1), (1, 0)])])
#obj.disjoint(other):均不相交返回True
print(geo.Point(0, 0).disjoint(geo.Point(1, 1)))
#object.intersects(other)如果该几何对象与另一个几何对象只要相交则返回True。
print(geo.LineString(coords).intersects(geo.LineString([(0, 1), (1, 0)])))#True

#object.convex_hull返回包含对象中所有点的最小凸多边形（凸包）
points1 = geo.MultiPoint([(0, 0), (1, 1), (0, 2), (2, 2), (3, 1), (1, 0)])
hull1 = points1.convex_hull
geo.GeometryCollection([hull1, points1])

#object.intersection  返回对象与对象之间的交集
polygon1 = Polygon([(0, 0), (0, 2), (2, 2), (2, 0), (0, 0)])
hull1.intersection(polygon1)

#返回对象与对象之间的并集
hull1.union(polygon1)

#面面补集
hull1.difference(polygon1)

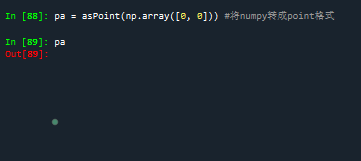

pa = asPoint(np.array([0, 0])) #将numpy转成point格式

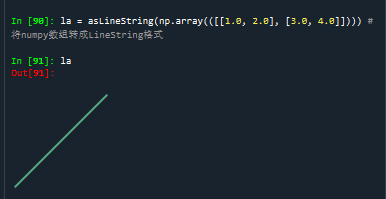

 #将numpy数组转成LineString格式
la = asLineString(np.array(([[1.0, 2.0], [3.0, 4.0]])))

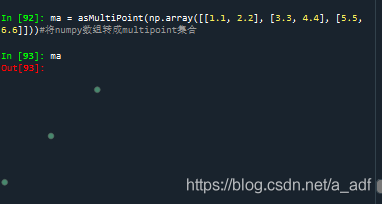

#将numpy数组转成multipoint集合
ma = asMultiPoint(np.array([[1.1, 2.2], [3.3, 4.4], [5.5, 6.6]]))

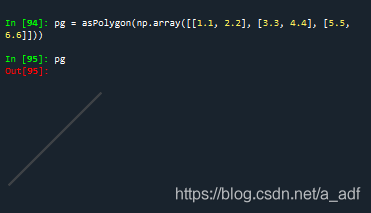

#将numpy转成多边形
pg = asPolygon(np.array([[1.1, 2.2], [3.3, 4.4], [5.5, 6.6]]))

import pandas as pd
import geopandas
import matplotlib.pyplot as plt
world = geopandas.read_file(geopandas.datasets.get_path('naturalearth_lowres')) #read_file方法可以读取shape文件
world.plot()
plt.show()

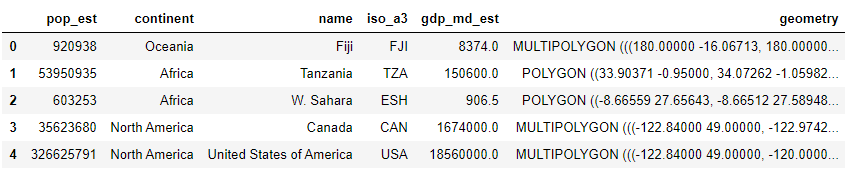

world.head()

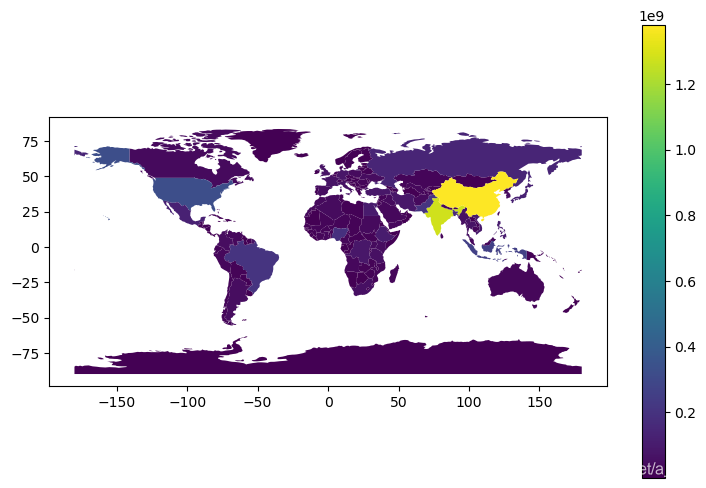

#根据每一个polygon的pop_est不同，便可以用python绘制图表显示不同国家的人数
fig, ax = plt.subplots(figsize = (9, 6), dpi = 100)
world.plot('pop_est', ax = ax, legend =True)
plt.show()

```python
import pandas as pd
import geopandas as gpd
from pyproj import Proj #左边转换
from keplergl import KeplerGl
from tqdm import tqdm
import os
import matplotlib.pyplot as plt
from matplotlib.lines import Line2D
import shapely
import numpy as np
from datetime import datetime
import warnings
warnings.filterwarnings('ignore')
plt.rcParams['font.sans-serif'] = ['SimSun'] #指定默认字体为新宋体
plt.rcParams['axes.unicode_minus'] = False

#获取文件夹中的数据
def get_data(file_path, model):
    assert model in ['train', 'test'], '{} Not Support this type of file'.format(model)
    paths = os.listdir(file_path)
    tmp = []
    for t in tqdm(range(len(paths))):
        p = paths[t]
        with open('{}/{}'.format(file_path, p), encoding = 'utf-8') as f:
            next(f) #读取下一行
            for line in f.readlines():
                tmp.append(line.strip().split(','))
    tmp_df = pd.DataFrame(tmp)
    if model == 'train':
        tmp_df.columns = ['ID', 'lat', 'lon', 'speed', 'direction', 'time', 'type']
    else:
        tmp_df['type'] = 'unknown'
        tmp_df.columns = ['ID', 'lat', 'lon', 'speed', 'direction', 'time', 'type']
    tmp_df['lat'] = tmp_df['lat'].astype(float)
    tmp_df['lon'] = tmp_df['lon'].astype(float)
    tmp_df['speed'] = tmp_df['speed'].astype(float)
    tmp_df['direction'] = tmp_df['direction'].astype(int)
    return tmp_df
file_path = r"C:\Users\李\Desktop\datawheal\数据\hy_round1_train_20200102"
model = 'train'
#平面坐标转经纬度
def transform_xy2lonlat(df):
    x = df['lat'].values
    y = df['lon'].values
    p = Proj('+proj=lcc +lat_1=33.88333333333333 +lat_2=32.78333333333333 +lat_0=32.16666666666666 +lon_0=-116.25 +x_0=2000000.0001016 +y_0=500000.0001016001 +datum=NAD83 +units=us-ft +no_defs ')
    df['lon'], df['lat'] = p(y, x, inverse = True)
    return df
#修改数据的时间格式
def reformat_strtime(time_str = None, START_YEAR = '2019'):
     time_str_split = time_str.split(" ") #以空格为分隔符
     time_str_reformat = START_YEAR + '-' + time_str_split[0][:2] + "-" + time_str_split[0][2:4]
     time_str_reformat = time_str_reformat + " " + time_str_split[1]
     return time_str_reformat

#计算两个点的距离
def haversine_np(lon1, lat1, lon2, lat2):
    lon1, lat1, lon2, lat2 = map(np.radians, [lon1, lat1, lon2, lat2])
    dlon = lon2 - lon1
    dlat = lat2 - lat1
    a = np.sin(dlat/2.0)**2 + np.cos(lat1) * np.cos(lat2) * np.sin(dlon/2.0)**2
    c = 2 * np.arcsin(np.sqrt(a))
    km = 6367 * c
    return km * 1000

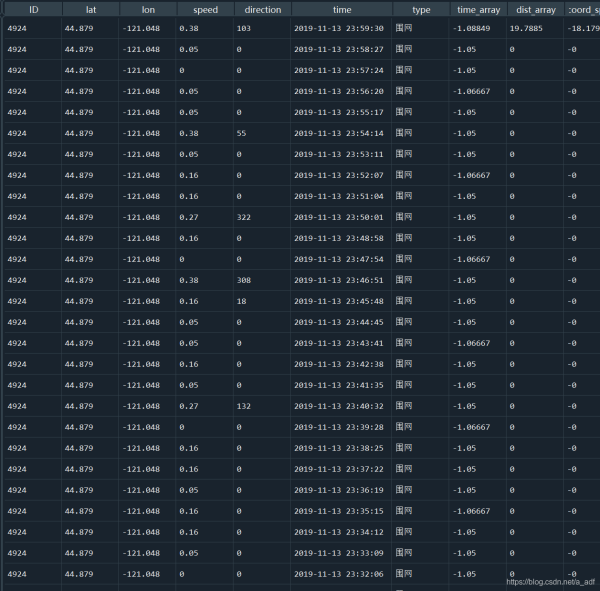

#计算时间的差值
def compute_traj_diff_time_distance(traj = None):
    #计算时间的差值
    time_diff_array = (traj['time'].iloc[1:].reset_index(drop = True) - traj['time'].iloc[:-1].reset_index(drop = True)).dt.total_seconds() / 60
    #计算坐标之间的距离
    dist_diff_array = haversine_np(traj['lon'].values[1:],
                                   traj['lat'].values[1:],
                                   traj['lon'].values[:-1],
                                   traj['lat'].values[:-1])
    #填充第一个值
    time_diff_array = [time_diff_array.mean()] + time_diff_array.tolist()
    dist_diff_array = [dist_diff_array.mean()] + dist_diff_array.tolist()
    traj.loc[list(traj.index), 'time_array'] = time_diff_array
    traj.loc[list(traj.index), 'dist_array'] = dist_diff_array
    return traj
#对轨迹进行异常点的剔除
def assign_traj_anomaly_points_nan(traj = None, speed_maximum = 23,time_interval_maximum = 200, coord_speed_maximum = 700):
    #将traj中的异常点分配给np.nan
    def thigma_data(data_y, n):
        data_x = [i for i in range(len(data_y))]
        ymean = np.mean(data_y)
        ystd = np.std(data_y)
        threshold1 = ymean - n * ystd
        threshold2 = ymean + n * ystd
        judge = []
        for data in data_y:
            if data < threshold1 or data > threshold2:
                judge.append(True)
            else:
                judge.append(False)
        return judge
    #异常速度修改
    is_speed_anomaly = (traj['speed'] > speed_maximum) | (traj['speed'] < 0)
    traj['speed'][is_speed_anomaly] = np.nan
    #根据距离和时间计算速度
    is_anomaly = np.array([False] * len(traj))
    traj['coord_speed'] = traj['dist_array'] / traj['time_array']
    #根据3-sigma算法对速度剔除以及较大的时间间隔点
    is_anomaly_tmp = pd.Series(thigma_data(traj['time_array'], 3)) | pd.Series(thigma_data(traj['coord_speed'], 3))
    is_anomaly = is_anomaly | is_anomaly_tmp
    is_anomaly.index = traj.index
    #轨迹点的3-sigma异常处理
    traj = traj[~is_anomaly].reset_index(drop = True)
    is_anomaly = np.array([False]*len(traj))
    if len(traj) != 0:
        lon_std, lon_mean = traj['lon'].std(), traj['lon'].mean()
        lat_std, lat_mean = traj['lat'].std(), traj['lat'].mean()
        lon_low, lon_high = lon_mean - 3* lon_std, lon_mean + 3 * lon_std
        lat_low, lat_high = lat_mean - 3 * lat_std, lat_mean + 3 * lat_std
        is_anomaly = is_anomaly | (traj['lon'] > lon_high) | ((traj['lon'] < lon_low))
        is_anomaly = is_anomaly | (traj["lat"] > lat_high) | ((traj["lat"] < lat_low))
        traj = traj[~is_anomaly].reset_index(drop = True)
    return traj, [len(is_speed_anomaly) - len(traj)]

file_path = r"C:\Users\李\Desktop\datawheal\数据\hy_round1_train_20200102"
model = 'train'
df = get_data(file_path, model)
#转换时间格式
df = transform_xy2lonlat(df)
df['time'] = df['time'].apply(reformat_strtime)
df['time'] = df['time'].apply(lambda x: datetime.strptime(x,'%Y-%m-%d %H:%M:%S'))
#对轨迹的异常点进行剔除，对缺失值进行线性插值处理
ID_list = list(pd.DataFrame(df['ID'].value_counts()).index)
DF_NEW = []
Anomaly_count = []
for ID in tqdm(ID_list):
    # print(ID)
    df_id = compute_traj_diff_time_distance(df[df['ID'] == ID])
    df_new, count = assign_traj_anomaly_points_nan(df_id)
    df_new['speed'] = df_new['speed'].interpolate(method = 'linear', axis = 0)
    df_new = df_new.fillna(method = 'bfill') #用前一个非缺失值取填充该缺失值
    df_new = df_new.fillna(method = 'ffill')#用后一个非缺失值取填充该缺失值
    df_new['speed'] = df_new['speed'].clip(0, 23) #clip()函数将其限定在0，23
    Anomaly_count.append(count) #统计每个id异常点的数量有多少
    DF_NEW.append(df_new)
DF = pd.concat(DF_NEW)

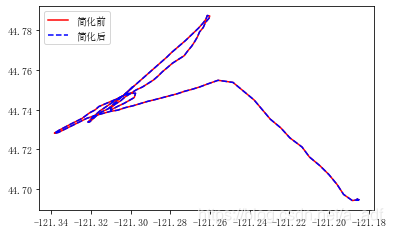

#道格拉斯-普克，由该案例可以看出针对相同的ID轨迹，可以先用geopandas将其进行简化和数据压缩
line = shapely.geometry.LineString(np.array(df[df['ID'] == '11'][['lon', 'lat']]))
ax = gpd.GeoSeries([line]).plot(color = 'red')
ax = gpd.GeoSeries([line]).simplify(tolerance = 0.000000001).plot(color = 'blue', ax = ax, linestyle = '--')
LegendElement = [Line2D([], [], color = 'red', label = '简化前'),
                 Line2D([], [], color = 'blue', linestyle = '--', label = '简化后')]
#将制作好的图例影响对象列表导入legend()中
ax.legend(handles = LegendElement, loc = 'upper left', fontsize = 10)
print('化简前数据长度：' + str(len(np.array(gpd.GeoSeries([line])[0]))))
print('化简后数据长度' + str(len(np.array(gpd.GeoSeries([line]).simplify(tolerance = 0.000000001)[0]))))
#定义数据简化函数，通过shapely库将经纬度转换成LineString格式，然后通过GeoSeries数据结构中利用simplify进行简化，再将所有数据放入GeoDataFrame
def simplify_dataframe(df):
    line_list = []
    for i in tqdm(dict(list(df.groupby('ID')))):
        line_dict = {}
        lat_lon = dict(list(df.groupby('ID')))[i][['lon', 'lat']]
        line = shapely.geometry.LineString(np.array(lat_lon))
        line_dict['ID'] = dict(list(df.groupby('ID')))[i].iloc[0]['ID']
        line_dict['type'] = dict(list(df.groupby('ID')))[i].iloc[0]['type']
        line_dict['geometry'] = gpd.GeoSeries([line]).simplify(tolerance = 0.000000001)[0]
        line_list.append(line_dict)
    return gpd.GeoDataframe(line_list)

df_gpd_change=pd.read_pickle(r"C:\Users\李\Desktop\datawheal\数据\df_gpd_change.pkl")
map1=KeplerGl(height=800)#zoom_start与这个height类似，表示地图的缩放程度
map1.add_data(data=df_gpd_change,name='data')
#当运行该代码后，下面会有一个kepler.gl使用说明的链接，可以根据该链接进行学习参

def geohash_encode(latitude, longitude, precision = 12):
    lat_interval, lon_interval = (-90.0, 90.0), (-180, 180)

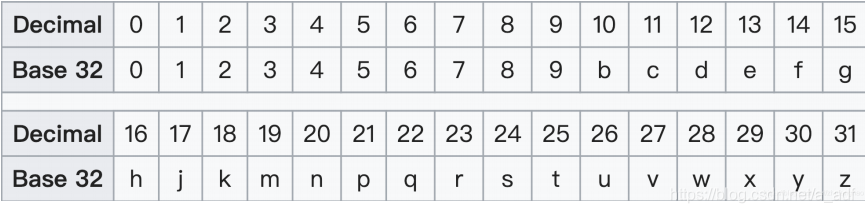

    base32 = '0123456789bcdefghjkmnpqrstuvwxyz'
    geohash = []
    bits = [16, 8, 4, 2, 1]
    bit = 0
    ch = 0
    even = True
    while len(geohash) < precision:
        if even:
            mid = (lon_interval[0] + lon_interval[1]) / 2
            if longitude > mid:
                ch |= bits[bit]
                lon_interval = (mid, lon_interval[1])
            else:
                lon_interval = (lon_interval[0], mid)
        else:
            mid = (lat_interval[0] + lat_interval[1]) / 2
            if latitude > mid:
                ch |= bits[bit]
                lat_interval = (mid, lat_interval[1])
            else:
                lat_interval = (lat_interval[0], mid)
        even = not even
        if bit < 4:
            bit += 1
        else:
            geohash += base32[ch]
            bit = 0
            ch = 0
    return ''.join(geohash)
