R语言-在一张图上显示多条线的实现

查询百度之后,发现在R上一次显示多张图的函数很多,比如layout()或者分屏函数,但是这些都不是我想要的结果。

之后,发现了line()函数可以保留原来图片继续作图,在括号中填入所需画图的部分即可(我是将一个矩阵作图)。

先运行plot()函数,再注释掉plot()函数运行line()函数即可。

效果如下:

20

补充:R语言:在同一张图作不同曲线

R语言将两条曲线作在同一张图的方法是

library(ggplot2)
year<-c(1993,1998,2003,2008)
Res<-c(0.0227,0.0198,0.0155,0.0147)
COPD<-c(0.0138,0.0125,0.0075,0.0069)

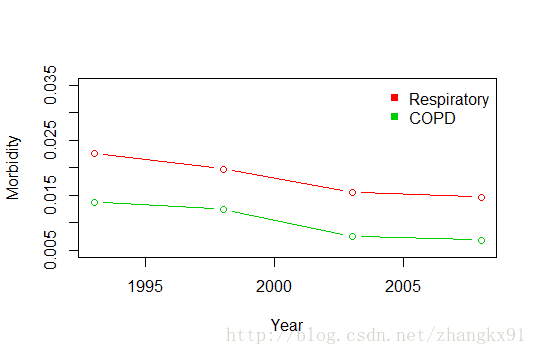

#R语言基础包作图
plot(year,Res,col=2,type="b",ylim=c(0.005,0.035),xlab = "Year",ylab ="Morbidity")
lines(year,COPD,col=3,type="b")
legend("topright",pch=c(15,15),legend=c("Respiratory","COPD"),col=c(2,3),bty="n")

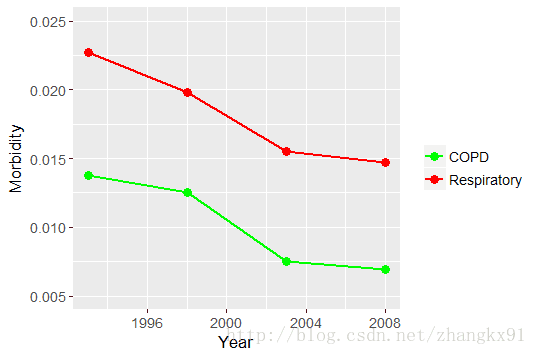

#ggplot包作图
dd <- data.frame(year,Res,COPD)
ggplot()+geom_line(data = dd,aes(x = year,y = Res,colour = "Respiratory"),size=1)+
  geom_point(data = dd,aes(x = year,y = Res,colour = "Respiratory"),size=3)+
  ylim(0.005,0.025)+
  geom_line(data = dd,aes(x = year,y = COPD,colour ="COPD"),size=1) +
  geom_point(data = dd,aes(x = year,y = COPD,colour = "COPD"),size=3)+
  scale_colour_manual("",values = c("Respiratory" = "red","COPD" = "green"))+
  xlab("Year")+ylab("Morbidity")+
  theme(text=element_text(size=13, family="Comic Sans MS"))

以上为个人经验,希望能给大家一个参考,也希望大家多多支持自学编程网。如有错误或未考虑完全的地方,望不吝赐教。
