M1 Macbook vscode C++ debug调试实现

这里给出自己摸索的最基本的调试方式,需要进阶调试感觉还是需要一定的学习成本的,尝试了几个网上的博客,暂时没遇到直接可以运行的。所以这里记录一下大概方法。

主要是需要在目录文件下配置两个 json 文件(tasks.json,launch.json)

版本说明

VS code 版本是在官网直接下载的 M1 版本的 February 2021 (version 1.54)
官方下载

扩展

主要是要下载 codeLLDB 的下载,直接在 VS code 里面搜索下载就好了(可能需要从网上下载 VSIX,不过 VS code 会有提示)

配置文件

首先需要有一个文件目录 demo:

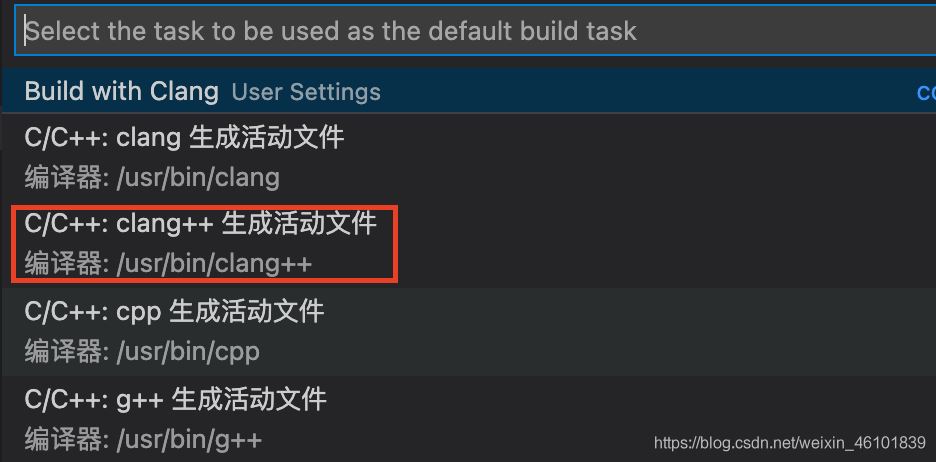

选中我们需要调试的文件 test.cpp,然后按 F1,打开设置选项,选择 Tasks:Configure Default Build Task,根据需要选择对应的编译器,这里选择 clang++:



之后 VS code 会在同级目录下自动生成一个名为 `tasks.json` 的文件,正常这里是如果没有其他需求直接使用默认的即可,如果需要加入 std=c++11 还是 c++17 之类的,要在 `args` 的内容里添加,这个可以额外学习一下 tasks.json 的配置教程,这里就不赘述了。默认生成内容如下:

{
	"version": "2.0.0",
	"tasks": [
		{
			"type": "cppbuild",
			"label": "C/C++: clang++ 生成活动文件",
			"command": "/usr/bin/clang++",
			"args": [
				"-g",
				"${file}",
				"-o",
				"${fileDirname}/${fileBasenameNoExtension}"
			],
			"options": {
				"cwd": "${fileDirname}"
			},
			"problemMatcher": [
				"$gcc"
			],
			"group": {
				"kind": "build",
				"isDefault": true
			},
			"detail": "编译器: /usr/bin/clang++"
		}
	]
}

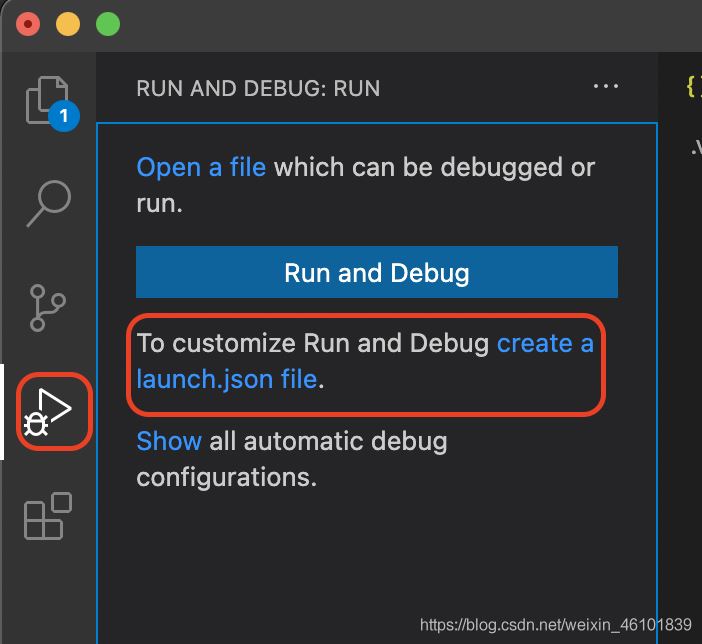

然后 选择左边第三个调试选项,再选择create a launch.json file

然后要选择 LLDB 选项,这个才是我们下载的 codeLLDB 插件,VS code 会自动创建一个 launch.json

{
    // Use IntelliSense to learn about possible attributes.
    // Hover to view descriptions of existing attributes.
    // For more information, visit: https://go.microsoft.com/fwlink/?linkid=830387
    "version": "0.2.0",
    "configurations": [
        {
            "type": "lldb",
            "request": "launch",
            "name": "Debug",
            "program": "${workspaceFolder}/<your program>",
            "args": [],
            "cwd": "${workspaceFolder}"
        }
    ]
}

这里需要稍作修改,将 “program” 选项修改成与 tasks.json 的文件名一致,然后还需要加一个 preLaunchTask 的选项,将 tasks.json 的 label 名字粘贴过来,修改以后launch.json 内容如下:

{
    // Use IntelliSense to learn about possible attributes.
    // Hover to view descriptions of existing attributes.
    // For more information, visit: https://go.microsoft.com/fwlink/?linkid=830387
    "version": "0.2.0",
    "configurations": [
        {
            "type": "lldb",
            "request": "launch",
            "name": "Debug",
            "program": "${workspaceFolder}/${fileBasenameNoExtension}",
            "args": [],
            "cwd": "${workspaceFolder}",
            "preLaunchTask": "C/C++: clang++ 生成活动文件"
        }
    ]
}

运行调试

上述配置完成以后,编译项目(shift+command+B),在代码中设置断点,然后直接点击 F5,就可以正常断点运行调试了。
