python绘图的包大家应该不会陌生,但是,对图的常规设置不一定会知道(其实自己也是才知道的),比如:坐标轴的字体大小、颜色设置;标题的字体颜色大小设置;线的粗细、颜色;图片风格的设置等。了解这些常规设置必定会让图片更加美观。
下面就具体来说说matplotlib中有哪些常规设置。
我主要总结了这几个函数:
plt.style.use()函数;可以对图片的整体风格进行设置。可以通过plt.style.availabel知道一共有多少种主题。
1 2 3 4 5 | import matplotlib.pyplot as plt import numpy as np import pandas as pd import matplotlib as mpl print plt.style.availabel |
我们试用其中两个主题。

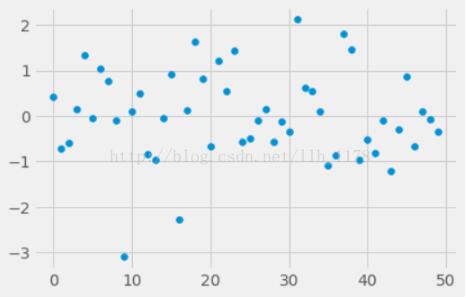

1 2 3 | plt.style.use( "fivethirtyeight" ) data = np.random.randn( 50 ) plt.scatter(range( 50 ), data) |

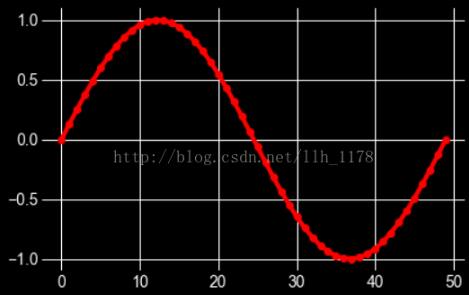

1 2 3 | with plt.style.context(( 'dark_background' )): plt.plot(np.sin(np.linspace( 0 , 2 * np.pi)), 'r-o' ) # "r-o"表示红色的点用线连接起来。 plt.show() |

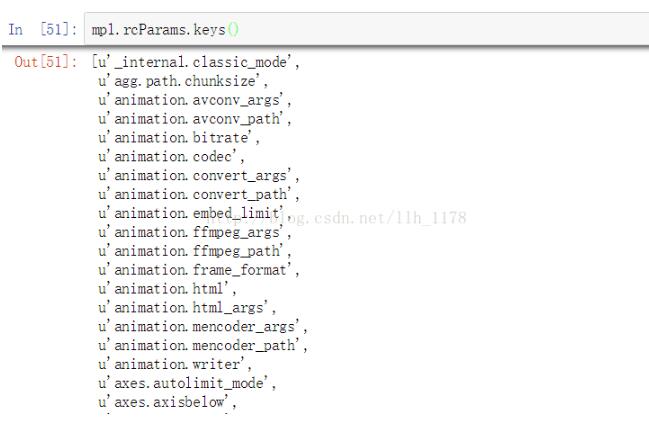

mpl.rcParams()函数;这个函数可以设置图片的坐标轴以及标题的字体大小、颜色、宽度等。同时,也可以用mpl.rcParams.keys()进行查看有哪些设置。
1 2 3 4 | mpl.rcParams[ 'xtick.labelsize' ] = 16 mpl.rcParams[ "ytick.color" ] = 'b' plt.plot(range( 50 ), data, 'g^' ) plt.show() |
这张图就通过rcParams()函数设置了y轴的字体颜色,x轴的字体大小。同时,将点的marker变成了三角形、颜色变为了绿色。

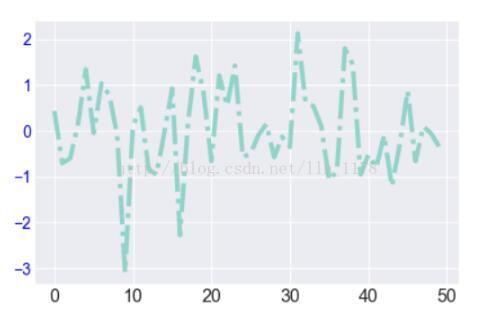

mpl.rc()函数;它可以用来设置线的粗细、风格、颜色等。
mpl.rc('lines', linewidth=4, color='r', linestyle='-.')
plt.plot(data)

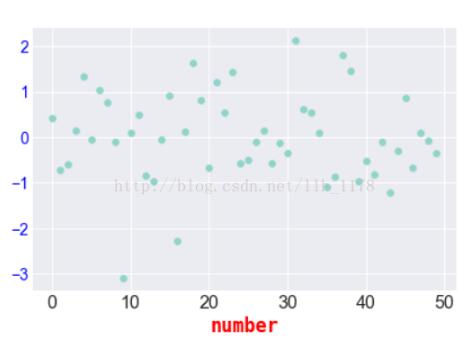

fontdict()函数;也可以来办同样的事情。
1 2 3 4 5 6 7 | font = { 'family' : 'monospace' , 'weight' : 'bold' , 'size' : 'larger' , 'color' : "r" } plt.scatter(range( 50 ), data) plt.xlabel( "number" , fontdict = font) |
font()字典中主要存在这么几类键:
font.family ;一共有5种设置: serif sans-serif cursive antasy monospace
font.style ;一种有3种设置:normal italic oblique
font.variant ;一共有2种设置:normal or small-caps
font.weight ;一共有4种设置:normal, bold, bolder, lighter
font.stretch ;一共有13种设置:
ultra-condensed, extra-condensed, condensed, semi-condensed, normal, semi-expanded, expanded, extra-expanded, ultra-expanded, wider, and narrower. font.size ;默认值是10pt
plt.setp()函数;也是可以设置线的粗细以及颜色,还可以设置坐标轴的方向,位置。
例如:
setp(lines, 'linewidth', 2, 'color', 'r')
借用帮助文档上的一个例子:
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 | import numpy as np import matplotlib.pyplot as plt data = { 'Barton LLC' : 109438.50 , 'Frami, Hills and Schmidt' : 103569.59 , 'Fritsch, Russel and Anderson' : 112214.71 , 'Jerde-Hilpert' : 112591.43 , 'Keeling LLC' : 100934.30 , 'Koepp Ltd' : 103660.54 , 'Kulas Inc' : 137351.96 , 'Trantow-Barrows' : 123381.38 , 'White-Trantow' : 135841.99 , 'Will LLC' : 104437.60 } group_data = list(data.values()) group_names = list(data.keys()) group_mean = np.mean(group_data) fig, ax = plt.subplots() ax.barh(group_names, group_data) labels = ax.get_xticklabels() plt.setp(labels, rotation = 45 , horizontalalignment = 'right' ) ax.set(xlim = [ - 10000 , 140000 ], xlabel = 'Total Revenue' , ylabel = 'Company' , title = 'Company Revenue' ) |

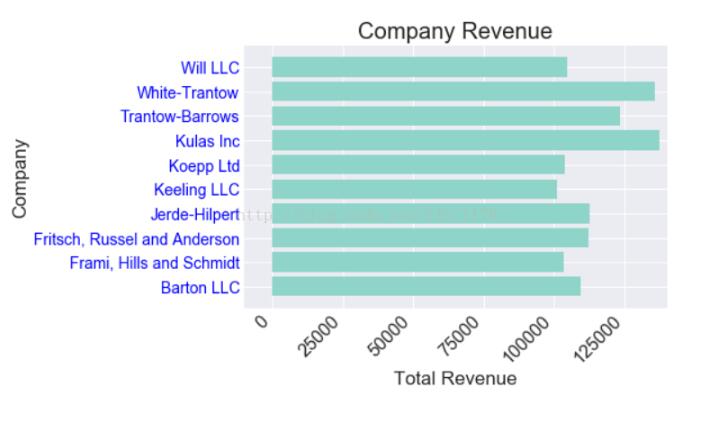

可以看到x轴坐标斜向45°旋转了,整个图片变得更加美观了。为了对数据更加一步分析,做下面操作:

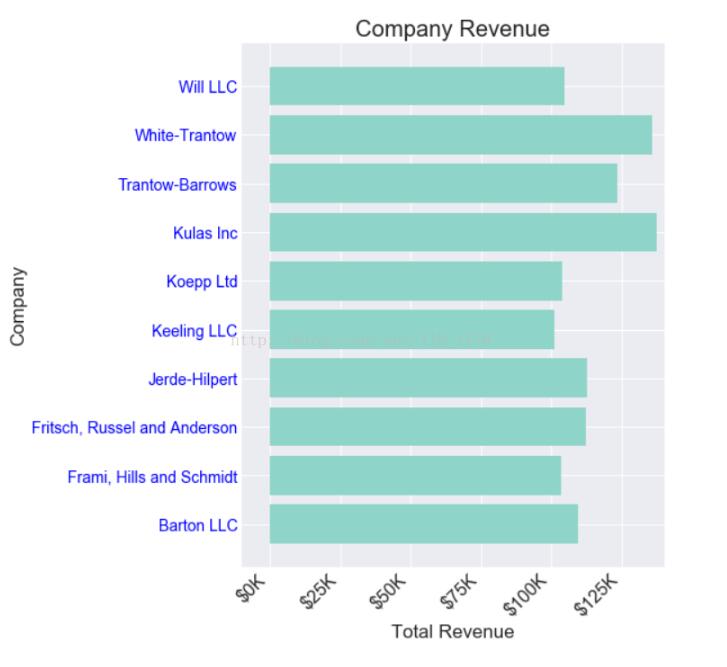

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 | def currency(x, pos): """The two args are the value and tick position""" if x > = 1e6 : s = '${:1.1f}M' .format(x * 1e - 6 ) else : s = '${:1.0f}K' .format(x * 1e - 3 ) return s formatter = FuncFormatter(currency) fig, ax = plt.subplots(figsize = ( 6 , 8 )) ax.barh(group_names, group_data) labels = ax.get_xticklabels() plt.setp(labels, rotation = 45 , horizontalalignment = 'right' ) ax.set(xlim = [ - 10000 , 140000 ], xlabel = 'Total Revenue' , ylabel = 'Company' , title = 'Company Revenue' ) ax.xaxis.set_major_formatter(formatter) fig, ax = plt.subplots(figsize = ( 8 , 8 )) ax.barh(group_names, group_data) labels = ax.get_xticklabels() plt.setp(labels, rotation = 45 , horizontalalignment = 'right' ) # 以所有收益的平均值画一条垂直线,看哪些公司是超越平均收益的 ax.axvline(group_mean, ls = '--' , color = 'r' ) # 标注新成立的公司 for group in [ 3 , 5 , 8 ]: ax.text( 145000 , group, "New Company" , fontsize = 10 , verticalalignment = "center" ) # 将标题移动一点,与图片保持一点距离。 ax.title.set(y = 1.05 ) ax.set(xlim = [ - 10000 , 140000 ], xlabel = 'Total Revenue' , ylabel = 'Company' , title = 'Company Revenue' ) ax.xaxis.set_major_formatter(formatter) ax.set_xticks([ 0 , 25e3 , 50e3 , 75e3 , 100e3 , 125e3 ]) plt.show() |
现在好了,可以直观的看出哪些公司是新成立得,同时哪些公司的收益是超越平均水平的。对之后的数据分析和统计都是有非常大的帮助的。
以上这篇python画图常规设置方式就是小编分享给大家的全部内容了,希望能给大家一个参考,也希望大家多多支持自学编程网。
