假设我们已经知道梯度法——最速下降法的原理。
现给出一个算例:

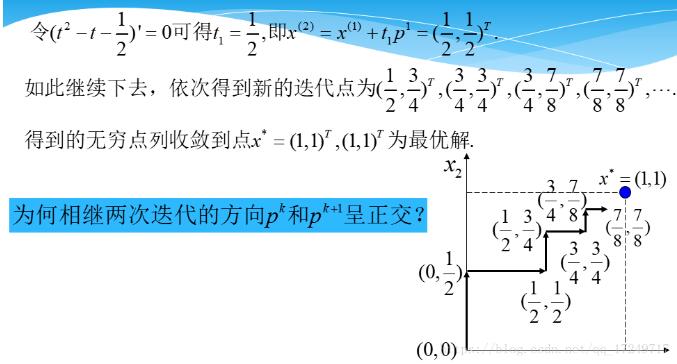

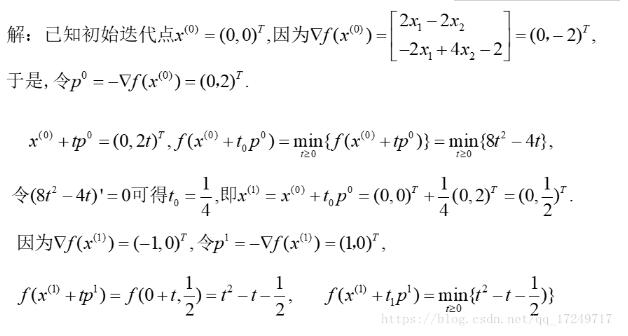

如果人工直接求解:
现给出Python求解过程:
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 | import numpy as np from sympy import * import math import matplotlib.pyplot as plt import mpl_toolkits.axisartist as axisartist # 定义符号 x1, x2, t = symbols( 'x1, x2, t' ) def func(): # 自定义一个函数 return pow(x1, 2 ) + 2 * pow(x2, 2 ) - 2 * x1 * x2 - 2 * x2 def grad(data): # 求梯度向量,data=[data1, data2] f = func() grad_vec = [diff(f, x1), diff(f, x2)] # 求偏导数,梯度向量 grad = [] for item in grad_vec: grad.append(item.subs(x1, data[ 0 ]).subs(x2, data[ 1 ])) return grad def grad_len(grad): # 梯度向量的模长 vec_len = math.sqrt(pow(grad[ 0 ], 2 ) + pow(grad[ 1 ], 2 )) return vec_len def zhudian(f): # 求得min(t)的驻点 t_diff = diff(f) t_min = solve(t_diff) return t_min def main(X0, theta): f = func() grad_vec = grad(X0) grad_length = grad_len(grad_vec) # 梯度向量的模长 k = 0 data_x = [ 0 ] data_y = [ 0 ] while grad_length > theta: # 迭代的终止条件 k + = 1 p = - np.array(grad_vec) # 迭代 X = np.array(X0) + t * p t_func = f.subs(x1, X[ 0 ]).subs(x2, X[ 1 ]) t_min = zhudian(t_func) X0 = np.array(X0) + t_min * p grad_vec = grad(X0) grad_length = grad_len(grad_vec) print ( 'grad_length' , grad_length) print ( '坐标' , X0[ 0 ], X0[ 1 ]) data_x.append(X0[ 0 ]) data_y.append(X0[ 1 ]) print (k) # 绘图 fig = plt.figure() ax = axisartist.Subplot(fig, 111 ) fig.add_axes(ax) ax.axis[ "bottom" ].set_axisline_style( "-|>" , size = 1.5 ) ax.axis[ "left" ].set_axisline_style( "->" , size = 1.5 ) ax.axis[ "top" ].set_visible( False ) ax.axis[ "right" ].set_visible( False ) plt.title(r '$Gradient \ method - steepest \ descent \ method$' ) plt.plot(data_x, data_y, label = r '$f(x_1,x_2)=x_1^2+2 \cdot x_2^2-2 \cdot x_1 \cdot x_2-2 \cdot x_2$' ) plt.legend() plt.scatter( 1 , 1 , marker = ( 5 , 1 ), c = 5 , s = 1000 ) plt.grid() plt.xlabel(r '$x_1$' , fontsize = 20 ) plt.ylabel(r '$x_2$' , fontsize = 20 ) plt.show() if __name__ = = '__main__' : # 给定初始迭代点和阈值 main([ 0 , 0 ], 0.00001 ) |

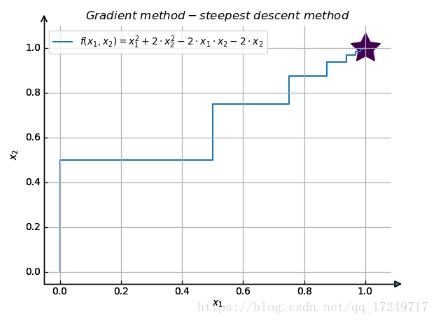

最终结果图如下所示:
以上就是本文的全部内容,希望对大家的学习有所帮助,也希望大家多多支持自学编程网。
