keras处理欠拟合和过拟合的实例讲解

import tensorflow.keras.layers as layers
baseline_model = keras.Sequential(
[
 layers.Dense(16, activation='relu', input_shape=(NUM_WORDS,)),
 layers.Dense(16, activation='relu'),
 layers.Dense(1, activation='sigmoid')
]
)
baseline_model.compile(optimizer='adam',
      loss='binary_crossentropy',
      metrics=['accuracy', 'binary_crossentropy'])
baseline_model.summary()

baseline_history = baseline_model.fit(train_data, train_labels,
          epochs=20, batch_size=512,
          validation_data=(test_data, test_labels),
          verbose=2)

small_model = keras.Sequential(
[
 layers.Dense(4, activation='relu', input_shape=(NUM_WORDS,)),
 layers.Dense(4, activation='relu'),
 layers.Dense(1, activation='sigmoid')
]
)
small_model.compile(optimizer='adam',
      loss='binary_crossentropy',
      metrics=['accuracy', 'binary_crossentropy'])
small_model.summary()
small_history = small_model.fit(train_data, train_labels,
          epochs=20, batch_size=512,
          validation_data=(test_data, test_labels),
          verbose=2)

big_model = keras.Sequential(
[
 layers.Dense(512, activation='relu', input_shape=(NUM_WORDS,)),
 layers.Dense(512, activation='relu'),
 layers.Dense(1, activation='sigmoid')
]
)
big_model.compile(optimizer='adam',
      loss='binary_crossentropy',
      metrics=['accuracy', 'binary_crossentropy'])
big_model.summary()
big_history = big_model.fit(train_data, train_labels,
          epochs=20, batch_size=512,
          validation_data=(test_data, test_labels),
          verbose=2)

def plot_history(histories, key='binary_crossentropy'):
 plt.figure(figsize=(16,10))

 for name, history in histories:
 val = plt.plot(history.epoch, history.history['val_'+key],
     '--', label=name.title()+' Val')
 plt.plot(history.epoch, history.history[key], color=val[0].get_color(),
    label=name.title()+' Train')

 plt.xlabel('Epochs')
 plt.ylabel(key.replace('_',' ').title())
 plt.legend()

 plt.xlim([0,max(history.epoch)])


plot_history([('baseline', baseline_history),
    ('small', small_history),
    ('big', big_history)])

l2_model = keras.Sequential(
[
 layers.Dense(16, kernel_regularizer=keras.regularizers.l2(0.001),
     activation='relu', input_shape=(NUM_WORDS,)),
 layers.Dense(16, kernel_regularizer=keras.regularizers.l2(0.001),
     activation='relu'),
 layers.Dense(1, activation='sigmoid')
]
)
l2_model.compile(optimizer='adam',
      loss='binary_crossentropy',
      metrics=['accuracy', 'binary_crossentropy'])
l2_model.summary()
l2_history = l2_model.fit(train_data, train_labels,
          epochs=20, batch_size=512,
          validation_data=(test_data, test_labels),
          verbose=2)
plot_history([('baseline', baseline_history),
    ('l2', l2_history)])

dpt_model = keras.Sequential(
[
 layers.Dense(16, activation='relu', input_shape=(NUM_WORDS,)),
 layers.Dropout(0.5),
 layers.Dense(16, activation='relu'),
 layers.Dropout(0.5),
 layers.Dense(1, activation='sigmoid')
]
)
dpt_model.compile(optimizer='adam',
      loss='binary_crossentropy',
      metrics=['accuracy', 'binary_crossentropy'])
dpt_model.summary()
dpt_history = dpt_model.fit(train_data, train_labels,
          epochs=20, batch_size=512,
          validation_data=(test_data, test_labels),
          verbose=2)

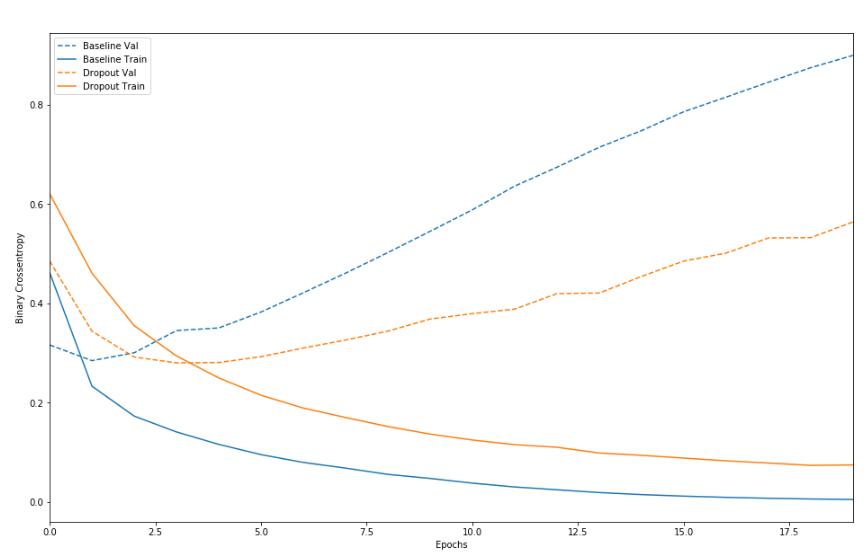

plot_history([('baseline', baseline_history),
    ('dropout', dpt_history)])

model = keras.Sequential([
 layers.Dense(64, activation='relu', input_shape=(784,)),
 layers.BatchNormalization(),
 layers.Dense(64, activation='relu'),
 layers.BatchNormalization(),
 layers.Dense(64, activation='relu'),
 layers.BatchNormalization(),
 layers.Dense(10, activation='softmax')
])
model.compile(optimizer=keras.optimizers.SGD(),
    loss=keras.losses.SparseCategoricalCrossentropy(),
    metrics=['accuracy'])
model.summary()
history = model.fit(x_train, y_train, batch_size=256, epochs=100, validation_split=0.3, verbose=0)
plt.plot(history.history['accuracy'])
plt.plot(history.history['val_accuracy'])
plt.legend(['training', 'validation'], loc='upper left')
plt.show()
