1 参数选择 径向畸变3个参数还是两个参数
默认两个参数

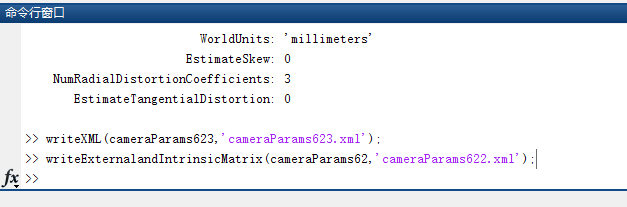

如果是三个参数
2准备转化生成结果
二参数的转化代码
writeExternalandIntrinsicMatrix(cameraParams62,'cameraParams622.xml');
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 | function writeExternalandIntrinsicMatrix(cameraParams,file) %writeXML(cameraParams,file) docNode = com.mathworks.xml.XMLUtils.createDocument( 'opencv_storage' ); docRootNode = docNode.getDocumentElement; IntrinsicMatrix = ((cameraParams.IntrinsicMatrix)'); TangentialDistortion =cameraParams.TangentialDistortion; %Distortion = [cameraParams.RadialDistortion(1:2),TangentialDistortion, cameraParams.RadialDistortion(3)]; Distortion = [cameraParams.RadialDistortion(1:2),TangentialDistortion,0]; FocalLength = cameraParams.FocalLength; camera_matrix = docNode.createElement( 'IntrinsicCam' ); %锟斤拷锟斤拷mat锟节碉拷 camera_matrix.setAttribute( 'type_id' , 'opencv-matrix' ); %锟斤拷锟斤拷mat锟节碉拷锟斤拷锟斤拷 rows = docNode.createElement( 'rows' ); %锟斤拷锟斤拷锟叫节碉拷 rows.appendChild(docNode.createTextNode(sprintf( '%d' ,3))); %锟斤拷锟斤拷锟侥憋拷锟节点,锟斤拷锟斤拷为锟叫碉拷锟接节碉拷 camera_matrix.appendChild(rows); %锟斤拷锟叫节碉拷锟斤拷为mat锟接节碉拷 cols = docNode.createElement( 'cols' ); cols.appendChild(docNode.createTextNode(sprintf( '%d' ,3))); camera_matrix.appendChild(cols); dt = docNode.createElement( 'dt' ); dt.appendChild(docNode.createTextNode( 'd' )); camera_matrix.appendChild(dt); data = docNode.createElement( 'data' ); for i=1:3 for j=1:3 data.appendChild(docNode.createTextNode(sprintf( '%.16f ' ,IntrinsicMatrix(i,j)))); end data.appendChild(docNode.createTextNode(sprintf( '\n' ))); end camera_matrix.appendChild(data); docRootNode.appendChild(camera_matrix); distortion = docNode.createElement( 'DistortionCam' ); distortion.setAttribute( 'type_id' , 'opencv-matrix' ); rows = docNode.createElement( 'rows' ); rows.appendChild(docNode.createTextNode(sprintf( '%d' ,1))); distortion.appendChild(rows); cols = docNode.createElement( 'cols' ); cols.appendChild(docNode.createTextNode(sprintf( '%d' ,5))); distortion.appendChild(cols); dt = docNode.createElement( 'dt' ); dt.appendChild(docNode.createTextNode( 'd' )); distortion.appendChild(dt); data = docNode.createElement( 'data' ); for i=1:5 data.appendChild(docNode.createTextNode(sprintf( '%.16f ' ,Distortion(i)))); end distortion.appendChild(data); docRootNode.appendChild(distortion); focalLength = docNode.createElement( 'FocalLength' ); focalLength.setAttribute( 'type_id' , 'opencv-matrix' ); rows = docNode.createElement( 'rows' ); rows.appendChild(docNode.createTextNode(sprintf( '%d' ,1))); focalLength.appendChild(rows); cols = docNode.createElement( 'cols' ); cols.appendChild(docNode.createTextNode(sprintf( '%d' ,1))); focalLength.appendChild(cols); dt = docNode.createElement( 'dt' ); dt.appendChild(docNode.createTextNode( 'd' )); focalLength.appendChild(dt); data = docNode.createElement( 'data' ); for i=1:1 data.appendChild(docNode.createTextNode(sprintf( '%.16f ' ,FocalLength(i)))); end focalLength.appendChild(data); docRootNode.appendChild(focalLength); % distortion = docNode.createElement( 'Pmatrix' ); % distortion.setAttribute( 'type_id' , 'opencv-matrix' ); % rows = docNode.createElement( 'rows' ); % rows.appendChild(docNode.createTextNode(sprintf( '%d' ,1))); % distortion.appendChild(rows); % % cols = docNode.createElement( 'cols' ); % cols.appendChild(docNode.createTextNode(sprintf( '%d' ,4))); % distortion.appendChild(cols); % % dt = docNode.createElement( 'dt' ); % dt.appendChild(docNode.createTextNode( 'd' )); % distortion.appendChild(dt); % data = docNode.createElement( 'data' ); % for i=1:4 % data.appendChild(docNode.createTextNode(sprintf( '%.16f ' ,Distortion(i)))); % end % distortion.appendChild(data); % docRootNode.appendChild(distortion); xmlFileName = file; xmlwrite(xmlFileName,docNode); end |
二参数的保存结果
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 | <? xml version = "1.0" encoding = "utf-8" ?> < opencv_storage > < IntrinsicCam type_id = "opencv-matrix" > < rows >3</ rows > < cols >3</ cols > < dt >d</ dt > < data >1558.5669994681102253 0.0000000000000000 821.5211092415044050 0.0000000000000000 1557.8077127262038175 460.9748043702705331 0.0000000000000000 0.0000000000000000 1.0000000000000000 </ data > </ IntrinsicCam > < DistortionCam type_id = "opencv-matrix" > < rows >1</ rows > < cols >5</ cols > < dt >d</ dt > < data >-0.1873006682834817 0.0171597428423078 0.0000000000000000 0.0000000000000000 0.0000000000000000 </ data > </ DistortionCam > < FocalLength type_id = "opencv-matrix" > < rows >1</ rows > < cols >1</ cols > < dt >d</ dt > < data >1558.5669994681102253 </ data > </ FocalLength > </ opencv_storage > |
三参数的转化代码
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 | function writeXML(cameraParams,file) %writeXML(cameraParams,file) %功能:将相机校正的参数保存为xml文件 %输入: %cameraParams:相机校正数据结构 %file:xml文件名 %说明在xml文件是由一层层的节点组成的。 %首先创建父节点 fatherNode, %然后创建子节点 childNode=docNode.createElement(childNodeName), %再将子节点添加到父节点 fatherNode.appendChild(childNode) docNode = com.mathworks.xml.XMLUtils.createDocument( 'opencv_storage' ); %创建xml文件对象 docRootNode = docNode.getDocumentElement; %获取根节点 IntrinsicMatrix = (cameraParams.IntrinsicMatrix)'; %相机内参矩阵 RadialDistortion = cameraParams.RadialDistortion; %相机径向畸变参数向量1*3 TangentialDistortion =cameraParams.TangentialDistortion; %相机切向畸变向量1*2 Distortion = [RadialDistortion(1:2),TangentialDistortion,RadialDistortion(3)]; %构成opencv中的畸变系数向量[k1,k2,p1,p2,k3] camera_matrix = docNode.createElement( 'camera-matrix' ); %创建mat节点 camera_matrix.setAttribute( 'type_id' , 'opencv-matrix' ); %设置mat节点属性 rows = docNode.createElement( 'rows' ); %创建行节点 rows.appendChild(docNode.createTextNode(sprintf( '%d' ,3))); %创建文本节点,并作为行的子节点 camera_matrix.appendChild(rows); %将行节点作为mat子节点 cols = docNode.createElement( 'cols' ); cols.appendChild(docNode.createTextNode(sprintf( '%d' ,3))); camera_matrix.appendChild(cols); dt = docNode.createElement( 'dt' ); dt.appendChild(docNode.createTextNode( 'd' )); camera_matrix.appendChild(dt); data = docNode.createElement( 'data' ); for i=1:3 for j=1:3 data.appendChild(docNode.createTextNode(sprintf( '%.16f ' ,IntrinsicMatrix(i,j)))); end data.appendChild(docNode.createTextNode(sprintf( '\n' ))); end camera_matrix.appendChild(data); docRootNode.appendChild(camera_matrix); distortion = docNode.createElement( 'distortion' ); distortion.setAttribute( 'type_id' , 'opencv-matrix' ); rows = docNode.createElement( 'rows' ); rows.appendChild(docNode.createTextNode(sprintf( '%d' ,5))); distortion.appendChild(rows); cols = docNode.createElement( 'cols' ); cols.appendChild(docNode.createTextNode(sprintf( '%d' ,1))); distortion.appendChild(cols); dt = docNode.createElement( 'dt' ); dt.appendChild(docNode.createTextNode( 'd' )); distortion.appendChild(dt); data = docNode.createElement( 'data' ); for i=1:5 data.appendChild(docNode.createTextNode(sprintf( '%.16f ' ,Distortion(i)))); end distortion.appendChild(data); docRootNode.appendChild(distortion); xmlFileName = file; xmlwrite(xmlFileName,docNode); end |
三参数的转化保存结果
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 | <? xml version = "1.0" encoding = "utf-8" ?> < opencv_storage > < camera-matrix type_id = "opencv-matrix" > < rows >3</ rows > < cols >3</ cols > < dt >d</ dt > < data >1558.6100144620272658 0.0000000000000000 821.6453269280840459 0.0000000000000000 1557.8120286433929778 460.8682816753835141 0.0000000000000000 0.0000000000000000 1.0000000000000000 </ data > </ camera-matrix > < distortion type_id = "opencv-matrix" > < rows >5</ rows > < cols >1</ cols > < dt >d</ dt > < data >-0.1840928673709393 -0.0328189923757994 0.0000000000000000 0.0000000000000000 0.2205440258401062 </ data > </ distortion > </ opencv_storage > |
以上就是本文的全部内容,希望对大家的学习有所帮助,也希望大家多多支持自学编程网。
