Docker可视化管理工具DockerUI的使用

1、DockerUI介绍

           DockerUI基于Docker API,提供等同Docker命令行的大部分功能,支持container管理,image管理。

DockerUI展示

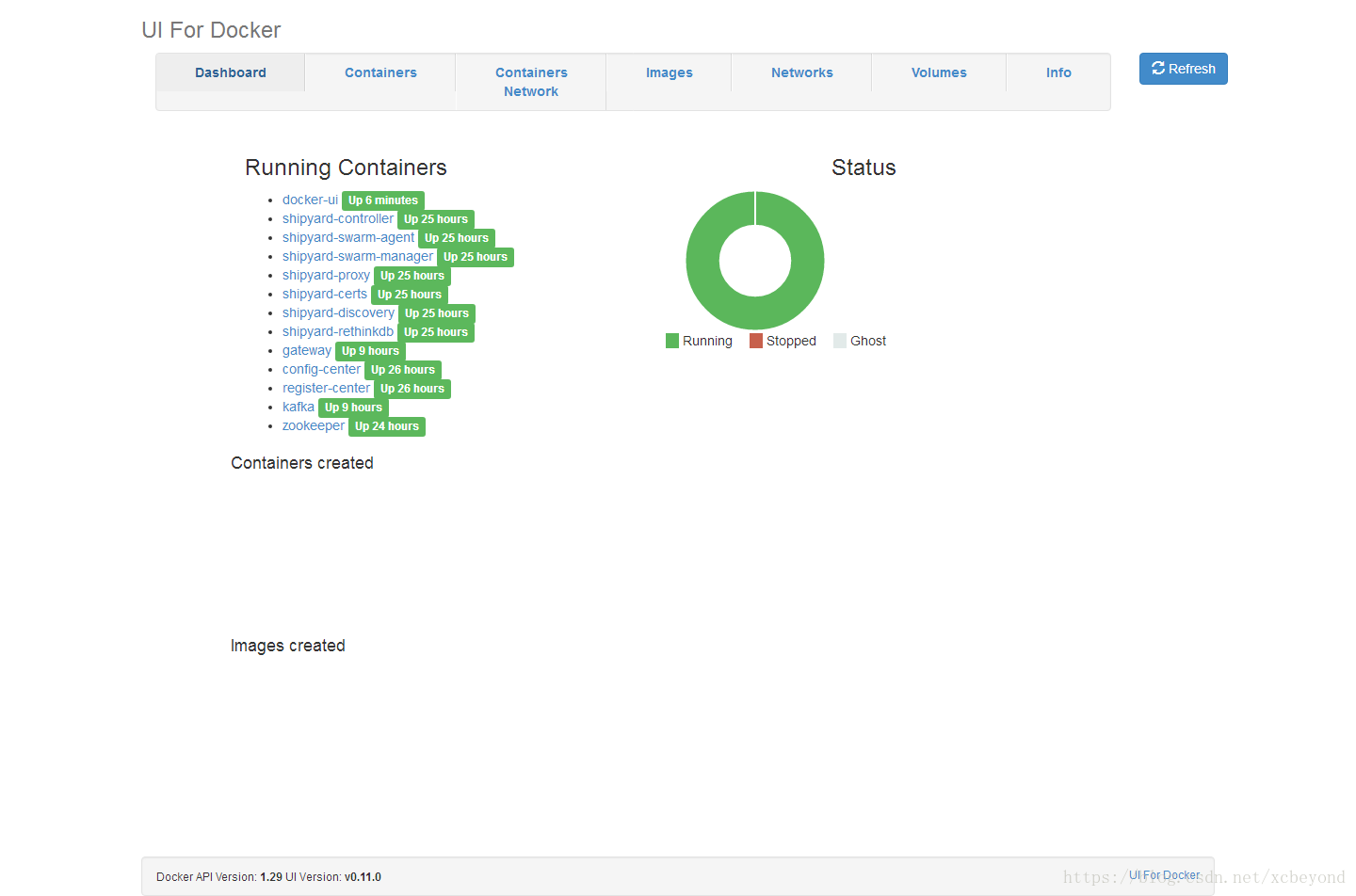

首页

        展示出了目前容器的运行列表,容器、镜像创建时间及数量。

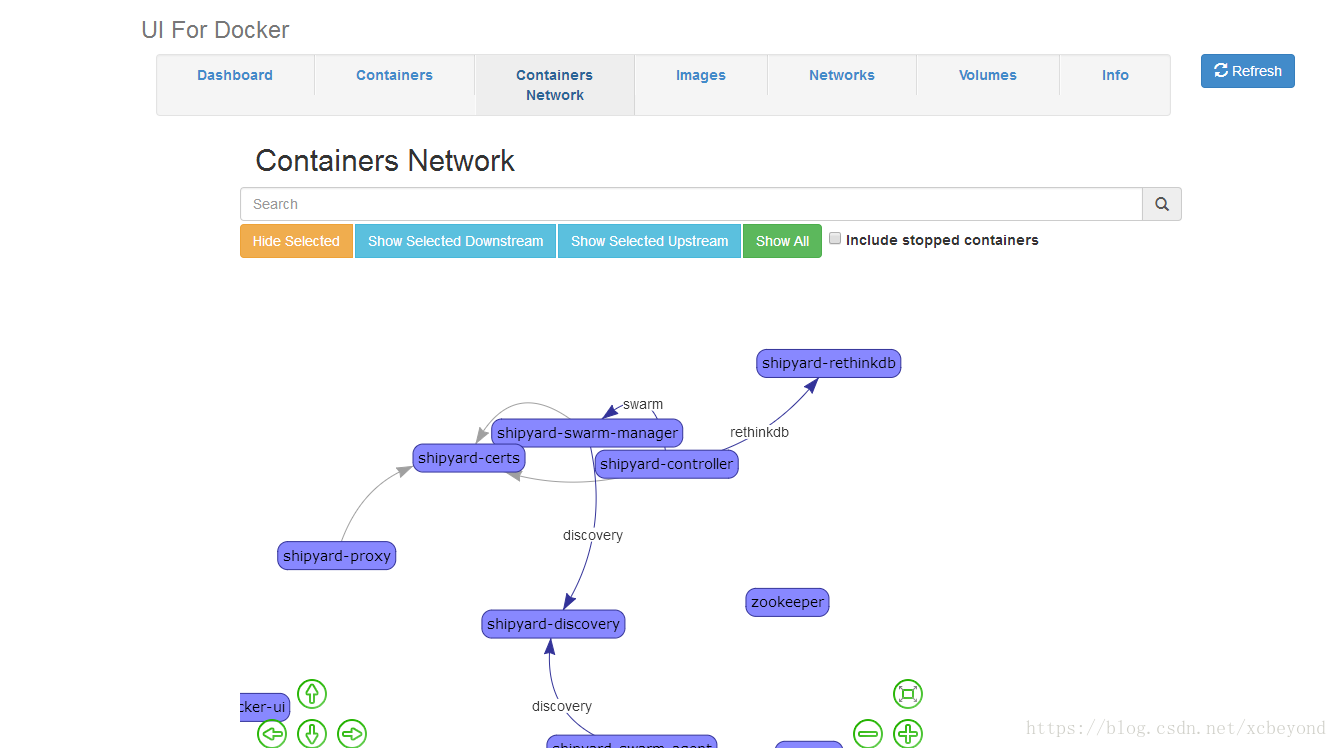

各容器间网络关联情况

看起来比较炫,但感觉没啥实用性。

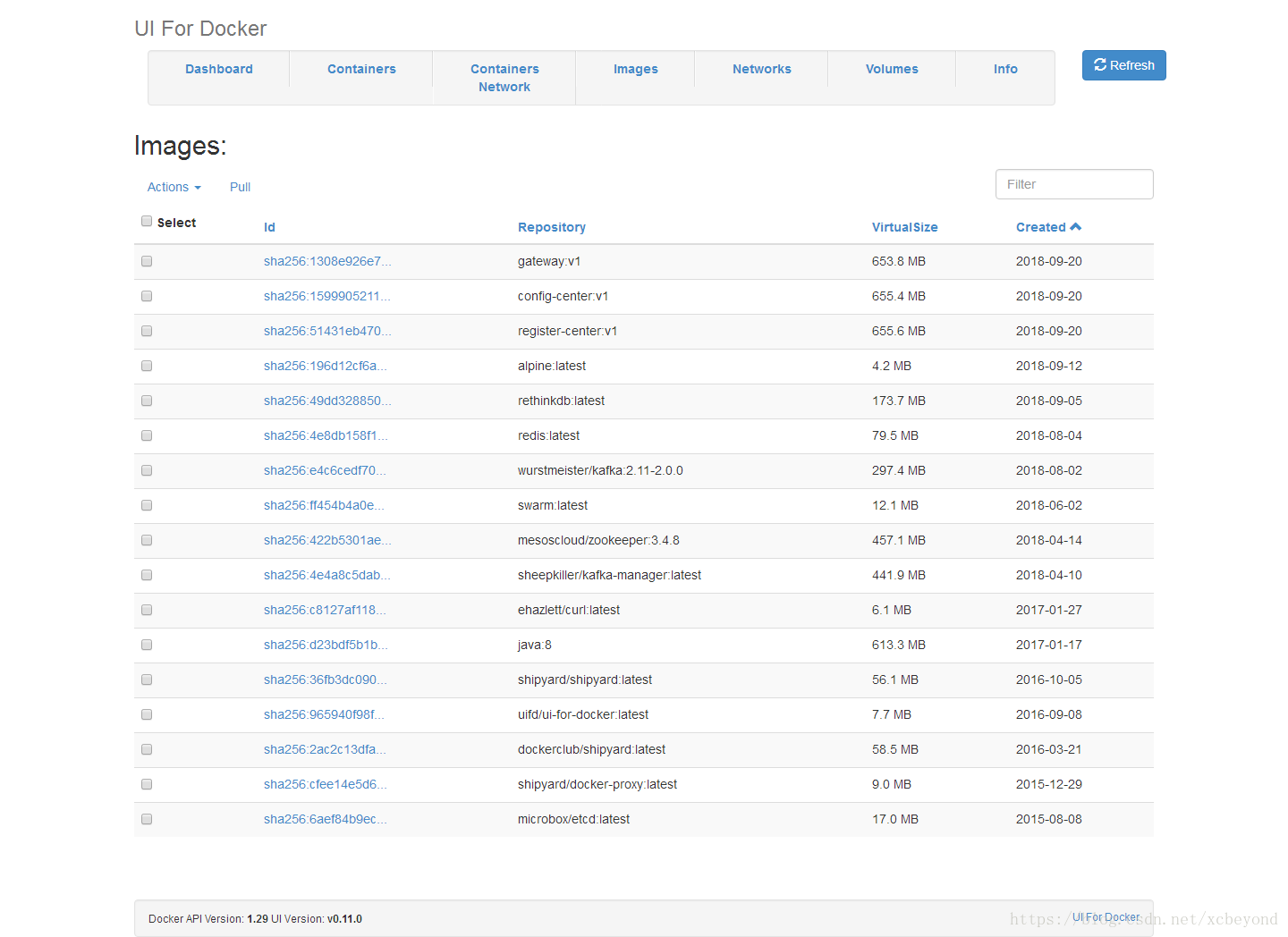

镜像

镜像列表,可删除、上传新的镜像。

2、DockerUI安装

采用docker方式安装。

(1)镜像下载

[docker@docker ~]$ docker search docker-ui
NAME              DESCRIPTION                   STARS   OFFICIAL  AUTOMATED
alpine             A minimal Docker image based on Alpine Lin...  4286   [OK]
jenkins            Official Jenkins Docker image          3827   [OK]
registry            The Docker Registry 2.0 implementation for...  2209   [OK]
swarm             Swarm: a Docker-native clustering system.    906    [OK]
docker             Docker in Docker!                826    [OK]
fedora             Official Docker builds of Fedora        709    [OK]
hello-world          Hello World! (an example of minimal Docker...  655    [OK]
atcol/docker-registry-ui    A web UI for easy private/local Docker Reg...  110         [OK]
swaggerapi/swagger-ui     A simple docker container for hosting swag...  109
uifd/ui-for-docker       A web interface for Docker, formerly known...  89          [OK]
docker-dev           Docker is an open source project to pack, ...  80    [OK]
francescou/docker-compose-ui  web interface for Docker Compose        63          [OK]
schickling/swagger-ui     Swagger UI 2.2.8 with API_URL, API_KEY and...  49          [OK]
landoop/kafka-topics-ui    UI for viewing Kafka Topics config and dat...  21          [OK]
jippi/hashi-ui         A user interface for the HashiCorp Nomad s...  15
joxit/docker-registry-ui    Docker registry v2 web User Interface      13          [OK]
landoop/schema-registry-ui   UI for Confluent's Schema Registry       7          [OK]
purpleworks/fleet-ui      Web based UI for fleet             6
screwdrivercd/ui        Screwdriver UI                 6          [OK]
dtagdevsec/ui-for-docker    ui-for-docker                  6          [OK]
mlabouardy/dockerswarm-ui   DockerSwarm UI is 100% compatible with the...  5
quiq/docker-registry-ui    Docker Registry UI               2
hsldevcom/digitransit-ui    Digitransit-ui is a mobile friendly user i...  1
apicurio/apicurio-studio-ui  The UI component of the Apicurio Studio ap...  0
igeolise/docker-uikit     uikit                      0          [OK]
[docker@docker ~]$ docker pull uifd/ui-for-docker
Using default tag: latest
latest: Pulling from uifd/ui-for-docker
841194d080c8: Pull complete
Digest: sha256:fe371ff5a69549269b24073a5ab1244dd4c0b834cbadf244870572150b1cb749
Status: Downloaded newer image for uifd/ui-for-docker:latest

(2)镜像运行

[docker@docker ~]$ docker run -it -d --name docker-ui -p 9000:9000 -v /var/run/docker.sock:/var/run/docker.sock docker.io/uifd/ui-for-docker
0f9a7b32e17dc0314b4aa9484321d123cc7212a90b3c0246eaf5b0d299211d70

访问:http://192.168.1.200:9000,进入dockerUI界面。

到此这篇关于Docker可视化管理工具DockerUI的使用的文章就介绍到这了,更多相关Docker可视化管理工具内容请搜索自学编程网以前的文章或继续浏览下面的相关文章希望大家以后多多支持自学编程网!
