ScenTaskTestApplication.java
package com.test; import org.springframework.boot.SpringApplication; import org.springframework.boot.autoconfigure.SpringBootApplication; import org.springframework.cloud.openfeign.EnableFeignClients; /** * @author scen * @version 2018年9月27日 上午11:51:04 */ @EnableFeignClients @SpringBootApplication public class ScenTaskTestApplication { public static void main(String[] args) { SpringApplication.run(ScenTaskTestApplication.class, args); } }
application.properties
spring.application.name=scen-task-test server.port=9009 feign.hystrix.enabled=true #熔断器失败的个数==进入熔断器的请求达到1000时服务降级(之后的请求直接进入熔断器) hystrix.command.default.circuitBreaker.requestVolumeThreshold=1000 #回退最大线程数 hystrix.command.default.fallback.isolation.semaphore.maxConcurrentRequests=50 #核心线程池数量 hystrix.threadpool.default.coreSize=130 #请求处理的超时时间 hystrix.command.default.execution.isolation.thread.timeoutInMilliseconds=100000 ribbon.ReadTimeout=120000 #请求连接的超时时间 ribbon.ConnectTimeout=130000 eureka.instance.instance-id=${spring.application.name}:${spring.application.instance_id:${server.port}} eureka.instance.preferIpAddress=true eureka.client.service-url.defaultZone=http://127.0.0.1:9000/eureka logging.level.com.test.user.service=debug logging.level.org.springframework.boot=debug logging.level.custom=info
AsyncConfig.java
package com.test; import org.springframework.context.annotation.Configuration; import org.springframework.scheduling.annotation.AsyncConfigurer; import org.springframework.scheduling.annotation.EnableAsync; import org.springframework.scheduling.concurrent.ThreadPoolTaskExecutor; import java.util.concurrent.Executor; /** * springboot异步线程池配置 * @author Scen * @date 2018/11/7 18:28 */ @Configuration @EnableAsync public class AsyncConfig implements AsyncConfigurer { @Override public Executor getAsyncExecutor() { //定义线程池 ThreadPoolTaskExecutor taskExecutor = new ThreadPoolTaskExecutor(); //核心线程数 taskExecutor.setCorePoolSize(20); //线程池最大线程数 taskExecutor.setMaxPoolSize(100); //线程队列最大线程数 taskExecutor.setQueueCapacity(10); //初始化 taskExecutor.initialize(); return taskExecutor; } }
DoTaskClass.java
package com.test; import com.test.pojo.User; import com.test.pojo.UserEducation; import com.test.user.service.UserService; import org.springframework.beans.factory.annotation.Autowired; import org.springframework.scheduling.annotation.Async; import org.springframework.stereotype.Component; import java.util.List; /** * 任务类 定义异步工作任务 * @author Scen * @date 2018/11/7 18:40 */ @Component public class DoTaskClass { /** * 一个feign的客户端 */ private final UserService userService; @Autowired public DoTaskClass(UserService userService) { this.userService = userService; } /** * 核心任务 * * @param uid */ @Async public void dotask(String uid) { /** * 模拟复杂工作业务(109个线程同时通过feign请求微服务提供者) */ { List<UserEducation> userEducationByUid = userService.findUserEducationByUid(uid); List<String> blackList = userService.getBlackList(); String userSkilled = userService.getUserSkilled(uid); String userFollow = userService.getUserFollow(uid); User userById = userService.getUserById(uid); List<String> followList = userService.getFollowList(uid); int userActivityScore = userService.getUserActivityScore(uid); } // 打印线程名称分辨是否为多线程操作 System.out.println(Thread.currentThread().getName() + "===任务" + uid + "执行完成==="); } }
TestController.java
package com.test; import com.test.pojo.User; import com.test.user.service.UserService; import org.springframework.beans.factory.annotation.Autowired; import org.springframework.web.bind.annotation.RequestMapping; import org.springframework.web.bind.annotation.RestController; import java.util.List; /** * 测试案例 * @author Scen * @date 2018/11/7 18:10 */ @RestController public class TestController { /** * 此处仅用此feign客户端请求微服务获取核心工作所需参数 */ private final UserService userService; /** * 核心工作异步算法 */ private final DoTaskClass doTaskClass; @Autowired public TestController(DoTaskClass doTaskClass, UserService userService) { this.doTaskClass = doTaskClass; this.userService = userService; } /** * 手动触发工作 * @throws InterruptedException */ @RequestMapping("/test") public void task() throws InterruptedException { /* 取到1000个要执行任务的必备参数 */ List<User> userList = userService.findAllLite(1, 1000); for (int i = 0; i < userList.size(); i++) { try { // 异步线程开始工作 doTaskClass.dotask(userList.get(i).getId()); } catch (Exception e) { /* 若并发线程数达到MaxPoolSize+QueueCapacity=110(参考AsyncConfig配置)会进入catch代码块 i--休眠3秒后重试(尝试进入线程队列:当且仅当109个线程有一个或多个线程完成异步任务时重试成功) */ i--; Thread.sleep(3000*3); } System.out.println(i); } } }
相关线程池、超时时间等数量和大小按实际业务配置
补充:SpringCloud关于@FeignClient和Hystrix集成对http线程池监控问题
@FeignClient可以作为Http代理访问其他微服务节点,可以用apache的httpclient替换@FeignClient原生的URLConnection请求方式,以达到让http请求走Http线程池的目的。
而@FeignClient和hystrix集成之后,在hystrix dashboard上可以监控到 @FeignClient 中接口调用情况和 @FeignClient 中httpclient中线程池使用状况。
下面是demo的示例:
1、@FeignClient的接口代码如下:
@FeignClient(value="service-A", fallback=ServiceClientHystrix.class) public interface ServiceClient { @RequestMapping(method = RequestMethod.GET, value = "/add/{id}") String add(@PathVariable("id") Integer id); }
2、ServiceClientHystrix.java
@Component public class ServiceClientHystrix implements ServiceClient{ @Override public String add(Integer id) { return "add value from ServiceClientHystrix"; } }
3、关于@FeignClient和hystrix
集成后,Http线程池配置如下:
hystrix.threadpool.服务实例ID.参数
例如设置httpclient的线程池最大线程数量
hystrix.threadpool.service-A.coreSize=20//默认是hystrix.threadpool.default.coreSize = 10 hystrix.threadpool.service-A.maximumSize=20//默认是hystrix.threadpool.default.maximumSize = 10

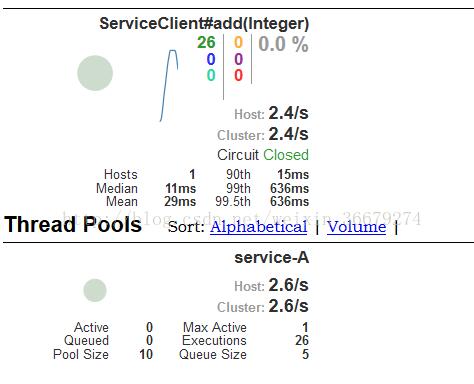

启动服务后用测试用例连续调用接口测试,用hystrix dashboard
监控得到下图监控效果:
去掉hystrix.threadpool.服务实例ID.参数配置后,再次用测试用例调用接口得到监控如下图:
PoolSize的大小取决于hystrix.threadpool.服务实例ID.coreSize大小设置
以上为个人经验,希望能给大家一个参考,也希望大家多多支持自学编程网。如有错误或未考虑完全的地方,望不吝赐教。
