使用springboot整合mybatis-plus实现数据库的增删查改示例

1、准备数据库中的表及表中的数据

/*
SQLyog Ultimate v12.09 (64 bit)
MySQL - 5.6.11 : Database - mp

*********************************************************************

*/


/*!40101 SET NAMES utf8 */;

/*!40101 SET SQL_MODE=''*/;

/*!40014 SET @OLD_UNIQUE_CHECKS=@@UNIQUE_CHECKS, UNIQUE_CHECKS=0 */;
/*!40014 SET @OLD_FOREIGN_KEY_CHECKS=@@FOREIGN_KEY_CHECKS, FOREIGN_KEY_CHECKS=0 */;
/*!40101 SET @OLD_SQL_MODE=@@SQL_MODE, SQL_MODE='NO_AUTO_VALUE_ON_ZERO' */;
/*!40111 SET @OLD_SQL_NOTES=@@SQL_NOTES, SQL_NOTES=0 */;
CREATE DATABASE /*!32312 IF NOT EXISTS*/`mp` /*!40100 DEFAULT CHARACTER SET utf8 */;

USE `mp`;

/*Table structure for table `tbl_employee` */

DROP TABLE IF EXISTS `tbl_employee`;

CREATE TABLE `tbl_employee` (
  `id` int(11) NOT NULL AUTO_INCREMENT,
  `last_name` varchar(50) DEFAULT NULL,
  `email` varchar(50) DEFAULT NULL,
  `gender` char(1) DEFAULT NULL,
  `age` int(11) DEFAULT NULL,
  `version` int(11) DEFAULT NULL,
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=24 DEFAULT CHARSET=utf8;

/*Data for the table `tbl_employee` */

insert  into `tbl_employee`(`id`,`last_name`,`email`,`gender`,`age`,`version`) values (1,'Tom','tom@zou.com','1',22,1),(2,'Jerry','jerry@zou.com','0',25,1),(3,'Black','black@zou.com','1',30,1),(4,'White','white@zou.com','0',35,1),(14,'小邹','com@hq.cn','0',19,1),(18,'jack','mp@zou.com','1',22,1),(22,'abc','123@qq.com','1',23,2);

/*!40101 SET SQL_MODE=@OLD_SQL_MODE */;
/*!40014 SET FOREIGN_KEY_CHECKS=@OLD_FOREIGN_KEY_CHECKS */;
/*!40014 SET UNIQUE_CHECKS=@OLD_UNIQUE_CHECKS */;
/*!40111 SET SQL_NOTES=@OLD_SQL_NOTES */;

2、初始化一个springboot项目

如何初始化一个springboot项目？
点击https://blog.csdn.net/Zou_05/article/details/115869941

注：勾选Lombok插件，简化开发

在这里插入图片描述

3、在pom.xml中加入mybatis-plus及mysql数据库的依赖

<!--mybatis-plus相关依赖-->
        <dependency>
            <groupId>com.baomidou</groupId>
            <artifactId>mybatis-plus-boot-starter</artifactId>
            <version>3.4.2</version>
        </dependency>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>6.0.5</version>
        </dependency>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid</artifactId>
            <version>1.1.10</version>
        </dependency>

4、将application.properties文件修改为application.yml，并添加mysql数据库的连接信息（mp为我的数据库名）

server:
  port: 8081
  servlet:
    context-path: /
spring:
  datasource:
    username: root
    password: 123456
    url: jdbc:mysql://localhost:3306/mp?useUnicode=true&characterEncoding=utf-8&useSSL=true&serverTimezone=UTC
    type: com.alibaba.druid.pool.DruidDataSource
    driver-class-name: com.mysql.cj.jdbc.Driver

5、编写实体类（使用lombok简化代码）

@TableName指定数据库的表名

@TableId(type = IdType.AUTO)指定id为自增

package com.zou.demo1.entity;

import com.baomidou.mybatisplus.annotation.IdType;
import com.baomidou.mybatisplus.annotation.TableId;
import com.baomidou.mybatisplus.annotation.TableName;
import com.baomidou.mybatisplus.annotation.Version;
import lombok.Data;

/**
 * @author: 邹祥发
 * @date: 2021/4/21 08:49
 */
@Data
@TableName("tbl_employee")
public class User {

 @TableId(type = IdType.AUTO)
 private Integer id;

 private String lastName;
 private String email;
 private Integer gender;
 private Integer age;

 @Version
 private Integer version;
}

6、编写Mapper类

package com.zou.demo1.mapper;

import com.baomidou.mybatisplus.core.mapper.BaseMapper;
import com.zou.demo1.entity.User;

/**
 * @author: 邹祥发
 * @date: 2021/4/21 08:55
 */
public interface UserMapper extends BaseMapper<User> {
}

7、因测试需要加入一些依赖，完整的pom.xml如下：

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.4.5</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.zou</groupId>
    <artifactId>demo1</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>demo1</name>
    <description>Demo project for Spring Boot</description>
    <properties>
        <java.version>1.8</java.version>
    </properties>
    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter</artifactId>
        </dependency>

        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>

        <!--mybatis-plus相关依赖-->
        <dependency>
            <groupId>com.baomidou</groupId>
            <artifactId>mybatis-plus-boot-starter</artifactId>
            <version>3.4.2</version>
        </dependency>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>6.0.5</version>
        </dependency>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid</artifactId>
            <version>1.1.10</version>
        </dependency>
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-test</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-test</artifactId>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
                <configuration>
                    <excludes>
                        <exclude>
                            <groupId>org.projectlombok</groupId>
                            <artifactId>lombok</artifactId>
                        </exclude>
                    </excludes>
                </configuration>
            </plugin>
        </plugins>
    </build>

</project>

8、进行功能测试

注：@MapperScan(“com.zou.demo1.mapper”)指定扫描的mapper包

（1）查询测试：

package com.zou.demo1.test;

import com.zou.demo1.entity.User;
import com.zou.demo1.mapper.UserMapper;
import org.junit.Assert;
import org.junit.Test;
import org.junit.runner.RunWith;
import org.mybatis.spring.annotation.MapperScan;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.context.SpringBootTest;
import org.springframework.test.context.junit4.SpringRunner;

import java.util.List;

/**
 * @author: 邹祥发
 * @date: 2021/4/21 08:57
 */
@RunWith(SpringRunner.class)
@SpringBootTest
@MapperScan("com.zou.demo1.mapper")
public class SampleTest {

    @Autowired
    private UserMapper userMapper;

    @Test
    public void selectTest() {
        System.out.println(("----- selectAll method test ------"));
        List<User> userList = userMapper.selectList(null);
        Assert.assertEquals(7, userList.size());
        userList.forEach(System.out::println);
    }
}

测试结果：

在这里插入图片描述

（2）插入测试：

@Test
public void insertTest(){
    System.out.println(("----- insertOne method test ------"));
    User user = new User();
    user.setLastName("uzi");
    user.setEmail("uzi@qq.com");
    user.setGender(0);
    user.setAge(24);
    user.setVersion(1);
    int i = userMapper.insert(user);
    System.out.println(i);
}

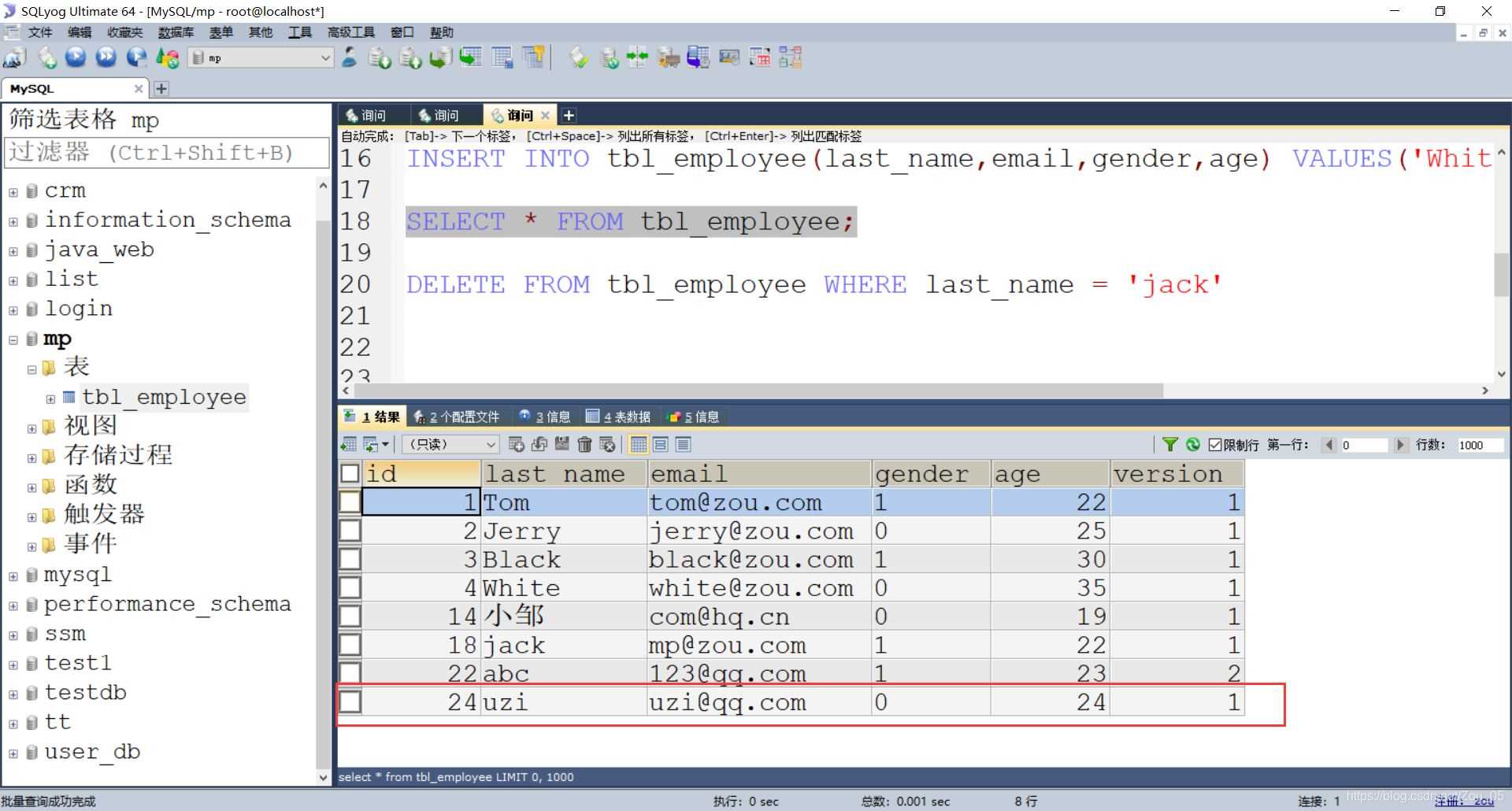

测试结果：

在这里插入图片描述

（3）更新测试： 注：不能设置version的值（因为没有引入乐观锁的插件），否则会抛出mybatis-plus乐观锁异常

 <!--乐观锁插件-->
 <bean class="com.baomidou.mybatisplus.plugins.OptimisticLockerInterceptor"/>

具体配置请点击：
https://mp.baomidou.com/guide/interceptor-optimistic-locker.html#optimisticlockerinnerinterceptor

@Test
public void updateTest(){
    System.out.println(("----- updateOneById method test ------"));
    User user = new User();
    user.setId(24);
    user.setLastName("mlxg");
    user.setEmail("mlxg@qq.com");
    user.setGender(1);
    user.setAge(23);
    int i = userMapper.updateById(user);
    System.out.println(i);
}

测试结果：

在这里插入图片描述

（4）删除测试：

@Test
public void deleteTest(){
    System.out.println(("----- deleteOneById method test ------"));
    int i = userMapper.deleteById(24);
    System.out.println(i);
}

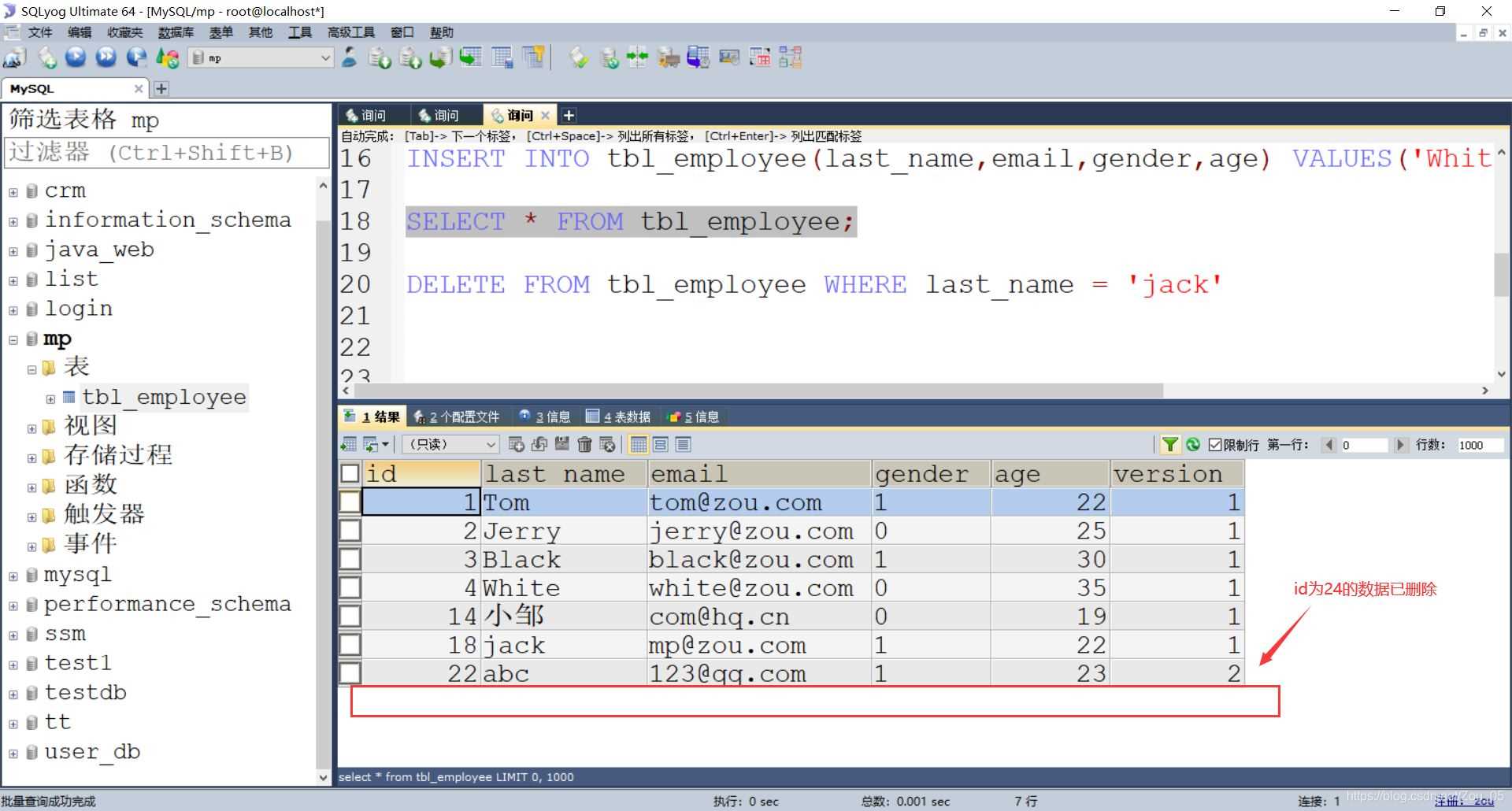

测试结果：

在这里插入图片描述

到此这篇关于使用springboot整合mybatis-plus实现数据库的增删查改示例的文章就介绍到这了,更多相关springboot mybatis-plus增删查改内容请搜索自学编程网以前的文章或继续浏览下面的相关文章希望大家以后多多支持自学编程网！
