解析Tars-Java客户端源码

// 先初始化基本Tars配置
CommunicatorConfig cfg = new CommunicatorConfig();
// 通过上述的CommunicatorConfig配置生成一个Communicator对象。
Communicator communicator = CommunicatorFactory.getInstance().getCommunicator(cfg);
// 指定Tars远程服务的服务对象名、IP和端口生成一个远程服务代理对象。
HelloPrx proxy = communicator.stringToProxy(HelloPrx.class, "TestApp.HelloServer.HelloObj@tcp -h 127.0.0.1 -p 18601 -t 60000");
//同步调用，阻塞直到远程服务对象的方法返回结果
String ret = proxy.hello(3000, "Hello World");
System.out.println(ret);
//异步调用，不关注异步调用最终的情况
proxy.async_hello(null, 3000, "Hello World");
    //异步调用,注册一个实现TarsAbstractCallback接口的回执处理对象，该实现类分别处理调用成功，调用超时和调用异常的情况。
proxy.async_hello(new HelloPrxCallback() {
    @Override
    public void callback_expired() { //超时事件处理
    }
    @Override
    public void callback_exception(Throwable ex) { //异常事件处理
    }
    @Override
    public void callback_hello(String ret) { //调用成功事件处理
        Main.logger.info("invoke async method successfully {}", ret);
    }
}, 1000, "Hello World");

public final class ObjectProxy<T> implements ServantProxy, InvocationHandler {
    public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
        String methodName = method.getName();
        Class<?>[] parameterTypes = method.getParameterTypes();
        InvokeContext context = this.protocolInvoker.createContext(proxy, method, args);
        try {
            if ("toString".equals(methodName) && parameterTypes.length == 0) {
                return this.toString();
            } else if
                //***** 省略代码 *****
            } else {
                // 在负载均衡器选取一个远程调用类，进行应用层协议的封装，最后调用TCP传输层进行发送。
                Invoker invoker = this.loadBalancer.select(context);
                return invoker.invoke(context);
            }
        } catch (Throwable var8) {
            // ***** 省略代码 *****
        }
    }
}

class ServantProxyFactory {
    private final ConcurrentHashMap<String, Object> cache = new ConcurrentHashMap();
    // ***** 省略代码 *****
    public <T> Object getServantProxy(Class<T> clazz, String objName, ServantProxyConfig servantProxyConfig, LoadBalance loadBalance, ProtocolInvoker<T> protocolInvoker) {
        Object proxy = this.cache.get(objName);
        if (proxy == null) {
            this.lock.lock(); // 加锁，保证只生成一个远程服务代理对象。
            try {
                proxy = this.cache.get(objName);
                if (proxy == null) {
                    // 创建实现JDK的java.lang.reflect.InvocationHandler接口的对象
                    ObjectProxy<T> objectProxy = this.communicator.getObjectProxyFactory().getObjectProxy(clazz, objName, servantProxyConfig, loadBalance, protocolInvoker);
                    // 使用JDK的java.lang.reflect.Proxy来生成实际的代理对象
                    this.cache.putIfAbsent(objName, this.createProxy(clazz, objectProxy));
                    proxy = this.cache.get(objName);
                }
            } finally {
                this.lock.unlock();
            }
        }
        return proxy;
    }
    /** 使用JDK自带的Proxy.newProxyInstance生成代理对象 */
    private <T> Object createProxy(Class<T> clazz, ObjectProxy<T> objectProxy) {
        return Proxy.newProxyInstance(Thread.currentThread().getContextClassLoader(), new Class[]{clazz, ServantProxy.class}, objectProxy);
    }
    // ***** 省略代码 *****
}

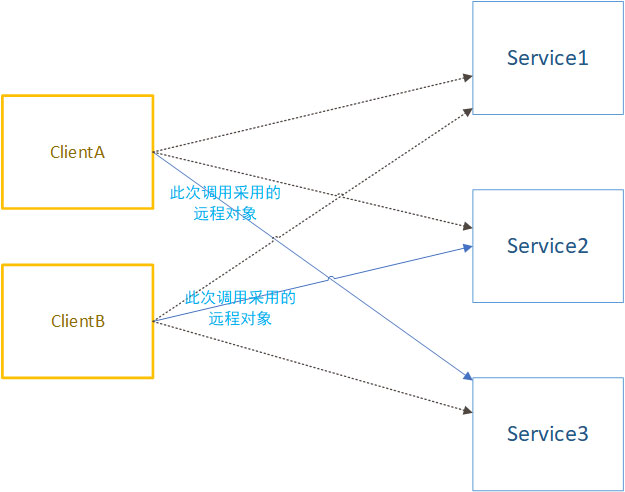

public interface LoadBalance<T> {
    /** 根据负载均衡策略，挑选invoker */
    Invoker<T> select(InvokeContext invokeContext) throws NoInvokerException;
    /** 通知invoker列表的更新 */
    void refresh(Collection<Invoker<T>> invokers);
}

public final class Reactor extends Thread {
    protected volatile Selector selector = null;
    private Acceptor acceptor = null;
    //***** 省略代码 *****
    public void run() {
        try {
            while (!Thread.interrupted()) {
                // 阻塞直到有网络事件发生。
                selector.select();
                //***** 省略代码 *****
                while (iter.hasNext()) {
                    SelectionKey key = iter.next();
                    iter.remove();
                    if (!key.isValid()) continue;
                    try {
                        //***** 省略代码 *****
                        // 分发传输层协议TCP或UDP网络事件
                        dispatchEvent(key);
                //***** 省略代码 *****
            }
        }
        //***** 省略代码 *****
    }
        //***** 省略代码 *****
    private void dispatchEvent(final SelectionKey key) throws IOException {
        if (key.isConnectable()) {
            acceptor.handleConnectEvent(key);
        } else if (key.isAcceptable()) {
            acceptor.handleAcceptEvent(key);
        } else if (key.isReadable()) {
            acceptor.handleReadEvent(key);
        } else if (key.isValid() && key.isWritable()) {
            acceptor.handleWriteEvent(key);
        }
    }
}

private void initCommunicator(CommunicatorConfig config) throws CommunicatorConfigException {
    //***** 省略代码 *****
    this.threadPoolExecutor = ClientPoolManager.getClientThreadPoolExecutor(config);
    //***** 省略代码 *****
}
​
public class ClientPoolManager {
    public static ThreadPoolExecutor getClientThreadPoolExecutor(CommunicatorConfig communicatorConfig) {
        //***** 省略代码 *****
        clientThreadPoolMap.put(communicatorConfig, createThreadPool(communicatorConfig));
        //***** 省略代码 *****
        return clientPoolExecutor;
    }

    private static ThreadPoolExecutor createThreadPool(CommunicatorConfig communicatorConfig) {
        int corePoolSize = communicatorConfig.getCorePoolSize();
        int maxPoolSize = communicatorConfig.getMaxPoolSize();
        int keepAliveTime = communicatorConfig.getKeepAliveTime();
        int queueSize = communicatorConfig.getQueueSize();
        TaskQueue taskqueue = new TaskQueue(queueSize);
​
        String namePrefix = "tars-client-executor-";
        TaskThreadPoolExecutor executor = new TaskThreadPoolExecutor(corePoolSize, maxPoolSize, keepAliveTime, TimeUnit.SECONDS, taskqueue, new TaskThreadFactory(namePrefix));
        taskqueue.setParent(executor);
        return executor;
    }
}

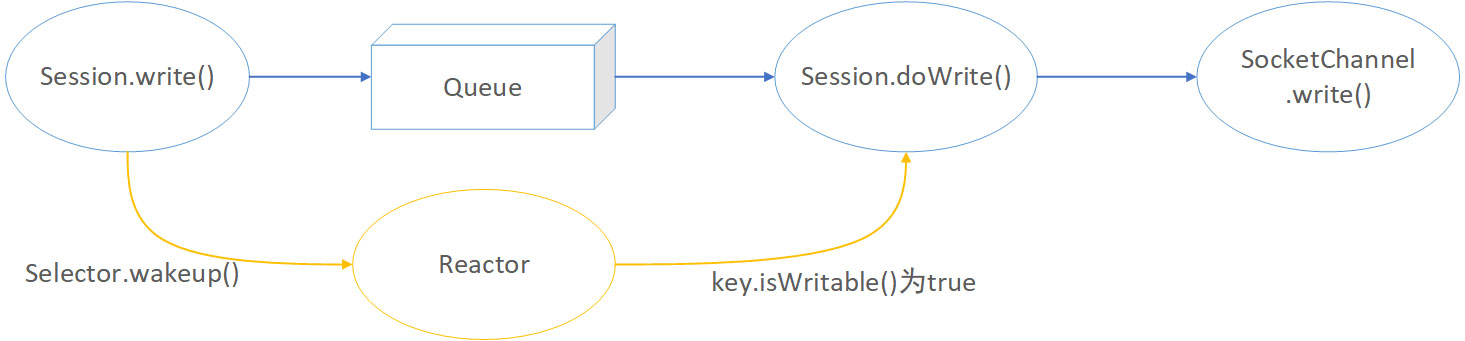

public class TCPSession extends Session {
    public void write(Request request) throws IOException {
        try {
            IoBuffer buffer = selectorManager.getProtocolFactory().getEncoder().encodeRequest(request, this);
            write(buffer);
        //***** 省略代码 *****
    }
    protected void write(IoBuffer buffer) throws IOException {
        //***** 省略代码 *****
        if (!this.queue.offer(buffer.buf())) {
            throw new IOException("The session queue is full. [ queue size:" + queue.size() + " ]");
        }
        if (key != null) {
            key.interestOps(key.interestOps() | SelectionKey.OP_WRITE);
            key.selector().wakeup();
        }
    }
    protected synchronized int doWrite() throws IOException {
        int writeBytes = 0;
        while (true) {
            ByteBuffer wBuf = queue.peek();
            //***** 省略代码 *****
            int bytesWritten = ((SocketChannel) channel).write(wBuf);
            //***** 省略代码 *****
        return writeBytes;
    }
}

public class ServantClient {
    public <T extends ServantResponse> T invokeWithSync(ServantRequest request) throws IOException {
            //***** 省略代码 *****
            ticket = TicketManager.createTicket(request, session, this.syncTimeout);
            Session current = session;
            current.write(request);
            if (!ticket.await(this.syncTimeout, TimeUnit.MILLISECONDS)) {
            //***** 省略代码 *****
            response = ticket.response();
            //***** 省略代码 *****
            return response;
            //***** 省略代码 *****
        return response;
    }
}

public final class WorkThread implements Runnable {
    public void run() {
        try {
            //***** 省略代码 *****
                Ticket<Response> ticket = TicketManager.getTicket(resp.getTicketNumber());
            //***** 省略代码 *****
                ticket.notifyResponse(resp);
                ticket.countDown();
                TicketManager.removeTicket(ticket.getTicketNumber());
            }
            //***** 省略代码 *****
    }
}

public class TicketManager {
            //***** 省略代码 *****
    static {
        executor.scheduleAtFixedRate(new Runnable() {
            long currentTime = -1;
            public void run() {
                Collection<Ticket<?>> values = tickets.values();
                currentTime = System.currentTimeMillis();
                for (Ticket<?> t : values) {
                    if ((currentTime - t.startTime) > t.timeout) {
                        removeTicket(t.getTicketNumber());
                        t.expired();
                    }
                }
            }
        }, 500, 500, TimeUnit.MILLISECONDS);
    }
}
