C++基于socket UDP网络编程实现简单聊天室功能

本文实例为大家分享了C++基于socket UDP实现简单聊天室功能的具体代码,供大家参考,具体内容如下

0.通信步骤流程图

(左:服务器;右:客户端;)

1.服务器代码

1.1服务器类头文件(CServer_UDP.h)

#pragma once

#include <winsock2.h>

class CServer_UDP
{
public:
 CServer_UDP();
 void SendMsg(const char sendBuf[]);
 void RecMsg();
 ~CServer_UDP();

private:
 SOCKET m_sServer;
 struct sockaddr_in m_SocAddrClient;  //建立连接时,用于保存客户端信息
 bool m_terminal;
};

1.2服务器类源文件(CServer_UDP.cpp)

#define _WINSOCK_DEPRECATED_NO_WARNINGS
#include "CServer_UDP.h"

#include <iostream>

#pragma comment(lib, "ws2_32.lib")


CServer_UDP::CServer_UDP():m_terminal(false)
{
 //必须进行如下初始化, 否则socket()会返回10093错误
 //初始化WSA
 WORD sockVersion = MAKEWORD(2, 2);
 WSADATA wsaData;
 if (WSAStartup(sockVersion, &wsaData) != 0) //通过一个进程初始化ws2_32.dll
 {
  std::cout << "Initialize WSA failed" << std::endl;
  return;
 }
 //初始化UDDP套接字
 m_sServer = socket(AF_INET, SOCK_DGRAM, 0);

 struct sockaddr_in m_SocAddrserver;
 m_SocAddrserver.sin_addr.S_un.S_addr = 0;//htonl(INADDR_ANY);
 m_SocAddrserver.sin_family = AF_INET;
 m_SocAddrserver.sin_port = htons(8090);

 int ret = bind(m_sServer, (sockaddr*)&m_SocAddrserver, sizeof(m_SocAddrserver));
 if (ret == -1)
 {
  std::cout << "bind failed!" << std::endl;
  WSACleanup();
 }
 else
 {
  //此处必须赋初值,不然会导致服务器端无法正常发送
  int len_Client = sizeof(sockaddr);
  char recBuf[1025];
  int len = recvfrom(m_sServer, recBuf, 1024, 0, (sockaddr*)&m_SocAddrClient, &len_Client);
  if (len > 0)
  {
   recBuf[len] = '\0';
   std::cout << "Client say:" << recBuf << std::endl;
  }
 }


}
void CServer_UDP::SendMsg(const char sendBuf[])
{
 int ret = sendto(m_sServer, sendBuf, strlen(sendBuf), 0, (sockaddr*)&m_SocAddrClient, sizeof(m_SocAddrClient));
 if (ret == -1)
 {
  std::cout << "send failed" << std::endl;
  std::cout << GetLastError()<< std::endl;
 }
}
void CServer_UDP::RecMsg()
{
 char recBuf[1025];
 while (!m_terminal)
 {
  //std::cout << "Begin rec...(server)" << std::endl;
  int len = recvfrom(m_sServer, recBuf, 1024, 0, 0, 0);
  if (len > 0)
  {
   recBuf[len] = '\0';
   std::cout << "Client say:" << recBuf << std::endl;
  }
 }

}
CServer_UDP::~CServer_UDP()
{
 closesocket(m_sServer);
 WSACleanup();

}

1.3服务器主函数

#include <iostream>
#include <thread>
#include <string>

#include "CServer_UDP.h"

using namespace std;

int main()
{
 CServer_UDP server_UDP;

 thread recProc(&CServer_UDP::RecMsg, &server_UDP);

 while (1)
 {
  //cout << "Pleaes input content:" << endl;
  string content;
  cin >> content;
  server_UDP.SendMsg(content.c_str());
 }

 recProc.join();
 cout << "I love china!" << endl;
 system("pause");
 return 0;
}

2.客户端代码

2.1客户端类头文件(CClient.h)

#pragma once

#include <winsock2.h>

class CClient
{
public:
 CClient();
 void RecMsg();
 void SendMsg(const char sendBuf[]);
 ~CClient();
private:
 SOCKET m_sockClient;
 sockaddr_in m_TargetServer;
};

2.2客户端类源文件(CClient.cpp)

#define _WINSOCK_DEPRECATED_NO_WARNINGS
#include "CClient.h"

#include <iostream>

#pragma comment(lib, "ws2_32.lib")

CClient::CClient()
{
 //必须进行如下初始化, 否则socket()会返回10093错误
 //初始化WSA
 WORD sockVersion = MAKEWORD(2, 2);
 WSADATA wsaData;
 if (WSAStartup(sockVersion, &wsaData) != 0) //通过一个进程初始化ws2_32.dll
 {
  std::cout << "Initialize WSA failed" << std::endl;
  return;
 }

 m_sockClient = socket(AF_INET, SOCK_DGRAM, 0);

 m_TargetServer.sin_addr.S_un.S_addr = inet_addr("127.0.0.1");
 m_TargetServer.sin_family = AF_INET;
 m_TargetServer.sin_port = htons(8090);

 if (m_sockClient == -1)
 {
  std::cout << "Create socket failed!" << std::endl;
  WSACleanup();
 }
 else
 {
  //发送信息与服务器建立连接(必须加)
  sendto(m_sockClient, "hello server", strlen("hello server"), 0, (sockaddr*)&m_TargetServer, sizeof(m_TargetServer));
 }
}

void CClient::SendMsg(const char sendBuf[])
{
 sendto(m_sockClient, sendBuf, strlen(sendBuf), 0, (sockaddr*)&m_TargetServer, sizeof(m_TargetServer));
}
void CClient::RecMsg()
{
 char recBuf[1025];

 while (1)
 {
  //std::cout << "Begin rec...(client)" << std::endl;
  int len = recvfrom(m_sockClient, recBuf, 1024, 0, 0, 0);
  if (len > 0)
  {
   recBuf[len] = '\0';
   std::cout << "Server say: " << recBuf << std::endl;
  }
 }

}
CClient::~CClient()
{
 closesocket(m_sockClient);
 WSACleanup();
}

2.3客户端主函数

#include <iostream>
#include <string>
#include <thread>

#include "CClient.h"

using namespace std;

int main()
{
 CClient client_UDP;

 thread RecProc(&CClient::RecMsg, &client_UDP);

 while (1)
 {
  //cout << "Please input content:" << endl;
  string content;
  cin >> content;

  client_UDP.SendMsg(content.c_str());
 }


 RecProc.join();
 cout << "I love china!" << endl;
 system("pause");
 return 0;
}

3.效果图(win7+VS2017)

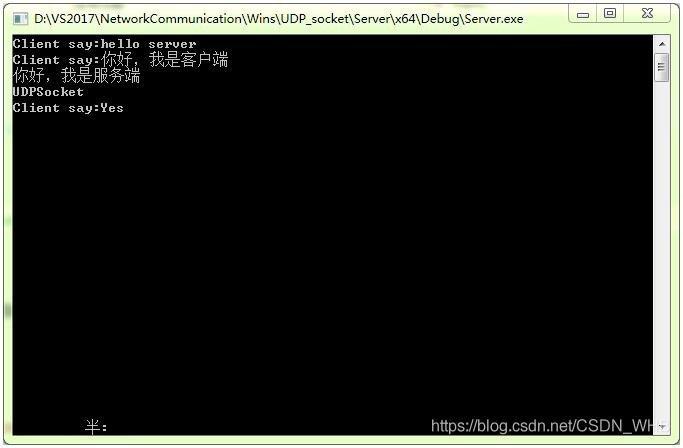

3.1服务端

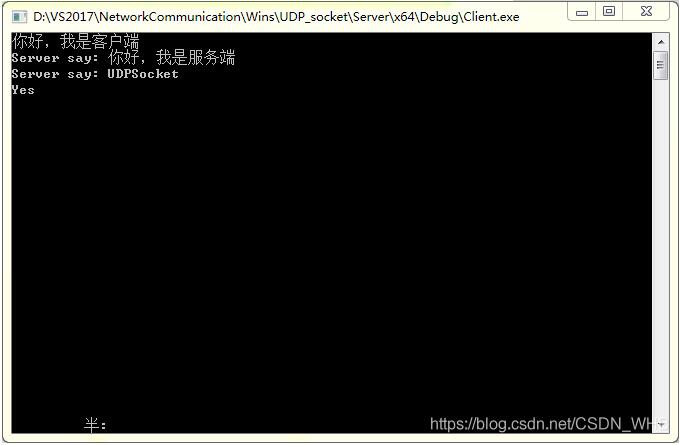

3.2客户端

以上就是本文的全部内容,希望对大家的学习有所帮助,也希望大家多多支持自学编程网。
