Spring boot集成Go-FastDFS实现图片上传删除等功能实现

一.背景

工作中接触到需要采集并管理大量图片的需求,本来是用的FastDFS,但是发现实际情况是在项目实施时难以找到linux服务器去安装FastDFS,所以经过调研,选择了可以在windows服务器上安装部署的Go-FastDFS文件服务器

二.Go-FastDFS简介

go-fastdfs是一个基于http协议的分布式文件系统,它基于大道至简的设计理念,一切从简设计,使得它的运维及扩展变得更加简单,它具有高性能、高可靠、无中心、免维护等优点。

三.安装Go-FastDFS文件服务器

1)下载地址:https://github.com/sjqzhang/go-fastdfs/releases

2)下载完成直接启动fileserver.exe

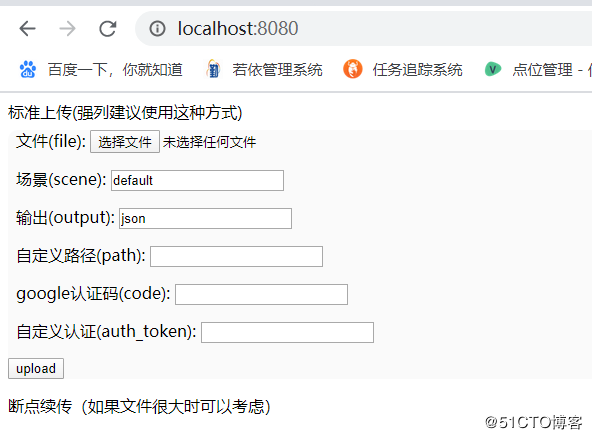

3)验证是否安装成功,访问localhost:8080


4)验证上传功能,点击选择文件选择好文件后,点击上传

5)在返回的url后加?download=0,查看图片

四.实例实现功能

1)图片上传
2)图片删除
3)图片访问
4)图片水印添加

五.创建Spring boot项目,写代码实现功能

1)pom.xml添加依赖

 <!--工具包-->
    <dependency>
      <groupId>cn.hutool</groupId>
      <artifactId>hutool-all</artifactId>
      <version>${hutool.version}</version>
    </dependency>

2)核心代码,使用go-fastdhs上传图片并添加水印及删除图片工具类

@Component
public class GoFastdfsClientUtil {

  @Value("${camera.upload.path}")
  private String uploadPath;

  @Value("${camera.delete.path}")
  private String deletePath;

  private final Logger logger = LoggerFactory.getLogger(GoFastdfsClientUtil.class);

  /**
   * 图片上传
   *
   * @param file
   * @param sixCode
   * @return
   * @throws IOException
   */
  public UploadResult upload(MultipartFile file, String sixCode) throws IOException {
    UploadResult uploadResult = new UploadResult();
    ByteArrayOutputStream bos = addWatermark(file, sixCode);
    byte[] b = bos.toByteArray();
    ByteArrayInputStream byteArrayInputStream = new ByteArrayInputStream(b);
    InputStreamResource isr = new InputStreamResource(byteArrayInputStream, file.getOriginalFilename());
    Map<String, Object> params = new HashMap<>();
    params.put("file", isr);
    params.put("path", "image");
    params.put("output", "json");
    // 场景
    params.put("scene", "image");
    String resp = HttpUtil.post(uploadPath, params);
    Console.log("resp: {}", resp);
    JSONObject exJson = JSONObject.parseObject(resp);
    uploadResult = JSON.toJavaObject(exJson, UploadResult.class);
    return uploadResult;
  }

  /**
   * 图片删除
   *
   * @param fileUrl
   */
  public void deleteImage(String md5) {
    if (StringUtils.isEmpty(md5)) {
      return;
    }
    try {
      Map<String, Object> params = new HashMap<>();
      params.put("md5", md5);
      HttpUtil.post(deletePath, params);
    } catch (Exception e) {
      logger.warn(e.getMessage());
    }
  }

  /**
   * 加水印
   *
   * @param myfile
   * @param sixCode
   * @return
   * @throws IOException
   */
  private ByteArrayOutputStream addWatermark(MultipartFile myfile, String sixCode) throws IOException {
    InputStream in = myfile.getInputStream();
    BufferedInputStream bis = new BufferedInputStream(in);
    BufferedImage image = ImageIO.read(bis);
    int height = image.getHeight();
    int width = image.getWidth();
    // 加水印
    Graphics2D g = image.createGraphics();
    g.drawImage(image, 0, 0, width, height, null);
    g.setColor(new Color(128, 128, 128));
    // 字体
    int num = 0;
    if (width > height) {
      num = height / 30;
    } else {
      num = width / 30;
    }
    g.setFont(new Font("微软雅黑", Font.PLAIN, num));
    SimpleDateFormat formatter = new SimpleDateFormat("yyyy-MM-dd HH:mm:ss");
    String date = formatter.format(new Date());
    String watermarkContent = "拍摄时间:" + date + "&摄像头编码:" + sixCode;
    // 设置水印坐标
    String[] split = watermarkContent.split("&");
    int x = 10;
    int y = height - 10;
    for (int i = 0; i < split.length; i++) {
      g.drawString(split[i], x, y -= g.getFontMetrics().getHeight());
    }
    g.dispose();
    ByteArrayOutputStream bos = new ByteArrayOutputStream();
    ImageIO.write(image, "jpg", bos);
    return bos;
  }
}

解释:这里我们事先在配置文件中配置好了文件的上传路径以及删除路径,配置如下:

camera:
 upload:
  path: http://localhost:8080/group1/upload
 delete:
  path: http://localhost:8080/group1/delete
 visit:
  path: http://localhost:8080

3)上面的方法中我们将图片上传后的返回值转换为结果集对象,对象定义如下:

public class UploadResult implements Serializable{

/**
 *
 */
private static final long serialVersionUID = 5534287808864118463L;
private String url;
private String md5;
private String path;
private String domain;
private String scene;
private BigInteger size;
private BigInteger mtime;
private String scenes;
private String retmsg;
private int retcode;
private String src;
......get,set方法.....
}

4)在实际应用中编写控制层方法调用核心工具类的上传,删除方法即可

总结:本次总结主要描述了spring boot集成go-fastdfs上传图片的核心方法,没有具体的测试展示,其实go-fastdfs的使用很简单,接口编写也很简单
