Docker构建python Flask+ nginx+uwsgi容器

安装Nginx

首先拉下centos镜像docker pull centos

我们安装最新的nginx1.19版本:下载地址

将centos镜像运行起来并进入:

docker run --name ver -d -p 8051:80 -it nginx_start

将nginx-1.19.0.tar.gz这个包放入容器里面:

docker cp nginx-1.19.0.tar.gz 10e87af84c05:/root(10e87af84c05为centos容器id)

安装nginx前先装一些依赖:

yum -y install gcc gcc-c++ autoconf automake make
yum -y install zlib zlib-devel openssl openssl-devel pcre pcre-devel

解压:

tar -zxvf nginx-1.19.0.tar.gz
#进入到nginx-1.10.1 ,并配置nginx
 cd nginx-1.19.0
 #配置nginx
 #--prefix 指定安装的目录
 #/usr/local/nginx 是安装目录,不能和自己下载的文件目录重了
 #./configure --prefix=/usr/local/nginx

 #带ssl stub_status模块 添加strem模块 ?with-stream,这样就能传输tcp协议了
 #http_stub_status_module 状态监控
 #http_ssl_module  配置https
 #stream 配置tcp得转发
 #http_gzip_static_module 压缩
 #http_sub_module 替换请求
 ./configure --prefix=/usr/local/nginx --with-http_stub_status_module --with-http_ssl_module --with-stream

注:

在这里我出现了pcre和zlib缺失的错,可以使用yum -y install zlib zlib-devel openssl openssl--devel pcre pcre-devel命令,安装所有依赖。

make & make install进行编译安装

安装成功后,在./configure --prefix=/usr/local/nginx指定目录会生成四个文件,我们也只需要输入/usr/local/nginx/sbin/nginx来启动nginx服务即可。

要验证是否成功,可以输入curl localhost来查看是否启动成功。

生成镜像

10. 将装有nginx的centos容器打包为镜像docker commit ba5ba0d81912 nginx_centos(ba5ba0d81912 为容器ID,重命名为nginx_centos)
11. 重新运行新的镜像:docker run --name ver -d -p 8051:80 -it nginx_centos
12. 而此时的镜像,则是有我们安装好的nginx,我们就可以拿他开始为所欲为,做一些其他的骚操作了。

安装python2.7环境

yum install gcc openssl-devel bzip2-devel

用 wget 下载 python 2.7 并解压

yum -y install wget

进入目录 /usr/src 再用 wget 下载 python 2.7

cd /usr/src
wget https://www.python.org/ftp/python/2.7.15/Python-2.7.15.tgz

再解压 python2.7

tar -zxvf Python-2.7.15.tgz

安装 python 2.7

进入上面解压的 Python-2.7.15 解压文件中使用下面命令行安装

cd Python-2.7.15
./configure --enable-optimizations
make altinstall

安装 PIP

curl "https://bootstrap.pypa.io/get-pip.py" -o "get-pip.py"
python2.7 get-pip.py

因为版本为2.7,且requirements.txt里面有一个 MYSQL-python的库,会报一个找不到libmysqlclient-dev的错,执行yum install mysql-devel即可解决。

安装UWSGI

pip install uwsgi的时候会报一个错:

plugins/python/uwsgi_python.h:2:20: fatal error: Python.h: No such file or directory
#include <Python.h>


运行yum install python-devel.x86_64即可解决,并重新pip install即可下载。

配置uWSGI服务器

相关uwsgi.ini文件内容如下:

[uwsgi]
socket = /tmp/uwsgi.sock
chown-socket = nginx:nginx
chmod-socket = 664
# Graceful shutdown on SIGTERM, see https://github.com/unbit/uwsgi/issues/849#issuecomment-118869386
hook-master-start = unix_signal:15 gracefully_kill_them_all

在项目目录下/app/创建uwsgi.ini文件:

[uwsgi]

uwsgi-socket = /tmp/uwsgi.sock
chmod-socket = 777
callable = app
wsgi-file = main.py
buffer-size = 65535
processes = %(%k * 2)
threads = %(%k * 20

其中每个参数的意思:

uwsgi-socket:将uwsgi-socket这个配置项指定了一个文件,这个文件是Unix套接字,即通过文件系统
(而非网络地址)进行寻址和访问的套接字。配置uwsgi-socket之后,还需要配置chmod-socket,
Unix socket是个文件,所以会受到Unix系统的权限限制,可以配置成660或者777,
使得uwsgi客户端能够访问这个Unix socket文件,这里配置为777。

callable:设置在收到请求时,uwsgi加载的模块中哪个变量将被调用,默认是名字为“application”的变量。

wsgi-file:加载指定的wsgi文件。

buffer-size:设置用于uwsgi包解析的内部缓存区大小。默认是4k。

processes和threads,分别是开启的进程数和线程数,而%k是魔数变量,代表CPU核数,如果我们是双核CPU,
那这里的processes和threads分别为4和40,即有4个进程,每个进程有40个线程。

安装Supervisor(可选)

直接yum安装会报一个No package supervisor available.的错误,那是因为CentOS是RedHat企业版编译过来的,去掉了所有关于版权问题的东西。只需要执行yum install epel-release即可解决。安装好后会生成如下目录:


现在我们将配置supervisor,使得supervisor监听nginx和uwsgi服务。

首先在/etc目录下创建supervisor文件,然后创建supervisord.conf文件和conf.d目录:


supervisord.conf目录配置如下:

; supervisor config file

[unix_http_server]
file=/var/run/supervisor/supervisor.sock  ; (the path to the socket file)
chmod=0700            ; sockef file mode (default 0700)

[supervisord]
logfile=/var/log/supervisor/supervisord.log ; (main log file;default $CWD/supervisord.log)
pidfile=/var/run/supervisord.pid ; (supervisord pidfile;default supervisord.pid)
childlogdir=/var/log/supervisor      ; ('AUTO' child log dir, default $TEMP)

; the below section must remain in the config file for RPC
; (supervisorctl/web interface) to work, additional interfaces may be
; added by defining them in separate rpcinterface: sections
[rpcinterface:supervisor]
supervisor.rpcinterface_factory = supervisor.rpcinterface:make_main_rpcinterface

[supervisorctl]
serverurl=unix:///var/run/supervisor.sock ; use a unix:// URL for a unix socket

; The [include] section can just contain the "files" setting. This
; setting can list multiple files (separated by whitespace or
; newlines). It can also contain wildcards. The filenames are
; interpreted as relative to this file. Included files *cannot*
; include files themselves.

[include]
files = /etc/supervisor/conf.d/*.conf

再在conf.d目录下创建supervisord.conf文件并编辑:

[supervisord]
nodaemon=true

[program:uwsgi]
command=/usr/bin/uwsgi --ini /etc/uwsgi/uwsgi.ini --die-on-term --need-app
stdout_logfile=/dev/stdout
stdout_logfile_maxbytes=0
stderr_logfile=/dev/stderr
stderr_logfile_maxbytes=0

[program:nginx]
command=/usr/local/nginx/sbin/nginx
stdout_logfile=/dev/stdout
stdout_logfile_maxbytes=0
stderr_logfile=/dev/stderr
stderr_logfile_maxbytes=0
# Graceful stop, see http://nginx.org/en/docs/control.html
stopsignal=QUIT

以上路径均为实际目录配置,如果有不一样则需要更改。

然后将supervisor启动:


以上配置弄好后,我们将容器重新打包生成一个新的镜像,记为base_v3,我们写一个打包docker应用的Dockerfile:

FROM base_v3

# 创建工作路径
RUN mkdir /app

# 指定容器启动时执行的命令都在app目录下执行
WORKDIR /app

# 替换nginx的配置
COPY nginx.conf /etc/nginx/nginx.conf

# 将本地app目录下的内容拷贝到容器的app目录下
COPY ./app/ /app/

这里,在Dockerfile和app同级目录下,再建立一个nginx.conf文件,并将nginx.conf内容修改如下:

user nginx;
worker_processes 1;
error_log /usr/local/nginx/logs/error.log warn;
pid    /usr/local/nginx/logs/nginx.pid;
worker_rlimit_nofile 20480;


events {
 use epoll;
 worker_connections 20480;
 multi_accept on;
}


http {
  include    /usr/local/nginx/conf/mime.types;
  default_type application/octet-stream;

  log_format main '$remote_addr - $remote_user [$time_local] "$request" '
           '$status $body_bytes_sent "$http_referer" '
           '"$http_user_agent" "$http_x_forwarded_for"';
  #请求量级大建议关闭acccess_log
  #access_log /var/log/nginx/access.log main;

  sendfile    on;
  #tcp_nopush   on;

  keepalive_timeout 300s;
  client_header_timeout 300s;
  client_body_timeout 300s;

  gzip on;
  gzip_min_length 1k;
  gzip_buffers 4 16k;
  gzip_types text/html application/javascript application/json;

  include /usr/local/nginx/conf.d/*.conf;

  server {
   listen 6666;
   charset utf-8;
   client_max_body_size 75M;
   location / {
    include uwsgi_params;
    uwsgi_pass unix:///tmp/uwsgi.sock;
    uwsgi_send_timeout 300;
    uwsgi_connect_timeout 300;
    uwsgi_read_timeout 300;
   }
  }
}

接下来只需要docker build -t new_project .docker run --name test -d -p 8055:6666 -v /root/web/mim_backend/data:/app/static -v /root/logs/mim_backend:/app/log -it new_project即可。
当然,这个时候进去nginx和uwsgi没有自动启动,需要手动拉起来,如想自动拉起服务,可选用supervisor或者在dockerfile里面加一个ENTRYPOINT nginx -g "daemon on;" && uwsgi --ini /app/uwsgi.ini

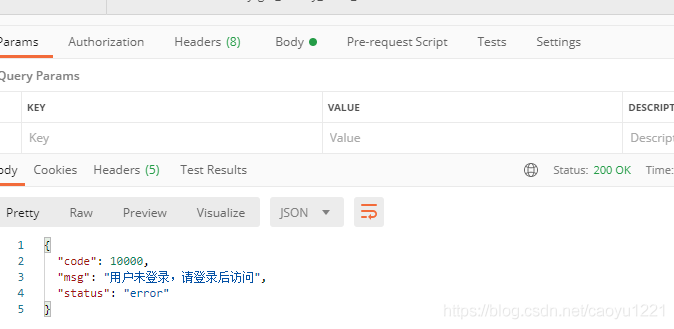

然后随便跑一个接口测试:

到此这篇关于Docker构建python Flask+ nginx+uwsgi容器的文章就介绍到这了,更多相关Docker构建Flask+ nginx+uwsgi内容请搜索自学编程网以前的文章或继续浏览下面的相关文章希望大家以后多多支持自学编程网!
