mybatis 自定义实现拦截器插件Interceptor示例

首先熟悉一下Mybatis的执行过程,如下图:

在这里插入图片描述

类型

先说明Mybatis中可以被拦截的类型具体有以下四种:

1.Executor:拦截执行器的方法。
2.ParameterHandler:拦截参数的处理。
3.ResultHandler:拦截结果集的处理。
4.StatementHandler:拦截Sql语法构建的处理。

规则

Intercepts注解需要一个Signature(拦截点)参数数组。通过Signature来指定拦截哪个对象里面的哪个方法。@Intercepts注解定义如下:

@Documented
@Retention(RetentionPolicy.RUNTIME)
@Target(ElementType.TYPE)
public @interface Intercepts {
 /**
  * 定义拦截点
  * 只有符合拦截点的条件才会进入到拦截器
  */
 Signature[] value();
}

Signature来指定咱们需要拦截那个类对象的哪个方法。定义如下:

@Documented
@Retention(RetentionPolicy.RUNTIME)
@Target({})
public @interface Signature {
 /**
 * 定义拦截的类 Executor、ParameterHandler、StatementHandler、ResultSetHandler当中的一个
 */
 Class<?> type();

 /**
 * 在定义拦截类的基础之上,在定义拦截的方法
 */
 String method();

 /**
 * 在定义拦截方法的基础之上在定义拦截的方法对应的参数,
 * JAVA里面方法可能重载,故注意参数的类型和顺序
 */
 Class<?>[] args();
}

标识拦截注解@Intercepts规则使用,简单实例如下:

@Intercepts({//注意看这个大花括号,也就这说这里可以定义多个@Signature对多个地方拦截,都用这个拦截器
  @Signature(
    type = ResultSetHandler.class,
    method = "handleResultSets",
    args = {Statement.class}),
  @Signature(type = Executor.class,
    method = "query",
    args = {MappedStatement.class, Object.class, RowBounds.class, ResultHandler.class})
})

说明:
@Intercepts:标识该类是一个拦截器;
@Signature:指明自定义拦截器需要拦截哪一个类型,哪一个方法;
- type:上述四种类型中的一种;
- method:对应接口中的哪类方法(因为可能存在重载方法);
- args:对应哪一个方法的入参;

method中对应四种的类型的方法:

拦截类型 拦截方法
Executor update, query, flushStatements, commit, rollback,getTransaction, close, isClosed
ParameterHandler getParameterObject, setParameters
StatementHandler prepare, parameterize, batch, update, query
ResultSetHandler handleResultSets, handleOutputParameters

介绍

谈到自定义拦截器实践部分,主要按照以下三步:

实现org.apache.ibatis.plugin.Interceptor接口,重写以下方法:

public interface Interceptor {
 Object intercept(Invocation var1) throws Throwable;
 Object plugin(Object var1);
 void setProperties(Properties var1);
}

添加拦截器注解@Intercepts{...}。具体值遵循上述规则设置。

配置文件中添加拦截器。

 intercept(Invocation invocation)

从上面我们了解到interceptor能够拦截的四种类型对象,此处入参invocation便是指拦截到的对象。
举例说明:拦截**StatementHandler#query(Statement st,ResultHandler rh)**方法,那么Invocation就是该对象。

plugin(Object target)

这个方法的作用是就是让mybatis判断,是否要进行拦截,然后做出决定是否生成一个代理。

@Override
 public Object plugin(Object target) {
 //判断是否拦截这个类型对象(根据@Intercepts注解决定),然后决定是返回一个代理对象还是返回原对象。
//故我们在实现plugin方法时,要判断一下目标类型,如果是插件要拦截的对象时才执行Plugin.wrap方法,否则的话,直接返回目标本身。
  if (target instanceof StatementHandler) {
   return Plugin.wrap(target, this);
  }
  return target;
 }

注意:每经过一个拦截器对象都会调用插件的plugin方法,也就是说,该方法会调用4次。根据@Intercepts注解来决定是否进行拦截处理。

setProperties(Properties properties)

拦截器需要一些变量对象,而且这个对象是支持可配置的。

实战

自定义拦截器

@Intercepts(value = {@Signature(type = StatementHandler.class, method = "prepare", args = {Connection.class, Integer.class})})
public class MyInterceptor implements Interceptor {

 @Override
 public Object intercept(Invocation invocation) throws Throwable {
  StatementHandler statementHandler = (StatementHandler) invocation.getTarget();
  BoundSql boundSql = statementHandler.getBoundSql();
  Object obj = boundSql.getParameterObject();
  String sql = boundSql.getSql();
  if (sql.trim().toUpperCase().startsWith("INSERT")) {
   ReflectUtil.setFieldValue(obj, "rev", 0);
   ReflectUtil.setFieldValue(obj, "createTime", new Date());
   ReflectUtil.setFieldValue(obj, "operateTime", new Date());
   ReflectUtil.setFieldValue(boundSql,"parameterObject", obj);

  } else if (sql.trim().toUpperCase().startsWith("UPDATE")) {
   sql = sql.replaceAll(" set ", " SET ")
     .replaceAll(" Set ", " SET ")
     .replaceAll(" SET ", " SET rev = rev+1, operate_time = NOW(), ");
   ReflectUtil.setFieldValue(boundSql,"sql", sql);
  }
  return invocation.proceed();
 }

 @Override
 public Object plugin(Object o) {
  return Plugin.wrap(o, this);
 }

 @Override
 public void setProperties(Properties properties) {

 }
}

主要看下核心代码方法intercept():
这段代码主要目的:拦截insert和update语句,利用反射机制,设置insert语句的参数rev(版本号,利用乐观锁),第一次查询,故创建时间和操作时间相同;update是将版本号+1,统一修改其操作时间。

mybatis-config

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration PUBLIC "-//mybatis.org//DTD Config 3.0//EN" "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
	<plugins>
  <plugin interceptor="com.qxy.mybatis.interceptor.MyInterceptor"/>
 </plugins>

</configuration>

application.yml
特别重要的一点,一定将mybatis-config中的对象注入到Sprint容器中,否则不会生效。

...//省略其他配置
mybatis:
 config-location: classpath:/mybatis-config.xml

ReflectUtil

...//省略其他配置
mybatis:
 config-location: classpath:/mybatis-config.xml

debug

在这里插入图片描述

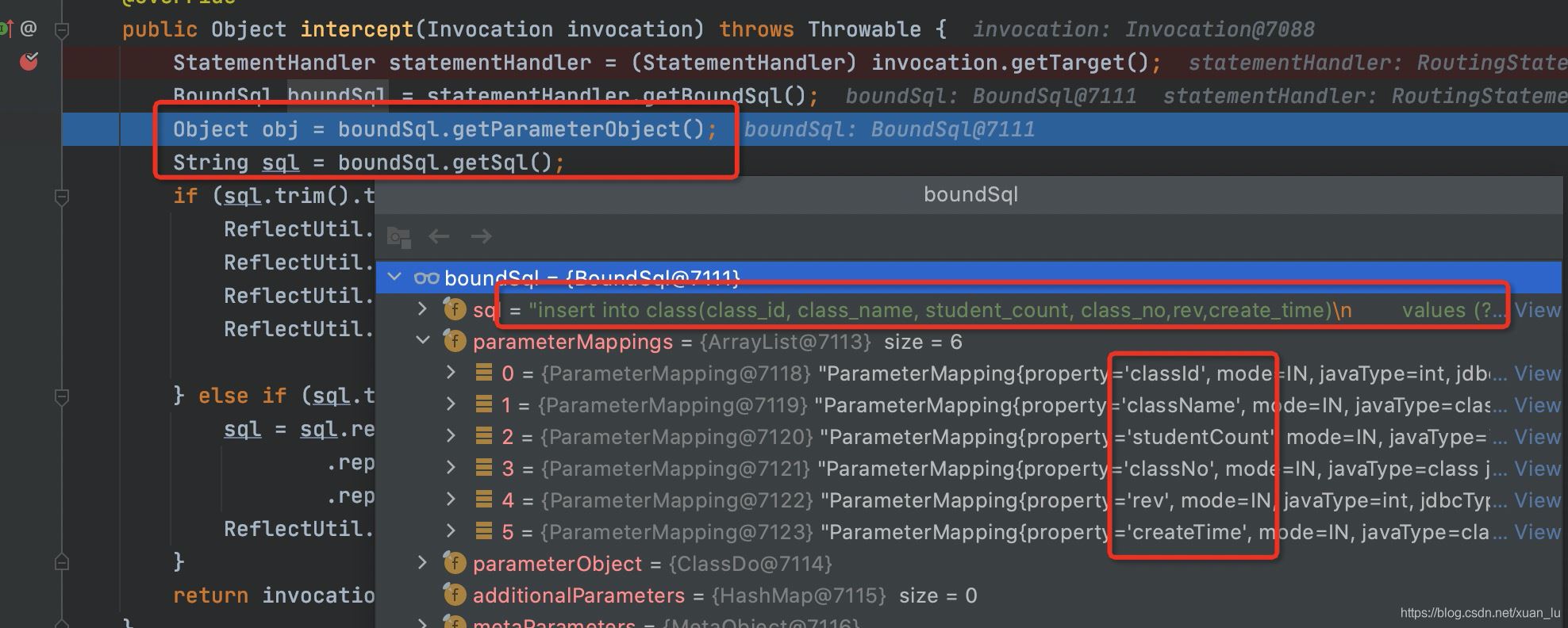

上图中能够看到BoundSql对象中主要存储的属性值,所以我们自定义拦截器时,主要针对BoundSql的属性值进行修改。

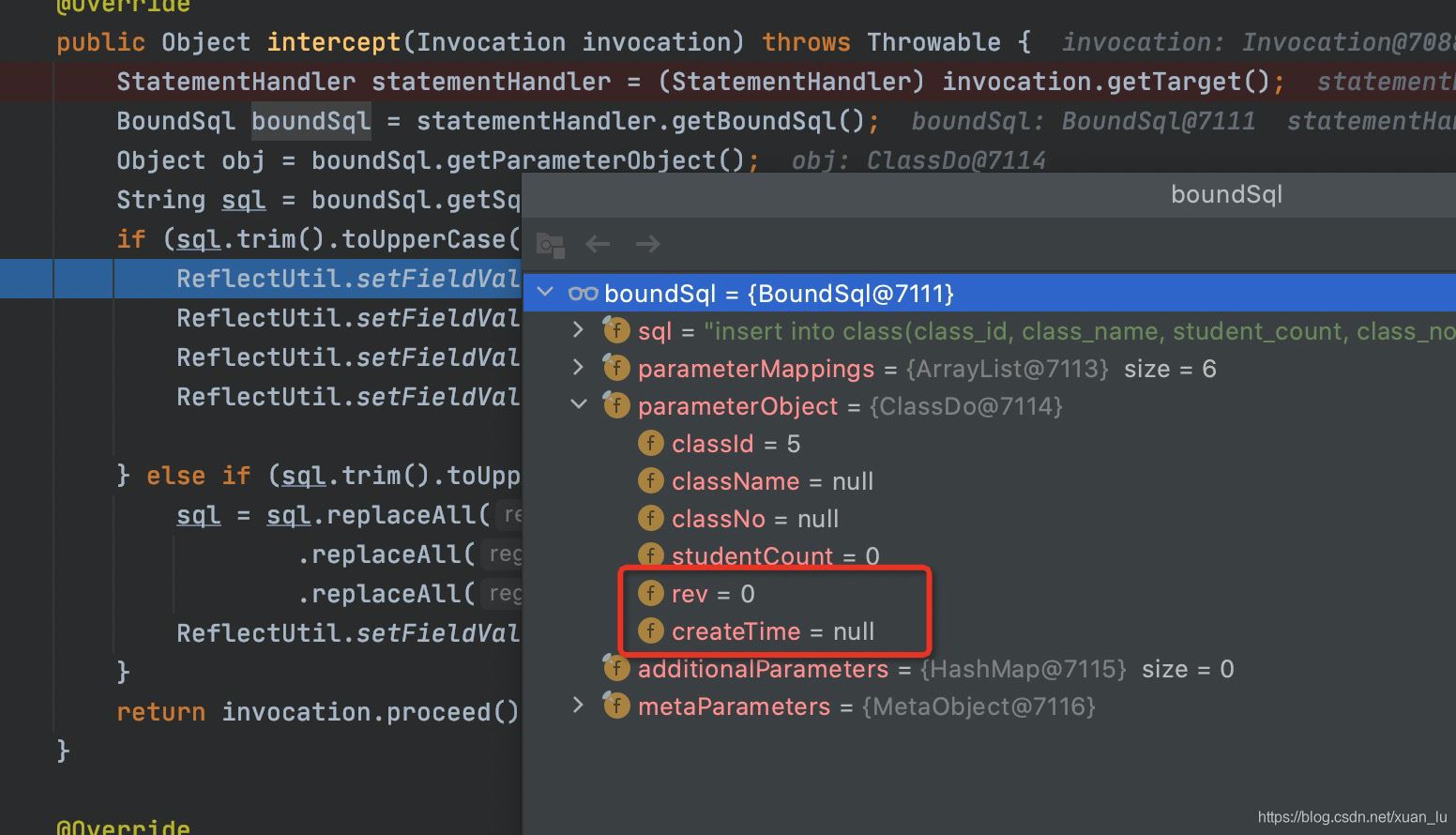

程序代码没有走到我们反射机制设置值的位置,测试createTime=null;

在这里插入图片描述

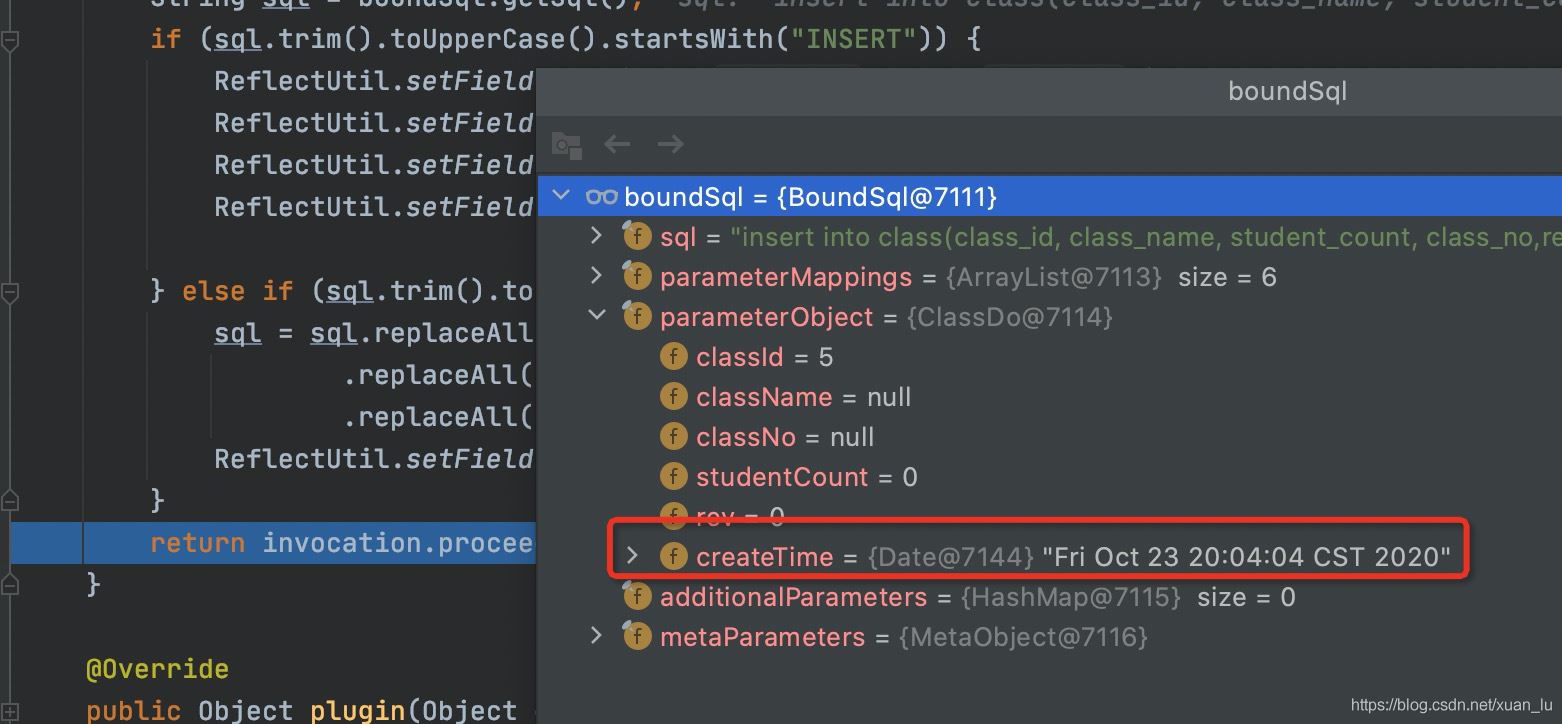

返回之前,看下BoundSql对象的值,创建时间已被赋值。

在这里插入图片描述

源代码:https://github.com/stream-source
