SpringMVC和rabbitmq集成的使用案例

1.添加maven依赖

<dependency>
 <groupId>com.rabbitmq</groupId>
 <artifactId>amqp-client</artifactId>
 <version>3.5.1</version>
</dependency>
<dependency>
 <groupId>org.springframework.amqp</groupId>
 <artifactId>spring-rabbit</artifactId>
 <version>1.4.5.RELEASE</version>
</dependency>

2.spring主配置文件中加入rabbitMQ xml文件的配置

<!-- rabbitMQ 配置 -->
 <import resource="/application-mq.xml"/>

3.jdbc配置文件中加入 rabbitmq的链接配置

#rabbitMQ配置
mq.host=localhost
mq.username=donghao
mq.password=donghao
mq.port=5672
mq.vhost=testMQ

4.新建application-mq.xml文件,添加配置信息

 <beans xmlns="http://www.springframework.org/schema/beans"
 xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
 xmlns:rabbit="http://www.springframework.org/schema/rabbit"
 xsi:schemaLocation="http://www.springframework.org/schema/beans
 http://www.springframework.org/schema/beans/spring-beans-3.0.xsd
 http://www.springframework.org/schema/rabbit
 http://www.springframework.org/schema/rabbit/spring-rabbit-1.0.xsd" >
 <description>rabbitmq 连接服务配置</description>
 <!-- 连接配置 -->
 <rabbit:connection-factory id="connectionFactory" host="${mq.host}" username="${mq.username}" password="${mq.password}" port="${mq.port}" virtual-host="${mq.vhost}"/>
 <rabbit:admin connection-factory="connectionFactory"/>
 <!-- spring template声明-->
 <rabbit:template exchange="koms" id="amqpTemplate" connection-factory="connectionFactory" message-converter="jsonMessageConverter" />
 <!-- 消息对象json转换类 -->
 <bean id="jsonMessageConverter" class="org.springframework.amqp.support.converter.Jackson2JsonMessageConverter" />
 <!--
  durable:是否持久化
  exclusive: 仅创建者可以使用的私有队列,断开后自动删除
  auto_delete: 当所有消费客户端连接断开后,是否自动删除队列
  -->
  <!-- 申明一个消息队列Queue -->
 <rabbit:queue id="order" name="order" durable="true" auto-delete="false" exclusive="false" />
  <rabbit:queue id="activity" name="activity" durable="true" auto-delete="false" exclusive="false" />
  <rabbit:queue id="mail" name="mail" durable="true" auto-delete="false" exclusive="false" />
  <rabbit:queue id="stock" name="stock" durable="true" auto-delete="false" exclusive="false" />
  <rabbit:queue id="autoPrint" name="autoPrint" durable="true" auto-delete="false" exclusive="false" />
 <!--
  rabbit:direct-exchange:定义exchange模式为direct,意思就是消息与一个特定的路由键完全匹配,才会转发。
 rabbit:binding:设置消息queue匹配的key
  -->
 <!-- 交换机定义 -->
 <rabbit:direct-exchange name="koms" durable="true" auto-delete="false" id="koms">
 <rabbit:bindings>
  <rabbit:binding queue="order" key="order"/>
   <rabbit:binding queue="activity" key="activity"/>
   <rabbit:binding queue="mail" key="mail"/>
   <rabbit:binding queue="stock" key="stock"/>
   <rabbit:binding queue="autoPrint" key="autoPrint"/>
 </rabbit:bindings>
</rabbit:direct-exchange>
 <!--
   queues:监听的队列,多个的话用逗号(,)分隔
  ref:监听器
  -->
 <!-- 配置监听 acknowledeg = "manual" 设置手动应答 当消息处理失败时:会一直重发 直到消息处理成功 -->
 <rabbit:listener-container connection-factory="connectionFactory" acknowledge="manual">
 <!-- 配置监听器 -->
  <rabbit:listener queues="activity" ref="activityListener"/>
   <rabbit:listener queues="order" ref="orderListener"/>
  <rabbit:listener queues="mail" ref="mailListener"/>
  <rabbit:listener queues="stock" ref="stockListener"/>
  <rabbit:listener queues="autoPrint" ref="autoPrintListener"/>
 </rabbit:listener-container>
</beans>

5.新增公共入队类

@Service
public class MQProducerImpl{
@Resource
 private AmqpTemplate amqpTemplate;
 private final static Logger logger = LoggerFactory.getLogger(MQProducerImpl.class);
 //公共入队方法
 public void sendDataToQueue(String queueKey, Object object) {
  try {
   amqpTemplate.convertAndSend(queueKey, object);
  } catch (Exception e) {
   logger.error(e.toString());
  }
 }
}

6.创建监听类

import java.io.IOException;
import java.util.List;
import javax.annotation.Resource;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.amqp.core.Message;
import org.springframework.amqp.rabbit.core.ChannelAwareMessageListener;
import org.springframework.amqp.utils.SerializationUtils;
import org.springframework.stereotype.Component;
import org.springframework.transaction.annotation.Transactional;
import com.cn.framework.domain.BaseDto;
import com.cn.framework.util.ConstantUtils;
import com.cn.framework.util.RabbitMq.producer.MQProducer;
import com.kxs.service.activityService.IActivityService;
import com.kxs.service.messageService.IMessageService;
import com.rabbitmq.client.Channel;
/**
 * 活动处理listener
* @author
* @date 2017年6月30日
**/
@Component
public class ActivityListener implements ChannelAwareMessageListener {
 private static final Logger log = LoggerFactory.getLogger(ActivityListener.class);
 @Override
 @Transactional
 public void onMessage(Message message,Channel channel) {
 }
}

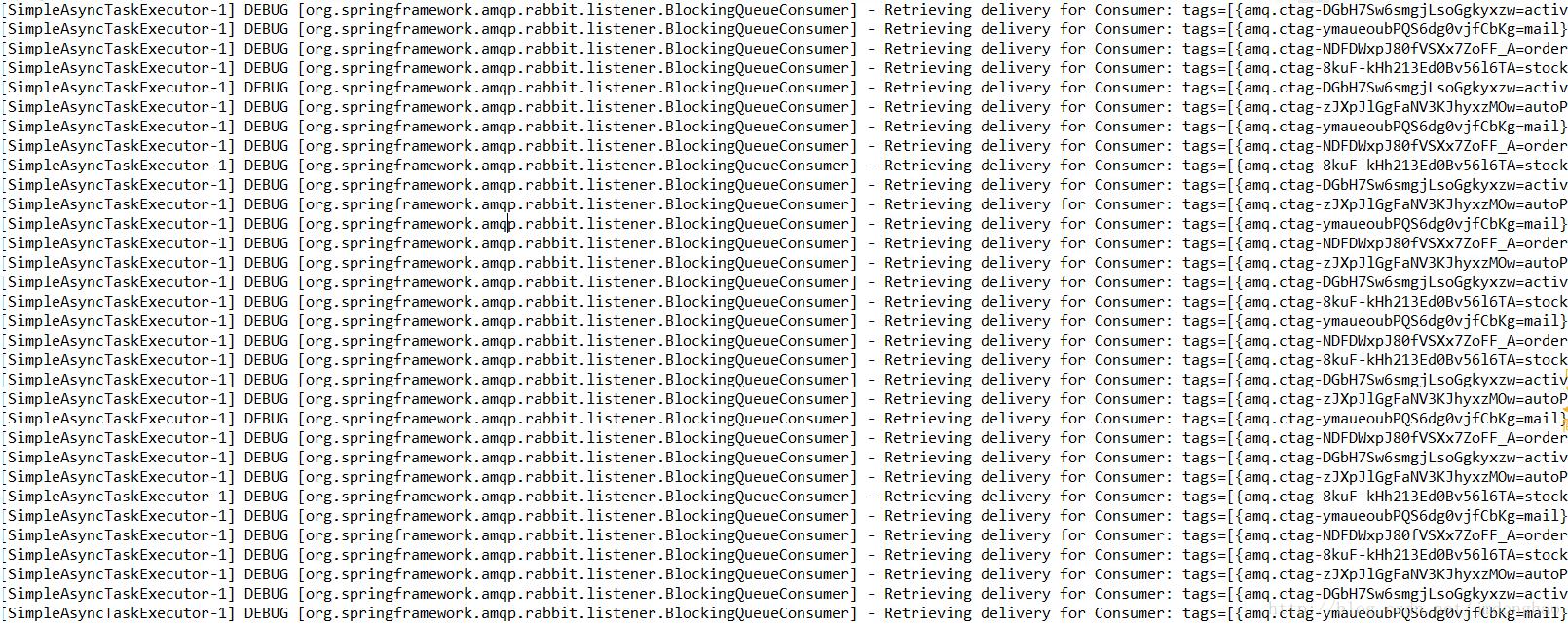

项目启动后 控制台会打印出监听的日志信息 这里写图片描述

结尾:仅供参考,自己用作学习记录,不喜勿喷,共勉!

补充:RabbitMQ与SpringMVC集成并实现发送消息和接收消息(持久化)方案

RabbitMQ本篇不介绍了,直接描述RabbitMQ与SpringMVC集成并实现发送消息和接收消息(持久化)。

使用了Spring-rabbit 发送消息和接收消息,我们使用的Maven来管理Jar包,在Maven的pom.xml文件中引入jar包

<span style="font-size:18px;"> <dependency>
  <groupId>org.springframework.amqp</groupId>
  <artifactId>spring-rabbit</artifactId>
   <version>1.3.6.RELEASE</version>
 </dependency></span>

1.实现生产者

第一步:是要设置调用安装RabbitMQ的IP、端口等

配置一个global.properties文件

第二步:通过SpringMVC把global.properties文件读进来

<span style="font-size:18px;"><!-- 注入属性文件 -->
 <bean id="propertyConfigurer" class="org.springframework.beans.factory.config.PropertyPlaceholderConfigurer">
  <property name="locations">
   <list>
    <value>classpath:global.properties</value>
   </list>
  </property>
 </bean> </span>

第三步:配置 RabbitMQ服务器连接、创建rabbitTemplate 消息模板类等,在SpringMVC的配置文件加入下面这些

<bean id="rmqProducer2" class="cn.test.spring.rabbitmq.RmqProducer"></bean>
<span style="font-size:18px;"> <!-- 创建连接类 -->
 <bean id="connectionFactory" class="org.springframework.amqp.rabbit.connection.CachingConnectionFactory">
  <constructor-arg value="localhost" />
  <property name="username" value="${rmq.manager.user}" />
  <property name="password" value="${rmq.manager.password}" />
  <property name="host" value="${rmq.ip}" />
  <property name="port" value="${rmq.port}" />
 </bean>

 <bean id="rabbitAdmin" class="org.springframework.amqp.rabbit.core.RabbitAdmin">
  <constructor-arg ref="connectionFactory" />
 </bean>
  <!-- 创建rabbitTemplate 消息模板类 -->
 <bean id="rabbitTemplate" class="org.springframework.amqp.rabbit.core.RabbitTemplate">
  <constructor-arg ref="connectionFactory"></constructor-arg>
 </bean> </span>

第四步:实现消息类实体和发送消息

类实体

<span style="font-size:18px;">/**
 * 消息
 *
 */
public class RabbitMessage implements Serializable
{
	private static final long serialVersionUID = -6487839157908352120L;
	private Class<?>[] paramTypes;//参数类型
	private String exchange;//交换器
	private Object[] params;
	private String routeKey;//路由key
	public RabbitMessage(){}
	public RabbitMessage(String exchange,String routeKey,Object...params)
	{
		this.params=params;
		this.exchange=exchange;
		this.routeKey=routeKey;
	}

	@SuppressWarnings("rawtypes")
	public RabbitMessage(String exchange,String routeKey,String methodName,Object...params)
	{
		this.params=params;
		this.exchange=exchange;
		this.routeKey=routeKey;
		int len=params.length;
		Class[] clazzArray=new Class[len];
		for(int i=0;i<len;i++)
			clazzArray[i]=params[i].getClass();
		this.paramTypes=clazzArray;
	}

	public byte[] getSerialBytes()
	{
		byte[] res=new byte[0];
		ByteArrayOutputStream baos=new ByteArrayOutputStream();
		ObjectOutputStream oos;
		try {
			oos = new ObjectOutputStream(baos);
			oos.writeObject(this);
			oos.close();
			res=baos.toByteArray();
		} catch (IOException e) {
			e.printStackTrace();
		}
		return res;
	}

	public String getRouteKey() {
		return routeKey;
	}

	public String getExchange() {
		return exchange;
	}

	public void setExchange(String exchange) {
		this.exchange = exchange;
	}

	public void setRouteKey(String routeKey) {
		this.routeKey = routeKey;
	}

	public Class<?>[] getParamTypes() {
		return paramTypes;
	}

	public Object[] getParams() {
		return params;
	}
}
</span>

发送消息

<span style="font-size:18px;">/**
 * 生产着
 *
 */
public class RmqProducer
{
 @Resource
 private RabbitTemplate rabbitTemplate;
 /**
 * 发送信息
 * @param msg
 */
 public void sendMessage(RabbitMessage msg)
 {
 try {
 System.out.println(rabbitTemplate.getConnectionFactory().getHost());
 System.out.println(rabbitTemplate.getConnectionFactory().getPort());
 //发送信息
  rabbitTemplate.convertAndSend(msg.getExchange(), msg.getRouteKey(), msg);
 } catch (Exception e) {
 }
 }
}</span>

说明:

1. rabbitTemplate.convertAndSend(msg.getExchange(), msg.getRouteKey(), msg);

源代码中的send调用的方法,一些发送消息帮我们实现好了。

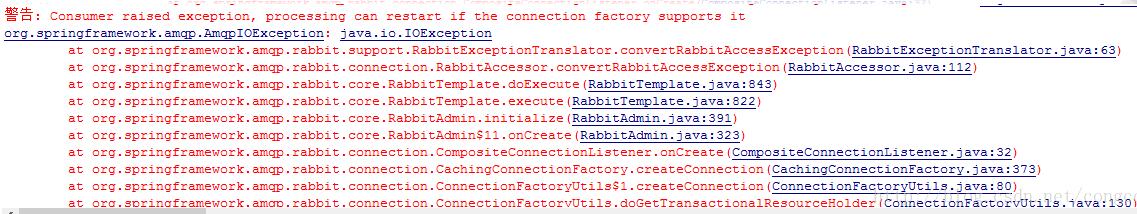

2.上面的代码实现没申明交换器和队列,RabbitMQ不知交换器和队列他们的绑定关系,如果RabbitMQ管理器上没有对应的交换器和队列是不会新建的和关联的,需要手动关联。

我们也可以用代码申明:

rabbitAdmin要申明:eclareExchange方法 参数是交换器

BindingBuilder.bind(queue).to(directExchange).with(queueName);//将queue绑定到exchange
rabbitAdmin.declareBinding(binding);//声明绑定关系

源代码有这些方法:

这样就可以实现交换器和队列的绑定关系

交换器我们可以申明为持久化,还有使用完不会自动删除

TopicExchange 参数的说明:name是交换器名称,durable:true 是持久化 autoDelete:false使用完不删除

源代码:

队列也可以申明为持久化

第五步:实现测试类

<span style="font-size:18px;">@Resource
 private RmqProducer rmqProducer2;
 @Test
 public void test() throws IOException
 {
 String exchange="testExchange";交换器
 String routeKey="testQueue";//队列
 String methodName="test";//调用的方法
 //参数
 Map<String,Object> param=new HashMap<String, Object>();
 param.put("data","hello");

 RabbitMessage msg=new RabbitMessage(exchange,routeKey, methodName, param);
 //发送消息
 rmqProducer2.sendMessage(msg);

 }</span>

结果:RabbitMQ有一条消息

2.消费者

第一步:RabbitMQ服务器连接这些在生产者那边已经介绍了,这边就不介绍了,我们要配置 RabbitMQ服务器连接、创建rabbitTemplate 消息模板类、消息转换器、消息转换器监听器等,在SpringMVC的配置文件加入下面这些

<span style="font-size:18px;"> <!-- 创建连接类 -->
 <bean id="connectionFactory" class="org.springframework.amqp.rabbit.connection.CachingConnectionFactory">
  <constructor-arg value="localhost" />
  <property name="username" value="${rmq.manager.user}" />
  <property name="password" value="${rmq.manager.password}" />
  <property name="host" value="${rmq.ip}" />
  <property name="port" value="${rmq.port}" />
 </bean>

 <bean id="rabbitAdmin" class="org.springframework.amqp.rabbit.core.RabbitAdmin">
  <constructor-arg ref="connectionFactory" />
 </bean>
  <!-- 创建rabbitTemplate 消息模板类 -->
 <bean id="rabbitTemplate" class="org.springframework.amqp.rabbit.core.RabbitTemplate">
  <constructor-arg ref="connectionFactory"></constructor-arg>
 </bean>

  <!-- 创建消息转换器为SimpleMessageConverter -->
 <bean id="serializerMessageConverter" class="org.springframework.amqp.support.converter.SimpleMessageConverter"></bean>

 <!-- 设置持久化的队列 -->
 <bean id="queue" class="org.springframework.amqp.core.Queue">
  <constructor-arg index="0" value="testQueue"></constructor-arg>
  <constructor-arg index="1" value="true"></constructor-arg>
  <constructor-arg index="2" value="false"></constructor-arg>
  <constructor-arg index="3" value="false"></constructor-arg>
 </bean>

  <!--创建交换器的类型 并持久化-->
 <bean id="topicExchange" class="org.springframework.amqp.core.TopicExchange">
  <constructor-arg index="0" value="testExchange"></constructor-arg>
  <constructor-arg index="1" value="true"></constructor-arg>
  <constructor-arg index="2" value="false"></constructor-arg>
 </bean>

 <util:map id="arguments">
 </util:map>

 <!-- 绑定交换器、队列 -->

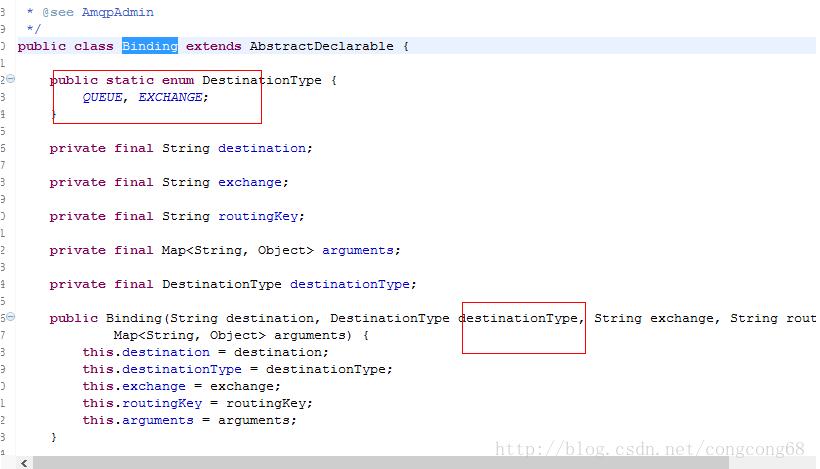

 <bean id="binding" class="org.springframework.amqp.core.Binding">
  <constructor-arg index="0" value="testQueue"></constructor-arg>
  <constructor-arg index="1" value="QUEUE"></constructor-arg>
  <constructor-arg index="2" value="testExchange"></constructor-arg>
  <constructor-arg index="3" value="testQueue"></constructor-arg>
  <constructor-arg index="4" value="#{arguments}"></constructor-arg>
 </bean>


 <!-- 用于接收消息的处理类 -->
 <bean id="rmqConsumer" class="cn.test.spring.rabbitmq.RmqConsumer"></bean>

 <bean id="messageListenerAdapter" class="org.springframework.amqp.rabbit.listener.adapter.MessageListenerAdapter">
  <constructor-arg ref="rmqConsumer" />
  <property name="defaultListenerMethod" value="rmqProducerMessage"></property>
  <property name="messageConverter" ref="serializerMessageConverter"></property>
 </bean>

 <!-- 用于消息的监听的容器类SimpleMessageListenerContainer,监听队列 queues可以传多个-->
 <bean id="listenerContainer" class="org.springframework.amqp.rabbit.listener.SimpleMessageListenerContainer">
  <property name="queues" ref="queue"></property>
  <property name="connectionFactory" ref="connectionFactory"></property>
  <property name="messageListener" ref="messageListenerAdapter"></property>
 </bean>
 </span>

说明:

1.org.springframework.amqp.rabbit.listener.SimpleMessageListenerContainer中的queues可以传入多个队列

2.org.springframework.amqp.rabbit.listener.adapter.MessageListenerAdapter

有哪个消费者适配器来处理 ,参数defaultListenerMethod是默认调用方法来处理消息。

3.交换器和队列的持久化在生产者有介绍过了。

4.org.springframework.amqp.core.Binding这个类的绑定,在SpringMVC配置文件中配置时,

DestinationType这个参数要注意点

源代码:

第二步:处理消息

<span style="font-size:18px;">/**
 * 消费者
 *
 */
public class RmqConsumer
{
 public void rmqProducerMessage(Object object){
 RabbitMessage rabbitMessage=(RabbitMessage) object;
 System.out.println(rabbitMessage.getExchange());
 System.out.println(rabbitMessage.getRouteKey());
 System.out.println(rabbitMessage.getParams().toString());
 }
}</span>

在启动过程中会报这样的错误,可能是你的交换器和队列没配置好

以上为个人经验,希望能给大家一个参考,也希望大家多多支持自学编程网。如有错误或未考虑完全的地方,望不吝赐教。

编程技巧
