聊聊注解@Aspect的AOP实现操作

Spring只支持XML方式而没有实现注解的方式(也叫AspectJ方式)的AOP,所以要使用@Aspect注解,只能引入AspectJ相关的 jar 包 aopalliance-1.0.jar 和 aspectjweaver.jar,这个坑把我给坑惨了。

使用步骤如下:

1、引入相关jar包

2、Spring的配置文件 applicationContext.xml 中引入context、aop对应的命名空间;配置自动扫描的包,同时使切面类中相关方法中的注解生效,需自动地为匹配到的方法所在的类生成代理对象。

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
 xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
 xmlns:aop="http://www.springframework.org/schema/aop"
 xmlns:context="http://www.springframework.org/schema/context"
 xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
 http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-4.0.xsd
 http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.0.xsd">
 <!-- 配置自动扫描的包 -->
 <context:component-scan base-package="com.qcc.beans.aop"></context:component-scan>
 <!-- 自动为切面方法中匹配的方法所在的类生成代理对象。 -->
 <aop:aspectj-autoproxy></aop:aspectj-autoproxy>
</beans>

3、创建简单计算器的接口ArithmeticCalculator.java及实现类ArithmeticCalculatorImpl.java

package com.qcc.beans.aop;
public interface ArithmeticCalculator {
 int add(int i, int j);
 int sub(int i, int j);
 int mul(int i, int j);
 int div(int i, int j);
}
package com.qcc.beans.aop;
import org.springframework.stereotype.Component;
//将实现类加入Spring的IOC容器进行管理
@Component("arithmeticCalculator")
public class ArithmeticCalculatorImpl implements ArithmeticCalculator {
 @Override
 public int add(int i, int j) {
 int result = i + j;
 return result;
 }
 @Override
 public int sub(int i, int j) {
 int result = i - j;
 return result;
 }
 @Override
 public int mul(int i, int j) {
 int result = i * j;
 return result;
 }
 @Override
 public int div(int i, int j) {
 int result = i / j;
 return result;
 }
}

4、现在想在实现类中的每个方法执行前、后、以及是否发生异常等信息打印出来,需要把日志信息抽取出来,写到对应的切面的类中 LoggingAspect.java 中

要想把一个类变成切面类,需要两步,

① 在类上使用 @Component 注解 把切面类加入到IOC容器中

② 在类上使用 @Aspect 注解 使之成为切面类

下面直接上完整代码,用@Aspect注解方式来实现前置通知、返回通知、后置通知、异常通知、环绕通知。

package com.qcc.beans.aop;
import java.util.Arrays;
import org.aspectj.lang.JoinPoint;
import org.aspectj.lang.ProceedingJoinPoint;
import org.aspectj.lang.annotation.After;
import org.aspectj.lang.annotation.AfterReturning;
import org.aspectj.lang.annotation.AfterThrowing;
import org.aspectj.lang.annotation.Around;
import org.aspectj.lang.annotation.Aspect;
import org.aspectj.lang.annotation.Before;
import org.springframework.stereotype.Component;
/**
 * 日志切面
 *
 * @author QianChaoChen 00002336<br>
 * @date 2017年3月3日 下午3:03:29
 */
@Component
@Aspect
public class LoggingAspect {
 /**
 * 前置通知:目标方法执行之前执行以下方法体的内容
 * @param jp
 */
 @Before("execution(* com.qcc.beans.aop.*.*(..))")
 public void beforeMethod(JoinPoint jp){
 String methodName = jp.getSignature().getName();
 System.out.println("【前置通知】the method 【" + methodName + "】 begins with " + Arrays.asList(jp.getArgs()));
 }
 /**
 * 返回通知:目标方法正常执行完毕时执行以下代码
 * @param jp
 * @param result
 */
 @AfterReturning(value="execution(* com.qcc.beans.aop.*.*(..))",returning="result")
 public void afterReturningMethod(JoinPoint jp, Object result){
 String methodName = jp.getSignature().getName();
 System.out.println("【返回通知】the method 【" + methodName + "】 ends with 【" + result + "】");
 }
 /**
 * 后置通知:目标方法执行之后执行以下方法体的内容,不管是否发生异常。
 * @param jp
 */
 @After("execution(* com.qcc.beans.aop.*.*(..))")
 public void afterMethod(JoinPoint jp){
 System.out.println("【后置通知】this is a afterMethod advice...");
 }
 /**
 * 异常通知:目标方法发生异常的时候执行以下代码
 */
 @AfterThrowing(value="execution(* com.qcc.beans.aop.*.*(..))",throwing="e")
 public void afterThorwingMethod(JoinPoint jp, NullPointerException e){
 String methodName = jp.getSignature().getName();
 System.out.println("【异常通知】the method 【" + methodName + "】 occurs exception: " + e);
 }
// /**
// * 环绕通知:目标方法执行前后分别执行一些代码,发生异常的时候执行另外一些代码
// * @return
// */
// @Around(value="execution(* com.qcc.beans.aop.*.*(..))")
// public Object aroundMethod(ProceedingJoinPoint jp){
// String methodName = jp.getSignature().getName();
// Object result = null;
// try {
//  System.out.println("【环绕通知中的--->前置通知】:the method 【" + methodName + "】 begins with " + Arrays.asList(jp.getArgs()));
//  //执行目标方法
//  result = jp.proceed();
//  System.out.println("【环绕通知中的--->返回通知】:the method 【" + methodName + "】 ends with " + result);
// } catch (Throwable e) {
//  System.out.println("【环绕通知中的--->异常通知】:the method 【" + methodName + "】 occurs exception " + e);
// }
//
// System.out.println("【环绕通知中的--->后置通知】:-----------------end.----------------------");
// return result;
// }
}

5、编写Main方法进行测试

package com.qcc.beans.aop;
import org.springframework.context.ApplicationContext;
import org.springframework.context.support.ClassPathXmlApplicationContext;
public class Main {
 public static void main(String[] args) {
 ApplicationContext ctx = new ClassPathXmlApplicationContext("applicationContext.xml");
 ArithmeticCalculator arithmeticCalculator = (ArithmeticCalculator) ctx.getBean("arithmeticCalculator");
 System.out.println(arithmeticCalculator.getClass());
 int result = arithmeticCalculator.add(3, 5);
 System.out.println("result: " + result);
 result = arithmeticCalculator.div(5, 0);
 System.out.println("result: " + result);
 }
}


运行结果:

class com.sun.proxy.$Proxy10
【前置通知】the method 【add】 begins with [3, 5]
【后置通知】this is a afterMethod advice...
【返回通知】the method 【add】 ends with 【8】
result: 8
【前置通知】the method 【div】 begins with [5, 0]
【后置通知】this is a afterMethod advice...
Exception in thread "main" java.lang.ArithmeticException: / by zero
 at com.qcc.beans.aop.ArithmeticCalculatorImpl.div(ArithmeticCalculatorImpl.java:28)
 at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
 at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:57)
 at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
 at java.lang.reflect.Method.invoke(Method.java:606)
 at org.springframework.aop.support.AopUtils.invokeJoinpointUsingReflection(AopUtils.java:317)
 at org.springframework.aop.framework.ReflectiveMethodInvocation.invokeJoinpoint(ReflectiveMethodInvocation.java:190)
 at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:157)
 at org.springframework.aop.framework.adapter.MethodBeforeAdviceInterceptor.invoke(MethodBeforeAdviceInterceptor.java:52)
 at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:179)
 at org.springframework.aop.aspectj.AspectJAfterAdvice.invoke(AspectJAfterAdvice.java:43)
 at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:179)
 at org.springframework.aop.framework.adapter.AfterReturningAdviceInterceptor.invoke(AfterReturningAdviceInterceptor.java:52)
 at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:179)
 at org.springframework.aop.aspectj.AspectJAfterThrowingAdvice.invoke(AspectJAfterThrowingAdvice.java:58)
 at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:179)
 at org.springframework.aop.interceptor.ExposeInvocationInterceptor.invoke(ExposeInvocationInterceptor.java:92)
 at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:179)
 at org.springframework.aop.framework.JdkDynamicAopProxy.invoke(JdkDynamicAopProxy.java:207)
 at com.sun.proxy.$Proxy10.div(Unknown Source)
 at com.qcc.beans.aop.Main.main(Main.java:15)

把其它代码都注释掉,把环绕通知的方法释放出来,测试结果如下:

【环绕通知中的--->前置通知】:the method 【add】 begins with [3, 5]
【环绕通知中的--->返回通知】:the method 【add】 ends with 8
【环绕通知中的--->后置通知】:-----------------end.----------------------
result: 8
【环绕通知中的--->前置通知】:the method 【div】 begins with [5, 0]
【环绕通知中的--->异常通知】:the method 【div】 occurs exception java.lang.ArithmeticException: / by zero
【环绕通知中的--->后置通知】:-----------------end.----------------------
Exception in thread "main" org.springframework.aop.AopInvocationException: Null return value from advice does not match primitive return type for: public abstract int com.qcc.beans.aop.ArithmeticCalculator.div(int,int)
 at org.springframework.aop.framework.JdkDynamicAopProxy.invoke(JdkDynamicAopProxy.java:219)
 at com.sun.proxy.$Proxy7.div(Unknown Source)
 at com.qcc.beans.aop.Main.main(Main.java:15)

从以上发现,返回通知和异常通知不会同时出现;不管是否发生异常,后置通知都会正常打印。

补充:基于@Aspect实现AOP的两种方式

第一种:

package com.anno;
import java.lang.annotation.ElementType;
import java.lang.annotation.Retention;
import java.lang.annotation.RetentionPolicy;
import java.lang.annotation.Target;
@Retention(RetentionPolicy.RUNTIME) //什么时候运行和结束
@Target( {ElementType.METHOD , ElementType.TYPE}) //能放在哪里.
public @interface AnnotationTwo {
}
package com.anno;
import org.aspectj.lang.ProceedingJoinPoint;
import org.aspectj.lang.annotation.Around;
import org.aspectj.lang.annotation.Aspect;
import org.aspectj.lang.annotation.Pointcut;
import org.springframework.context.annotation.EnableAspectJAutoProxy;
import org.springframework.stereotype.Component;
@Aspect
@Component
@EnableAspectJAutoProxy
public class AspectAnnotationTOW {
 @Pointcut("@annotation(AnnotationTwo)")
 public void aspectTow(){

 }

 @Around("aspectTow()")
 public void aspectservice(ProceedingJoinPoint joinPoint){
 System.out.println(111);
 try {
 Object proceed = joinPoint.proceed();
 } catch (Throwable e) {
 e.printStackTrace();
 }
 }

}

第二种:

package com.testAnnotation;
import java.lang.annotation.ElementType;
import java.lang.annotation.Retention;
import java.lang.annotation.RetentionPolicy;
import java.lang.annotation.Target;

@Retention(RetentionPolicy.RUNTIME) //什么时候运行和结束
@Target( {ElementType.METHOD , ElementType.TYPE}) //能放在哪里.
public @interface AnnotationOfTest {
 public String say();
 public long howLong() default Long.MAX_VALUE;
}
package com.testAnnotation;
import org.aspectj.lang.ProceedingJoinPoint;
import org.aspectj.lang.annotation.Around;
import org.aspectj.lang.annotation.Aspect;
import org.springframework.context.annotation.EnableAspectJAutoProxy;
import org.springframework.stereotype.Component;
import com.rabbitmq.tools.jsonrpc.ProcedureDescription;
@Component
@EnableAspectJAutoProxy
@Aspect
public class AspectAnnotation {
 @Around("@annotation(annotationOfTest)")
 public Object interceptor(ProceedingJoinPoint pjp, AnnotationOfTest annotationOfTest ) {
 String say = annotationOfTest.say();
 long howlong = annotationOfTest.howLong();
 try {
 System.out.println(say+"\t"+howlong);
 Object object = pjp.proceed();
 return object;
 } catch (Throwable e) {
 e.printStackTrace();
 }
 return null;
 }
 }

配置文件:

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
 xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:util="http://www.springframework.org/schema/util"
 xmlns:p="http://www.springframework.org/schema/p" xmlns:aop="http://www.springframework.org/schema/aop"
 xmlns:tx="http://www.springframework.org/schema/tx" xmlns:context="http://www.springframework.org/schema/context"
 xsi:schemaLocation="
 http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-4.3.xsd
 http://www.springframework.org/schema/util http://www.springframework.org/schema/util/spring-util-4.3.xsd
 http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-4.3.xsd
 http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-4.3.xsd
 http://www.springframework.org/schema/context
 http://www.springframework.org/schema/context/spring-context-4.3.xsd">

 <context:component-scan base-package="com.testAnnotation"></context:component-scan>
 <context:component-scan base-package="com.service"></context:component-scan>
 <context:component-scan base-package="com.anno"></context:component-scan>
 <aop:aspectj-autoproxy proxy-target-class="true"></aop:aspectj-autoproxy>

 </beans>
service:
package com.service;
import java.util.Date;
import org.springframework.stereotype.Service;
import com.anno.AnnotationTwo;
import com.testAnnotation.AnnotationOfTest;

@Service
public class service {
 @AnnotationTwo
 public void go()
 {
 System.out.println(new Date().toLocaleString());
 }
}

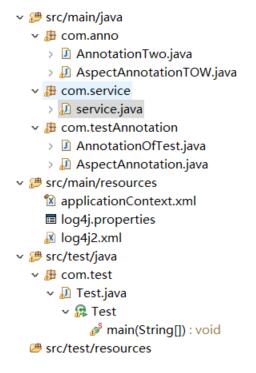

项目结构:

测试:

package com.test;

import org.springframework.context.ApplicationContext;
import org.springframework.context.support.ClassPathXmlApplicationContext;

import com.service.service;
import com.testAnnotation.AnnotationOfTest;

public class Test {
 public static void main(String[] args) {
 ApplicationContext applicationContext = new ClassPathXmlApplicationContext("applicationContext.xml");
 service bean = applicationContext.getBean(service.class);
 bean.go();
 }
}

所需要的包:

以上为个人经验,希望能给大家一个参考,也希望大家多多支持自学编程网。如有错误或未考虑完全的地方,望不吝赐教。
