IDEA下创建SpringBoot+MyBatis+MySql项目实现动态登录与注册功能

一、搭建SpringBoot项目

1.1、file ——> new ——> project——> Spring Initializr——> next——> next——> next——> finish

注意选择包依赖关系

在这里插入图片描述

二、springboot整合mybatis.mysql

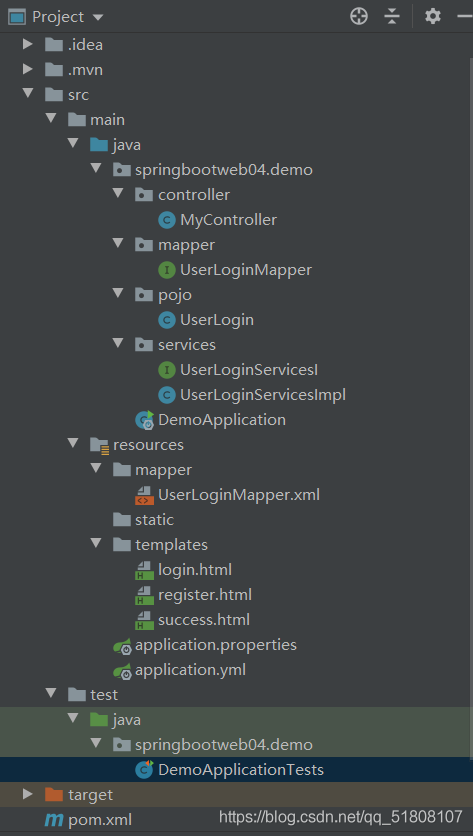

2.1、整体结构

在这里插入图片描述

2.2、设置所需要的依赖

即pom.xml文件

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
 xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
 <modelVersion>4.0.0</modelVersion>
 <parent>
 <groupId>org.springframework.boot</groupId>
 <artifactId>spring-boot-starter-parent</artifactId>
 <version>2.4.2</version>
 <relativePath/> <!-- lookup parent from repository -->
 </parent>
 <groupId>springboot-web04</groupId>
 <artifactId>demo</artifactId>
 <version>0.0.1-SNAPSHOT</version>
 <name>demo</name>
 <description>Demo project for Spring Boot</description>
 <properties>
 <java.version>1.8</java.version>
 </properties>
 <dependencies>
 <dependency>
 <groupId>org.springframework.boot</groupId>
 <artifactId>spring-boot-starter-data-jdbc</artifactId>
 </dependency>
 <dependency>
 <groupId>org.springframework.boot</groupId>
 <artifactId>spring-boot-starter-jdbc</artifactId>
 </dependency>
 <dependency>
 <groupId>org.springframework.boot</groupId>
 <artifactId>spring-boot-starter-thymeleaf</artifactId>
 </dependency>
 <dependency>
 <groupId>org.springframework.boot</groupId>
 <artifactId>spring-boot-starter-web</artifactId>
 </dependency>

 <dependency>
 <groupId>mysql</groupId>
 <artifactId>mysql-connector-java</artifactId>
 <scope>runtime</scope>
 </dependency>
 <dependency>
 <groupId>org.springframework.boot</groupId>
 <artifactId>spring-boot-starter-test</artifactId>
 <scope>test</scope>
 </dependency>
<!--下面的都是我加的-->
 <dependency>
 <groupId>org.springframework.boot</groupId>
 <artifactId>spring-boot-starter-jdbc</artifactId>
 </dependency>
 <dependency>
 <groupId>org.springframework.boot</groupId>
 <artifactId>spring-boot-starter-thymeleaf</artifactId>
 </dependency>
 <dependency>
 <groupId>org.springframework.boot</groupId>
 <artifactId>spring-boot-starter-web</artifactId>
 </dependency>

 <dependency>
 <groupId>org.mybatis.spring.boot</groupId>
 <artifactId>mybatis-spring-boot-starter</artifactId>
 <version>2.1.3</version>
 </dependency>

 <dependency>
 <groupId>mysql</groupId>
 <artifactId>mysql-connector-java</artifactId>
 </dependency>

 <dependency>
 <groupId>org.projectlombok</groupId>
 <artifactId>lombok</artifactId>
 <version>1.18.12</version>
 <scope>provided</scope>
 </dependency>

 <dependency>
 <groupId>com.alibaba</groupId>
 <artifactId>druid</artifactId>
 <version>1.2.1</version>
 </dependency>

 <dependency>
 <groupId>org.springframework.boot</groupId>
 <artifactId>spring-boot-starter-test</artifactId>
 <scope>test</scope>
 <exclusions>
 <exclusion>
 <groupId>org.junit.vintage</groupId>
 <artifactId>junit-vintage-engine</artifactId>
 </exclusion>
 </exclusions>
 </dependency>
 <dependency>
 <groupId>org.xmlunit</groupId>
 <artifactId>xmlunit-core</artifactId>
 </dependency>
 <dependency>
 <groupId>org.mybatis</groupId>
 <artifactId>mybatis</artifactId>
 <version>3.4.6</version>
 </dependency>
 </dependencies>

 <build>
 <plugins>
 <plugin>
 <groupId>org.springframework.boot</groupId>
 <artifactId>spring-boot-maven-plugin</artifactId>
 </plugin>
 </plugins>
 </build>

</project>

2.3、设置application.yml文件与pplication.properties文件

在resources目录下新建yml文件,用于存放数据库连接需要的一些数据

spring:
 datasource:
 driver-class-name: com.mysql.cj.jdbc.Driver
 url: jdbc:mysql://localhost:3306/mybatis?serverTimezone=GMT%2B8&useSSL=true
 username: root //数据库
 password: sm1208 //密码

在application.properties文件中加入

#端口号
server.port=8080
#druid数据库连接池
type=com.alibaba.druid.pool.DruidDataSource
#清除缓存
spring.thymeleaf.cache=false
#配置mapper
mybatis.mapper-locations=classpath:mapper/*.xml

2.4、在pojo下的新建类UserLogin

package springbootweb04.demo.pojo;

import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;

@Data
@AllArgsConstructor
@NoArgsConstructor

public class UserLogin {
 private String username;
 private String password;

 public String getUsername() {
 return username;
 }
}

2.5、新建数据库,名为mybatis,创建用户表,名为userLogin,创建username、password字段

2.5.1、数据库名可以随意,不过要与application.yml文件中的一致

在这里插入图片描述

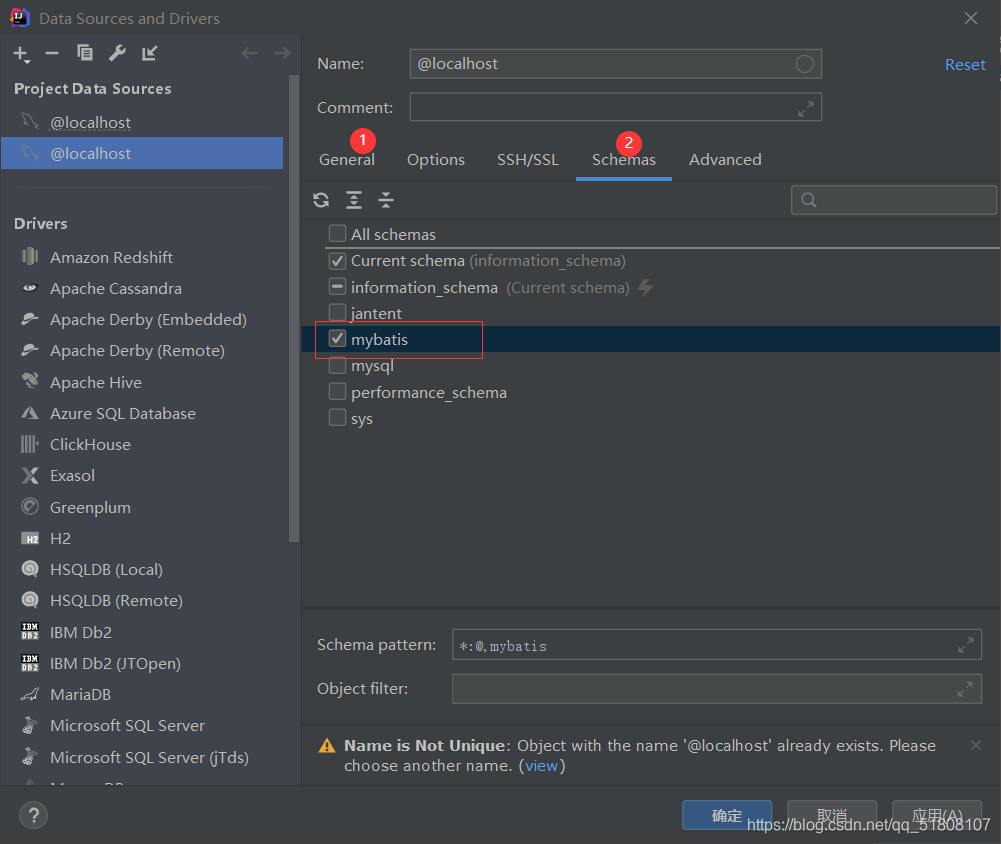

2.5.2、IDEA中连接数据库

Database——> +——> Data Source——> Mysql

在这里插入图片描述

在这里插入图片描述

2.6、mapper层

新建UserLoginMapper接口

package springbootweb04.demo.mapper;

import org.apache.ibatis.annotations.Mapper;
import org.springframework.stereotype.Repository;
import springbootweb04.demo.pojo.UserLogin;

import java.util.List;

@Mapper
@Repository
public interface UserLoginMapper {
 //查询
 public List<UserLogin> queryAll();
 //添加数据
 public int add(UserLogin userLogin);
 //根据用户名查询数据
 public UserLogin queryByName(String username);
}

2.7、resources目录下的mapper目录

在resources目录下新建mapper目录,并在这个目录下新建UserLoginMapper.xml文件

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
 PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
 "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="springbootweb04.demo.mapper.UserLoginMapper">
 <select id="queryAll" resultType="springbootweb04.demo.pojo.UserLogin">
 select * from userLogin
 </select>

 <insert id="add" parameterType="springbootweb04.demo.pojo.UserLogin">
 insert into userLogin values (#{username},#{password})
 </insert>

 <select id="queryByName" resultType="springbootweb04.demo.pojo.UserLogin">
 select * from userLogin where username = #{username}
 </select>

</mapper>

2.8、测试

在test.Java.springbootweb04.demo类中,测试是否能联通数据库,没有报错说明成功。

package springbootweb04.demo;

import org.junit.jupiter.api.Test;
import org.springframework.boot.test.context.SpringBootTest;
import springbootweb04.demo.mapper.UserLoginMapper;
import springbootweb04.demo.pojo.UserLogin;
import org.springframework.beans.factory.annotation.Autowired;


import javax.sql.DataSource;
import java.sql.Connection;
import java.sql.SQLException;
import java.util.List;

@SpringBootTest
class DemoApplicationTests {
 @Autowired
 DataSource dataSource;
 @Test
 void contextLoads() throws SQLException {
 System.out.println(dataSource.getClass());
 Connection connection = dataSource.getConnection();
 System.out.println(connection);

 //template模板,拿来即用
 connection.close();
 }
 @Autowired
 UserLoginMapper userLoginMapper;
 @Test
 public void toTest(){
 List<UserLogin> userLogins = userLoginMapper.queryAll();
 userLogins.forEach(e-> System.out.println(e));
 }
}

2.9、services层

在services下新建接口UserLoginServicesI和类UserLoginServicesImpl

UserLoginServicesI接口:

package springbootweb04.demo.services;

import springbootweb04.demo.pojo.UserLogin;

import java.util.List;

public interface UserLoginServicesI {
 //查询
 public List<UserLogin> queryAll();
 //添加数据
 public int add(UserLogin userLogin);
 //根据用户名查询数据
 public UserLogin queryByName(String username);
}

UserLoginServicesImpl类

package springbootweb04.demo.services;

import springbootweb04.demo.mapper.UserLoginMapper;
import springbootweb04.demo.pojo.UserLogin;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import java.util.List;

@Service
public class UserLoginServicesImpl implements UserLoginServicesI {

 @Autowired
 UserLoginMapper userLoginMapper;
 @Override
 public List<UserLogin> queryAll() {
 return userLoginMapper.queryAll();
 }

 @Override
 public int add(UserLogin userLogin) {
 return userLoginMapper.add(userLogin);
 }

 @Override
 public UserLogin queryByName(String username) {
 return userLoginMapper.queryByName(username);
 }
}

2.A、conteoller层

编写MyController类

package springbootweb04.demo.controller;

import springbootweb04.demo.pojo.UserLogin;
import springbootweb04.demo.services.UserLoginServicesImpl;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.RequestMapping;

@Controller
public class MyController {
 @Autowired
 UserLoginServicesImpl userLoginServicesImpl;

 @RequestMapping("/toLogin")
 public String toLogin(){
 return "login";
 }

 @RequestMapping("/LoginSuccess")
 public String LoginSuccess(Model model, UserLogin userLogin){
 //先查询看该用户名是否存在
 UserLogin userLogin1 = userLoginServicesImpl.queryByName(userLogin.getUsername());
 if(userLogin1 != null){ // 如果查询的用户不为空
 System.out.println(userLogin1.toString());
 return "success";
 }
 else{
 //返回到登录页面
 model.addAttribute("data","该用户不存在,请先注册");
 return "login";
 }
 }
 //登录界面
 @RequestMapping("/toRegister")
 public String toRegister(){
 return "register";
 }
 @RequestMapping("/RegisterSuccess")
 public String toRegisterSuccess(Model model,UserLogin userLogin){
 //将账号密码加入到数据库中
 int add = userLoginServicesImpl.add(userLogin);
 System.out.println("数据插入成功!");
 model.addAttribute("data","注册成功,请登录!");
 return "login";
 }
}

三、编写前端页面

将以下三个页面放在templates下面

login.html:登录页面

<!DOCTYPE html>
<html lang="en" xmlns:th="http://www.thymeleaf.org">
<head>
 <meta charset="UTF-8">
 <title>Title</title>
</head>
<body style="background: aqua">
<div align="center">
 <br><br><h2>登录界面</h2><br><br>
 <span th:text="${data}" style="text-color:red;font-size: 10px"></span>
 <form method="get" action="/LoginSuccess">
 用户名:<input type="text" name="username" placeholder="请输入用户名" required/><br><br>
 密码:<input type="text" name="password" placeholder="请输入密码" required/><br><br>
 <input type="submit" value="登录">
 </form>
 <br>
 <form method="get" action="/toRegister">
 <input type="submit" value="注册">
 </form>
</div>
</body>
</html>

register.html:注册页面

<!DOCTYPE html>
<html lang="en" xmlns:th="http://www.thymeleaf.org">
<head>
 <meta charset="UTF-8">
 <title>Title</title>
</head>
<body style="background: aqua">
<div align="center">
 <br><br>注册界面<br><br>
 <form method="get" action="/RegisterSuccess">
 用户名:<input type="text" name="username" placeholder="请输入用户名" required/><br><br>
 密码:<input type="text" name="password" placeholder="请输入密码" required/><br><br>
 确认密码:<input type="text" name="password2" placeholder="请输入密码" required/><br><br>
 <input type="submit" value="注册">
 </form>
</div>
</body>
</html>

success.html:成功界面

<!DOCTYPE html>
<html lang="en">
<head>
 <meta charset="UTF-8">
 <title>Title</title>
</head>
<body>

</body>
</html>

四、运行测试

:localhost:8080/toLogin
