Govern Service 基于 Redis 的服务治理平台安装过程详解

Govern Service 基于 Redis 的服务治理平台（服务注册/发现 & 配置中心）

Govern Service 是一个轻量级、低成本的服务注册、服务发现、配置服务 SDK，通过使用现有基础设施中的 Redis （相信你已经部署了Redis），不用给运维部署带来额外的成本与负担。
借助于 Redis 的高性能， Govern Service 提供了超高TPS&QPS (10W+/s JMH 基准测试)。Govern Service 结合本地进程缓存策略 + Redis PubSub，实现实时进程缓存刷新，兼具无与伦比的QPS性能、进程缓存与 Redis 的实时一致性。

安装

Gradle

Kotlin DSL

 val governVersion = "0.9.13";
    implementation("me.ahoo.govern:spring-cloud-starter-config:${governVersion}")
    implementation("me.ahoo.govern:spring-cloud-starter-discovery:${governVersion}")

Maven

<?xml version="1.0" encoding="UTF-8"?>

<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">

  <modelVersion>4.0.0</modelVersion>
  <artifactId>demo</artifactId>
  <properties>
    <govern.version>0.9.13</govern.version>
  </properties>

  <dependencies>
    <dependency>
      <groupId>me.ahoo.govern</groupId>
      <artifactId>spring-cloud-starter-config</artifactId>
      <version>${govern.version}</version>
    </dependency>
    <dependency>
      <groupId>me.ahoo.govern</groupId>
      <artifactId>spring-cloud-starter-discovery</artifactId>
      <version>${govern.version}</version>
    </dependency>
  </dependencies>

</project>

bootstrap.yml (Spring-Cloud-Config)

spring:
  application:
    name: ${service.name:govern-rest-api}
  cloud:
    govern:
      namespace: ${govern.namespace:govern-{system}}
      config:
        config-id: ${spring.application.name}.yml
      redis:
        mode: ${govern.mode:standalone}
        url: ${govern.redis.uri:redis://localhost:6379}
logging:
  file:
    name: logs/${spring.application.name}.log

REST-API Server (Optional)

安装 REST-API Server

方式一：下载可执行文件

下载 rest-api-server

解压 rest-api-0.9.13.tar

cd rest-api-0.9.13
# 工作目录: rest-api-0.9.13
bin/rest-api --server.port=8080 --govern.redis.uri=redis://localhost:6379

方式二：Docker run

docker pull ahoowang/govern-service:0.9.13
docker run --name govern-service -d -p 8080:8080 --link redis -e GOVERN_REDIS_URI=redis://redis:6379  ahoowang/govern-service:0.9.13

MacBook Pro (M1)

请使用 ahoowang/govern-service:0.9.13-armv7

docker pull ahoowang/govern-service:0.9.13-armv7
docker run --name govern-service -d -p 8080:8080 --link redis -e GOVERN_REDIS_URI=redis://redis:6379  ahoowang/govern-service:0.9.13-armv7

http://localhost:8080/dashboard

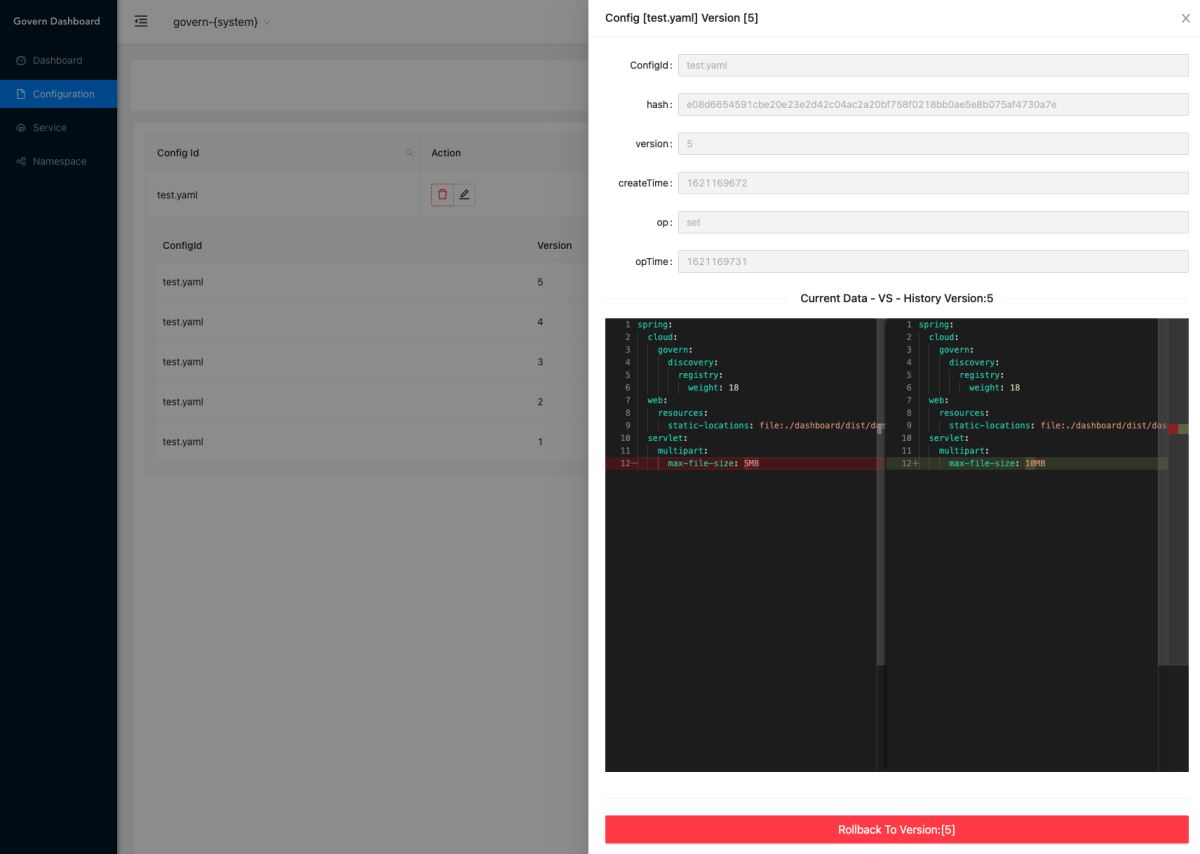

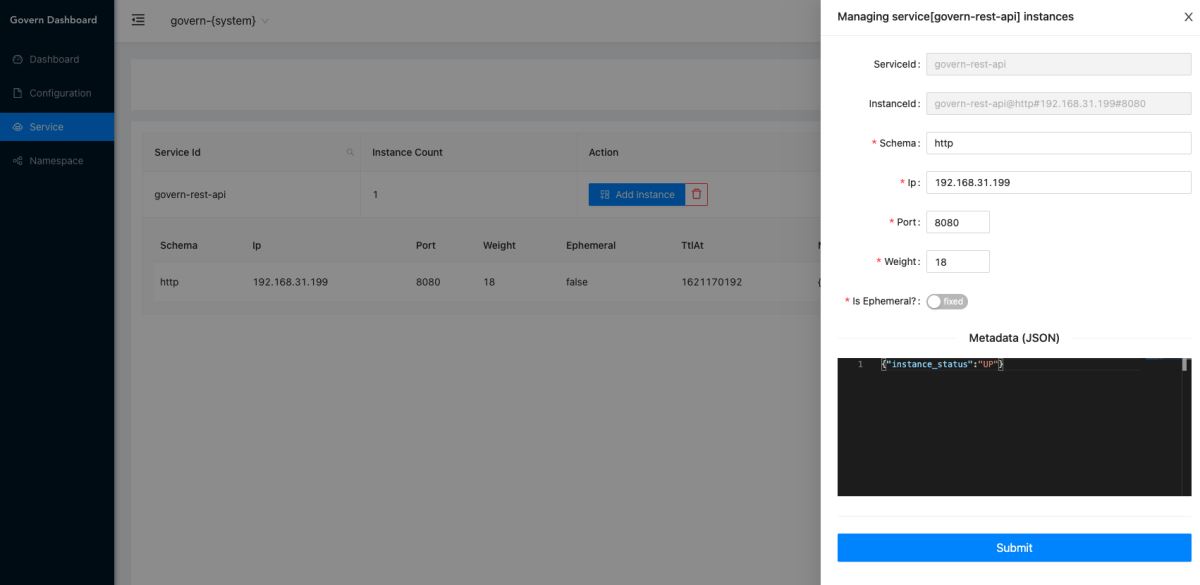

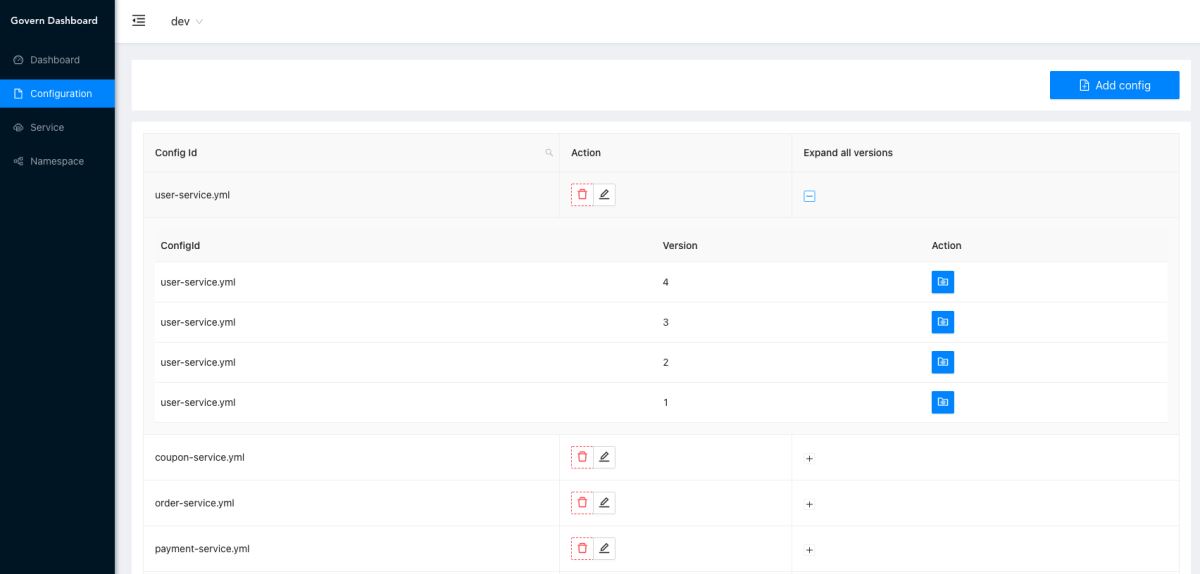

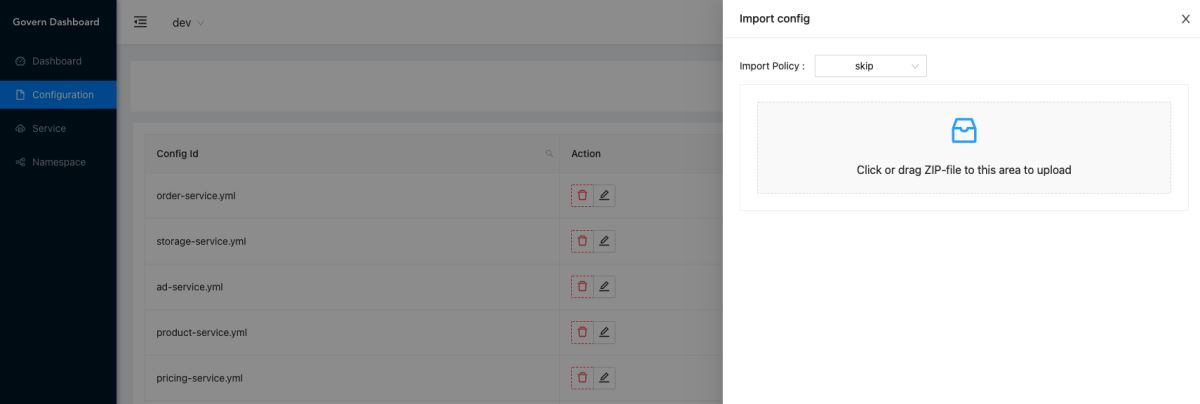

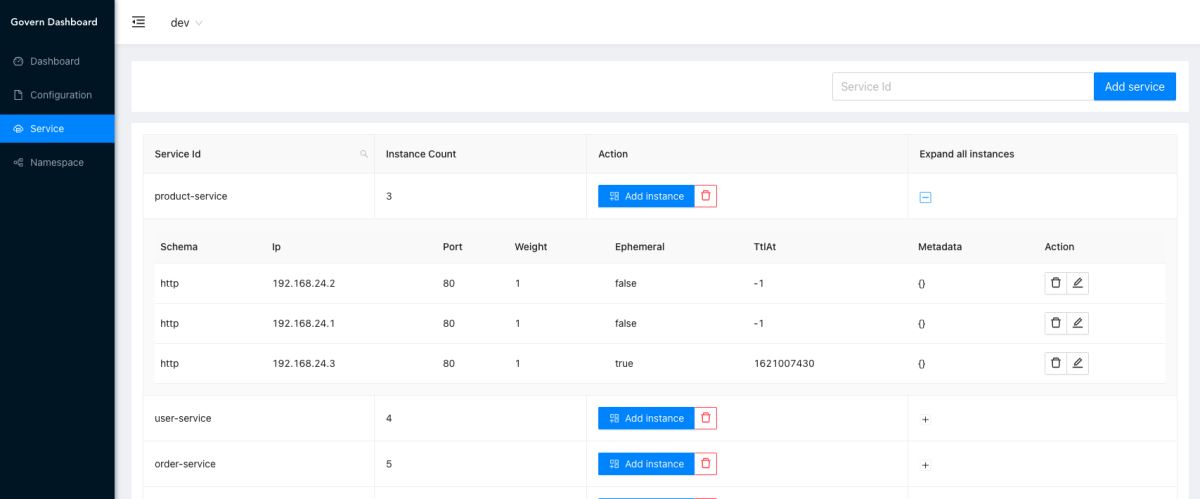

Dashboard

命名空间管理

配置管理

服务管理

REST-API

http://localhost:8080/swagger-ui/index.html

Namespace

/v1/namespaces
GET
/v1/namespaces/{namespace}
PUT
GET
/v1/namespaces/current
GET
/v1/namespaces/current/{namespace}
PUT

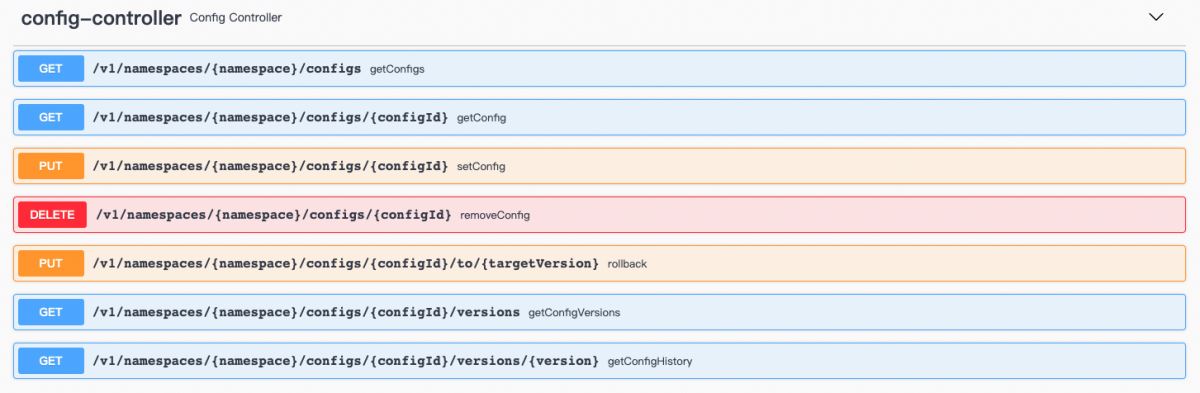

Config

/v1/namespaces/{namespace}/configs
GET
/v1/namespaces/{namespace}/configs/{configId}
GET
PUT
DELETE
/v1/namespaces/{namespace}/configs/{configId}/versions
GET
/v1/namespaces/{namespace}/configs/{configId}/versions/{version}
GET
/v1/namespaces/{namespace}/configs/{configId}/to/{targetVersion}
PUT

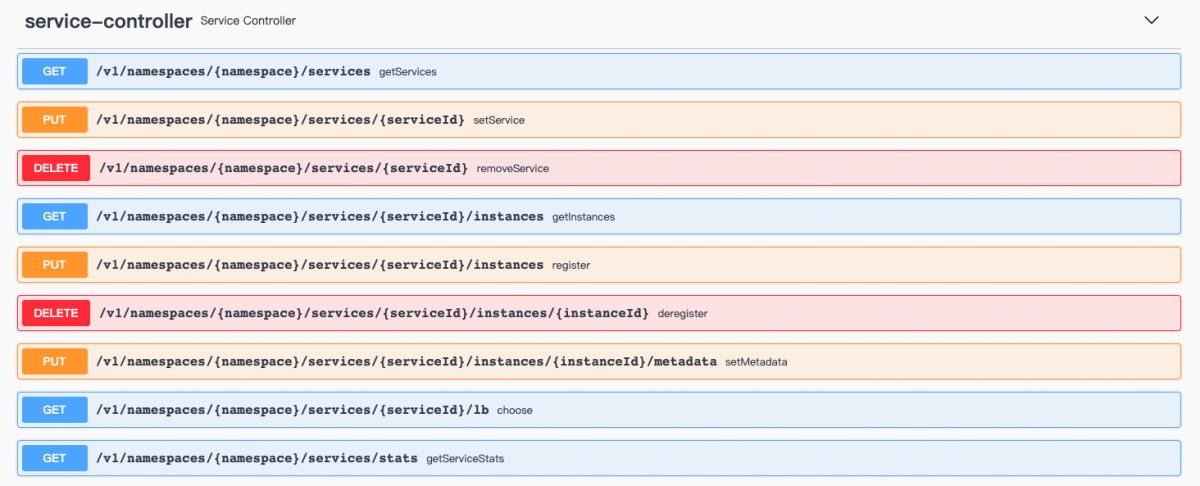

Service

/v1/namespaces/{namespace}/services/
GET
/v1/namespaces/{namespace}/services/{serviceId}/instances
GET
PUT
/v1/namespaces/{namespace}/services/{serviceId}/instances/{instanceId}
DELETE
/v1/namespaces/{namespace}/services/{serviceId}/instances/{instanceId}/metadata
PUT
/v1/namespaces/{namespace}/services/{serviceId}/lb
GET

JMH-Benchmark

基准测试运行环境：笔记本开发机 ( MacBook Pro (M1) )
所有基准测试都在开发笔记本上执行。
Redis 部署环境也在该笔记本开发机上。

ConfigService

gradle config:jmh

# JMH version: 1.29
# VM version: JDK 11.0.11, OpenJDK 64-Bit Server VM, 11.0.11+9-LTS
# VM invoker: /Library/Java/JavaVirtualMachines/zulu-11.jdk/Contents/Home/bin/java
# VM options: -Dfile.encoding=UTF-8 -Djava.io.tmpdir=/Users/ahoo/govern-service/config/build/tmp/jmh -Duser.country=CN -Duser.language=zh -Duser.variant
# Blackhole mode: full + dont-inline hint
# Warmup: 1 iterations, 10 s each
# Measurement: 1 iterations, 10 s each
# Timeout: 10 min per iteration
# Threads: 50 threads, will synchronize iterations
# Benchmark mode: Throughput, ops/time

Benchmark                                          Mode  Cnt          Score   Error  Units
ConsistencyRedisConfigServiceBenchmark.getConfig  thrpt       265321650.148          ops/s
RedisConfigServiceBenchmark.getConfig             thrpt          106991.476          ops/s
RedisConfigServiceBenchmark.setConfig             thrpt          103659.132          ops/s

ServiceDiscovery

gradle discovery:jmh

# JMH version: 1.29
# VM version: JDK 11.0.11, OpenJDK 64-Bit Server VM, 11.0.11+9-LTS
# VM invoker: /Library/Java/JavaVirtualMachines/zulu-11.jdk/Contents/Home/bin/java
# VM options: -Dfile.encoding=UTF-8 -Djava.io.tmpdir=/Users/ahoo/govern-service/discovery/build/tmp/jmh -Duser.country=CN -Duser.language=zh -Duser.variant
# Blackhole mode: full + dont-inline hint
# Warmup: 1 iterations, 10 s each
# Measurement: 1 iterations, 10 s each
# Timeout: 10 min per iteration
# Threads: 50 threads, will synchronize iterations
# Benchmark mode: Throughput, ops/time

Benchmark                                                Mode  Cnt          Score   Error  Units
ConsistencyRedisServiceDiscoveryBenchmark.getInstances  thrpt        76894658.867          ops/s
ConsistencyRedisServiceDiscoveryBenchmark.getServices   thrpt       466036317.472          ops/s
RedisServiceDiscoveryBenchmark.getInstances             thrpt          107778.244          ops/s
RedisServiceDiscoveryBenchmark.getServices              thrpt          106920.412          ops/s
RedisServiceRegistryBenchmark.deregister                thrpt          114094.513          ops/s
RedisServiceRegistryBenchmark.register                  thrpt          109085.694          ops/s
RedisServiceRegistryBenchmark.renew                     thrpt          127003.104          ops/s

作者：Ahoo Wang (阿虎)

Github: https://github.com/Ahoo-Wang/

SmartSql(高性能、高生产力，超轻量级的ORM！): https://github.com/dotnetcore/SmartSql

SmartCode(不只是代码生成器！): https://github.com/dotnetcore/SmartCode

Govern Service 基于 Redis 的服务治理平台（服务注册/发现 & 配置中心）: https://github.com/Ahoo-Wang/govern-service

Govern EventBus 历经多年生产环境验证的事件驱动架构框架: https://github.com/Ahoo-Wang/govern-eventbus
