完整的医院就诊挂号系统基于Spring MVC + Spring + MyBatis实现

资源下载:点此下载

一、语言和环境

1.实现语言: JAVA语言。
2.环境要求: MyEclipse/Eclipse + Tomcat + MySQL。
3.使用技术: Spring MVC + Spring + MyBatis 或 JSP + Servlet + JavaBean + JDBC。

二、实现效果

在这里插入图片描述

实现能够对患者姓名,医师类别、科室的模糊查询,用户点击核销以后状态变为已就诊。

在这里插入图片描述

点击挂号实现基本信息的添加

在这里插入图片描述

三、实现代码

数据库:

SET FOREIGN_KEY_CHECKS=0;

-- ----------------------------
-- Table structure for tb_patient
-- ----------------------------
DROP TABLE IF EXISTS `tb_patient`;
CREATE TABLE `tb_patient` (
  `id` int(11) NOT NULL AUTO_INCREMENT,
  `name` varchar(50) DEFAULT NULL,
  `sex` varchar(10) DEFAULT NULL,
  `age` int(11) DEFAULT NULL,
  `phone` varchar(20) DEFAULT NULL,
  `department` varchar(50) DEFAULT NULL,
  `type` varchar(50) DEFAULT NULL,
  `price` decimal(9,2) DEFAULT NULL,
  `state` int(11) DEFAULT NULL,
  `register_time` datetime DEFAULT NULL,
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=6 DEFAULT CHARSET=utf8;

-- ----------------------------
-- Records of tb_patient
-- ----------------------------
INSERT INTO `tb_patient` VALUES ('1', '张蕾', '女', '12', '13895463212', '儿科', '专家医师', '25.00', '1', '2021-07-18 12:23:00');
INSERT INTO `tb_patient` VALUES ('2', '刘德明', '男', '28', '13345623215', '骨科', '普通医师', '8.00', '0', '2021-07-18 12:23:00');
INSERT INTO `tb_patient` VALUES ('3', '李将军', '男', '38', '13578064788', '内科', '专家医师', '25.00', '1', '2021-07-17 12:23:00');
INSERT INTO `tb_patient` VALUES ('4', '张佩佩', '女', '44', '18214217246', '外科', '副主任医师', '17.00', '0', '2021-07-16 12:23:00');
INSERT INTO `tb_patient` VALUES ('5', '程聪明', '男', '29', '13652645964', '骨科', '副主任医师', '17.00', '0', '2021-08-08 16:21:52');

项目Java代码:

目录结构

在这里插入图片描述

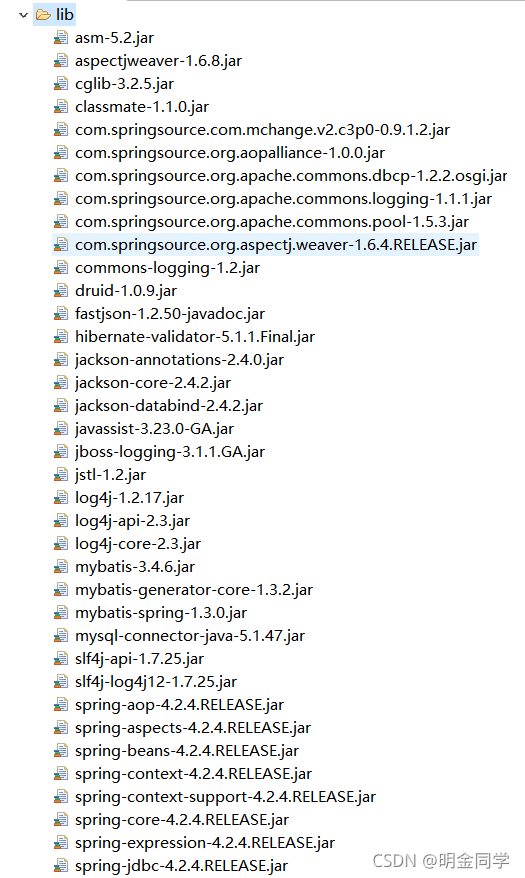

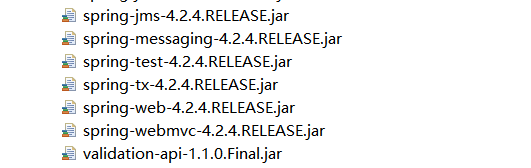

JAR包:

在这里插入图片描述在这里插入图片描述

代码:

=src

> com.mhys.crm.controller

HospitalContrller.java

package com.mhys.crm.controller;

import java.util.List;

import javax.annotation.Resource;

import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.RequestMapping;

import com.mhys.crm.dao.TbPatientMapper;
import com.mhys.crm.entity.TbPatient;

@Controller
public class HospitalContrller {
	@Resource
	private TbPatientMapper tbPatientMapper;

	@RequestMapping("/select")
	public String getList(Model model) {
		List<TbPatient> selctAll = tbPatientMapper.selectAlls();
		System.out.println(selctAll);
		model.addAttribute("selctAll", selctAll);
		return "info";
	}

	@RequestMapping("/list")
	public String getAll(Model model, String name, String type, String dep) {
		List<TbPatient> selctAll = tbPatientMapper.selectAll(name, type, dep);
		System.out.println(name+"==="+type+"==="+dep);
		model.addAttribute("selctAll", selctAll);
		return "info";
	}

	@RequestMapping("/upd")
	public String upDev(Model model,int id) {
		int update = tbPatientMapper.update(id);
		return "redirect:/select.do";
	}

	@RequestMapping("/adds")
	public String adds(Model model) {
		return "addInfo";
	}

	@RequestMapping("/insert")
	public String toaddDev(Model model,TbPatient tb) {
		tbPatientMapper.insert(tb);
	    return "redirect:/select.do";
	}

}

> com.mhys.crm.dao

TbPatientMapper.java

package com.mhys.crm.dao;

import com.mhys.crm.entity.TbPatient;
import java.util.List;

import org.apache.ibatis.annotations.Param;

public interface TbPatientMapper {
    int deleteByPrimaryKey(Integer id);

    int insert(TbPatient record);

    TbPatient selectByPrimaryKey(Integer id);

    List<TbPatient> selectAlls();

    int updateByPrimaryKey(TbPatient record);

    int update(Integer id);

    List<TbPatient> selectAll(@Param("name")String name,@Param("type")String type,@Param("dep")String dap);
}

TbPatientMapper.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" >
<mapper namespace="com.mhys.crm.dao.TbPatientMapper" >
  <resultMap id="BaseResultMap" type="com.mhys.crm.entity.TbPatient" >
    <id column="id" property="id" jdbcType="INTEGER" />
    <result column="name" property="name" jdbcType="VARCHAR" />
    <result column="sex" property="sex" jdbcType="VARCHAR" />
    <result column="age" property="age" jdbcType="INTEGER" />
    <result column="phone" property="phone" jdbcType="VARCHAR" />
    <result column="department" property="department" jdbcType="VARCHAR" />
    <result column="type" property="type" jdbcType="VARCHAR" />
    <result column="price" property="price" jdbcType="DECIMAL" />
    <result column="state" property="state" jdbcType="INTEGER" />
    <result column="register_time" property="registerTime" jdbcType="TIMESTAMP" />
  </resultMap>
  <delete id="deleteByPrimaryKey" parameterType="java.lang.Integer" >
    delete from tb_patient
    where id = #{id,jdbcType=INTEGER}
  </delete>
  <insert id="insert" parameterType="com.mhys.crm.entity.TbPatient" >
    insert into tb_patient (id, name, sex,
      age, phone, department,
      type, price, state,
      register_time)
    values (#{id,jdbcType=INTEGER}, #{name,jdbcType=VARCHAR}, #{sex,jdbcType=VARCHAR},
      #{age,jdbcType=INTEGER}, #{phone,jdbcType=VARCHAR}, #{department,jdbcType=VARCHAR},
      #{type,jdbcType=VARCHAR}, #{price,jdbcType=DECIMAL}, #{state,jdbcType=INTEGER},
      #{registerTime,jdbcType=TIMESTAMP})
  </insert>
  <update id="updateByPrimaryKey" parameterType="com.mhys.crm.entity.TbPatient" >
    update tb_patient
    set name = #{name,jdbcType=VARCHAR},
      sex = #{sex,jdbcType=VARCHAR},
      age = #{age,jdbcType=INTEGER},
      phone = #{phone,jdbcType=VARCHAR},
      department = #{department,jdbcType=VARCHAR},
      type = #{type,jdbcType=VARCHAR},
      price = #{price,jdbcType=DECIMAL},
      state = #{state,jdbcType=INTEGER},
      register_time = #{registerTime,jdbcType=TIMESTAMP}
    where id = #{id,jdbcType=INTEGER}
  </update>

  <select id="selectAlls" resultMap="BaseResultMap" >
    select id, name, sex, age, phone, department, type, price, state, register_time
    from tb_patient
  </select>

  <select id="selectAll" resultMap="BaseResultMap" >
    select id, name, sex, age, phone, department, type, price, state, register_time
    from tb_patient
    <where>
    <if test="name!=null and name!=''">
    	and name = #{name}
    </if>
	<if test="type!=null and type!=''">
    	and type = #{type}
    </if>
    <if test="dep!=null and dep!=''">
    	and department = #{dep}
    </if>
    </where>
  </select>

  <update id="update" parameterType="com.mhys.crm.entity.TbPatient" >
    update tb_patient set state=1 where id = #{id,jdbcType=INTEGER}
  </update>

</mapper>

> com.mhys.crm.entity

TbPatient.java

package com.mhys.crm.entity;

import java.math.BigDecimal;
import java.util.Date;

public class TbPatient {
    private Integer id;

    private String name;

    private String sex;

    private Integer age;

    private String phone;

    private String department;

    private String type;

    private BigDecimal price;

    private Integer state;

    private Date registerTime;

    public Integer getId() {
        return id;
    }

    public void setId(Integer id) {
        this.id = id;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name == null ? null : name.trim();
    }

    public String getSex() {
        return sex;
    }

    public void setSex(String sex) {
        this.sex = sex == null ? null : sex.trim();
    }

    public Integer getAge() {
        return age;
    }

    public void setAge(Integer age) {
        this.age = age;
    }

    public String getPhone() {
        return phone;
    }

    public void setPhone(String phone) {
        this.phone = phone == null ? null : phone.trim();
    }

    public String getDepartment() {
        return department;
    }

    public void setDepartment(String department) {
        this.department = department == null ? null : department.trim();
    }

    public String getType() {
        return type;
    }

    public void setType(String type) {
        this.type = type == null ? null : type.trim();
    }

    public BigDecimal getPrice() {
        return price;
    }

    public void setPrice(BigDecimal price) {
        this.price = price;
    }

    public Integer getState() {
        return state;
    }

    public void setState(Integer state) {
        this.state = state;
    }

    public Date getRegisterTime() {
        return registerTime;
    }

    public void setRegisterTime(Date registerTime) {
        this.registerTime = registerTime;
    }

	@Override
	public String toString() {
		return "TbPatient [id=" + id + ", name=" + name + ", sex=" + sex + ", age=" + age + ", phone=" + phone
				+ ", department=" + department + ", type=" + type + ", price=" + price + ", state=" + state
				+ ", registerTime=" + registerTime + "]";
	}


}

> com.mhys.crm.service.impl

HospitalService.java

package com.mhys.crm.service.impl;

import java.util.List;

import javax.annotation.Resource;

import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.RequestMapping;

import com.mhys.crm.dao.TbPatientMapper;
import com.mhys.crm.entity.TbPatient;

public class HospitalService {
	@Resource
	private TbPatientMapper tbPatientMapper;

	@RequestMapping("/select")
	public String getList(Model model) {
		List<TbPatient> selctAll = tbPatientMapper.selectAlls();
		System.out.println(selctAll);
		model.addAttribute("selctAll", selctAll);
		return "info";
	}

	@RequestMapping("/list")
	public String getAll(Model model, String name, String type, String dep) {
		List<TbPatient> selctAll = tbPatientMapper.selectAll(name, type, dep);
		System.out.println(name+"==="+type+"==="+dep);
		model.addAttribute("selctAll", selctAll);
		return "info";
	}

	@RequestMapping("/upd")
	public String upDev(Model model,int id) {
		int update = tbPatientMapper.update(id);
		return "redirect:/select.do";
	}

	@RequestMapping("/adds")
	public String adds(Model model) {
		return "addInfo";
	}

	@RequestMapping("/insert")
	public String toaddDev(Model model,TbPatient tb) {
		tbPatientMapper.insert(tb);
	    return "redirect:/select.do";
	}
}

=resource

> mybatis

SqlMapConfig.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>

	<typeAliases>
		<package name="com.mhys.crm.entity"/>
	</typeAliases>

</configuration>

> spring

applicationContext-dao.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:context="http://www.springframework.org/schema/context" xmlns:p="http://www.springframework.org/schema/p"
	xmlns:aop="http://www.springframework.org/schema/aop" xmlns:tx="http://www.springframework.org/schema/tx"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-4.0.xsd
	http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.0.xsd
	http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-4.0.xsd http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-4.0.xsd
	http://www.springframework.org/schema/util http://www.springframework.org/schema/util/spring-util-4.0.xsd">

	<context:property-placeholder location="classpath:database.properties"></context:property-placeholder>
	<bean id="dataSource" class="com.alibaba.druid.pool.DruidDataSource">
		<property name="driverClassName" value="${jdbc.driver}"></property>
		<property name="Url" value="${jdbc.url}"></property>
		<property name="username" value="${jdbc.username}"></property>
		<property name="password" value="${jdbc.password}"></property>
	</bean>
	<!-- 配置SqlSessionFactory -->
	<bean class="org.mybatis.spring.SqlSessionFactoryBean">
		<!-- 设置MyBatis核心配置文件 -->
		<property name="configLocation" value="classpath:mybatis/SqlMapConfig.xml" />
		<!-- 设置数据源 -->
		<property name="dataSource" ref="dataSource" />
	</bean>
	<!-- 配置Mapper扫描 -->
	<bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
		<!-- 设置Mapper扫描包 -->
		<property name="basePackage"  value="com.mhys.crm.dao" />
	</bean>
	<!-- 配置事务管理器 -->
		<bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
			<property name="dataSource" ref="dataSource"></property>
		</bean>
		<!-- 开启注解方式管理AOP事务 -->
		<tx:annotation-driven transaction-manager="transactionManager" />

</beans>

applicationContext-service.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:context="http://www.springframework.org/schema/context" xmlns:p="http://www.springframework.org/schema/p"
	xmlns:aop="http://www.springframework.org/schema/aop" xmlns:tx="http://www.springframework.org/schema/tx"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-4.0.xsd
	http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.0.xsd
	http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-4.0.xsd http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-4.0.xsd
	http://www.springframework.org/schema/util http://www.springframework.org/schema/util/spring-util-4.0.xsd">
    <!-- 配置Service扫描 -->
	<context:component-scan base-package="com" />
	<bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
		<property name="dataSource" ref="dataSource"></property>
	</bean>
	<tx:annotation-driven transaction-manager="transactionManager" />
</beans>

spring-mvc.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:p="http://www.springframework.org/schema/p"
	xmlns:context="http://www.springframework.org/schema/context"
	xmlns:mvc="http://www.springframework.org/schema/mvc"
	xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-4.0.xsd
        http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc-4.0.xsd
        http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.0.xsd">
    <!-- 配置Controller扫描 -->
	<context:component-scan base-package="com.mhys.crm.controller" />
	<mvc:annotation-driven />
	<bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
		<property name="prefix" value="/WEB-INF/jsp/" />
		<property name="suffix" value=".jsp" />
	</bean>
</beans>

> database.properties

jdbc.url=jdbc:mysql://localhost:3306/hospital_db?useUnicode=true&characterEncoding=UTF-8&useSSL=false
jdbc.username=root
jdbc.password=123456
jdbc.driver=com.mysql.jdbc.Driver

=JSP页面

> /WEB-INF/jsp/

addInfo.jsp

<%@ page language="java" contentType="text/html; charset=utf-8"
    pageEncoding="utf-8"%>
<!DOCTYPE html>
<html>
	<head>
		<meta charset="utf-8">
		<title>挂号</title>
	</head>
	<body>
		<form action="insert.do" method="post">
			<table border="" cellspacing="" cellpadding="">

				<tr>
					<td>姓名</td>
					<td><input type="text" name="name" value="" /></td>
				</tr>
				<tr>
					<td>性别</td>
					<td><input type="text" name="sex" value=""/></td>
				</tr>
				<tr>
					<td>年龄</td>
					<td><input type="text" name="age" value=""/></td>
				</tr>
				<tr>
					<td>电话</td>
					<td><input type="text" name="phone" value=""/></td>
				</tr>
				<tr>
					<td>医师类别</td>
					<td><input type="text" name="department" value=""/></td>
				</tr>
				<tr>
					<td>价格</td>
					<td><input type="text" name="price" value=""/></td>
				</tr>
				<tr>
					<td>挂号时间</td>
					<td><input type="text" name="registerTime" value=""/></td>
				</tr>

			</table>
			<input type="submit" value="确定" />
		</form>
	</body>
</html>

info.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core"%>
<%@ taglib prefix="fmt" uri="http://java.sun.com/jsp/jstl/fmt"%>
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>医院就诊挂号系统</title>
<style type="text/css">
	form{
		padding: 20px;
	}
	#warp{
		margin:0 auto;
		width: 60%
	}
</style>
</head>
<body>
	<h1 align="center">医院就诊挂号系统</h1>
	<div id="warp">
		<form action="list.do">
		患者姓名:<input type="text" name="name">&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;
		医师类别:
				<select name="type">
					<option value="" >=不限=</option>
					<option value="专家医师" >专家医师</option>
					<option value="普通医师" >普通医师</option>
					<option value="副主任医师" >副主任医师</option>
				</select>&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;
		科室:<input type="text" name="dep">&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;
		<input type="submit" value="查询">&nbsp;&nbsp;&nbsp;
		<input type="button" value="挂号" onclick="add()">
	</form>
	<table style="margin-bottom: 30px;" width="100%" border="1px" cellpadding="11" cellspacing="0">
		<tr>
			<th>编号</th>
			<th>姓名</th>
			<th>性别</th>
			<th>年龄</th>
			<th>电话</th>
			<th>科室</th>
			<th>医师类别</th>
			<th>价格</th>
			<th>挂号时间</th>
			<th>状态</th>
			<th>操作</th>
		</tr>
		<c:forEach var="list" items="${selctAll }">
			<tr>
				<td>${list.id }</td>
				<td>${list.name }</td>
				<td>${list.sex }</td>
				<td>${list.age }</td>
				<td>${list.phone }</td>
				<td>${list.department }</td>
				<td>${list.type }</td>
				<td>${list.price }</td>
				<td><fmt:formatDate value="${list.registerTime }" pattern="yyyy-MM-dd"/></td>
				<td>
					<c:if test="${list.state==0}">
	 			    	未就诊
	 			    </c:if>
					<c:if test="${list.state==1}">
	 			    	已就诊
	 			    </c:if>
				</td>
				<td>
					<c:if test="${list.state==0}">
	 			    	<a href="javascript:if(confirm('确实要核销该挂号信息吗?'))location='upd.do?id=${list.id }'">核销</a>
	 			    </c:if>
					<%-- <c:if test="${list.state==1}">
	 			    	已就诊
	 			    </c:if> --%>
				</td>
			</tr>
		</c:forEach>
	</table>
	</div>
	<script type="text/javascript">
	function add() {
		location.href="adds.do";
	}
	</script>
</body>
</html>

index.jsp

<%@ page language="java" import="java.util.*" pageEncoding="UTF-8"%>
<!DOCTYPE html>
<%
String path = request.getContextPath();
String basePath = request.getScheme()+"://"+request.getServerName()+":"+request.getServerPort()+path;
%>
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
<title>XXX系统</title>
</head>
<body>
<script>
	window.location.href="<%=basePath%>/select.do";
</script>
</body>
</html>

到此这篇关于完整的医院就诊挂号系统基于Spring MVC + Spring + MyBatis的文章就介绍到这了,更多相关医院挂号系统内容请搜索自学编程网以前的文章或继续浏览下面的相关文章希望大家以后多多支持自学编程网!

编程技巧
