Jquery实现的几款漂亮的时间轴

引言

最近项目中使用了很多前端的东西,对于我一个做后台开发的人员,这是一个很好的锻炼的机会。经过这段时间的学习,感觉前端的东西太多了,太强大了,做出来的东西太炫酷了。现在有很多开源的前端框架,做的都非常的漂亮,h5发展了这么多年了,改变了互联网行业啊!下面给大家介绍几款漂亮的时间轴,也许大家以后工作中会用到。

一、纵向折叠时间轴

1、js文件(jQuery.js或者jQuery.min.js)

2、CSS文件

@CHARSET "UTF-8";
/*= Reset =*/
body,div,dl,dt,dd,ul,ol,li,h1,h2,h3,h4,h5,h6,pre,code,form,fieldset,legend,p,blockquote,th,td,figure{margin:0;padding:0;}
article,aside,details,figcaption,figure,footer,header,hgroup,menu,nav,section{display:block;}
table{border-collapse:collapse;border-spacing:0;}
caption,th{font-weight:normal;text-align:left;}
fieldset,img{border:0;}
ul li{list-style:none;}
h1,h2,h3,h4,h5,h6{font-size:100%;}
h5{font-size:18px;margin-bottom:20px;color:#666;}
h5 span{font-size:12px;color:#ccc;font-weight:normal;}
blockquote:before,blockquote:after,q:before,q:after{content:"";}
html{-webkit-text-size-adjust:none;-ms-text-size-adjust:none;}
body{font:normal 14px/24px "Helvetica Neue",Helvetica,STheiti,"Microsoft Yahei","冬青黑体简体中文 w3",宋体,Arial,Tahoma,sans-serif,serif;word-wrap:break-word;background: #F0F0F0;}
input,button,textarea,select,option,optiongroup{font-family:inherit;font-size:inherit;}
code,pre{font-family:"Microsoft YaHei",Consolas,"Courier New",monospace;}
.bw0{border: none !important;}
*:focus{outline:0;}
legend{color:#000;}
input,select{vertical-align:middle;}
button{overflow:visible;}
input.button,button{cursor:pointer;}
button,input,select,textarea{margin:0;}
textarea{overflow:auto;resize:none;}
label[for],input[type="button"],input[type="submit"],input[type="reset"]{cursor:pointer;}
input[type="button"]::-moz-focus-inner,input[type="submit"]::-moz-focus-inner,input[type="reset"]::-moz-focus-inner,button::-moz-focus-inner{border:0;padding:0;}
a { text-decoration:none;color:#1C3D72 }
img{-ms-interpolation-mode:bicubic;}
/* new clearfix */
.clearfix:after {
visibility: hidden;
display: block;
font-size: 0;
content: " ";
clear: both;
height: 0;
}
* html .clearfix             { zoom: 1; } /* IE6 */
*:first-child+html .clearfix { zoom: 1; } /* IE7 */
.hidden{display:none;}
.last{border-bottom:none !important;}
blockquote{background:#f9f9f9;padding:8px 20px;border:1px solid #ccc;}
.page { display:table;margin:0 auto;background:#fff;-moz-box-shadow: 0 5px 20px #CCCCCC;-webkit-box-shadow: 0 5px 20px #CCCCCC;box-shadow: 0 5px 20px #CCCCCC;}
.link li { float:left;display:inline;margin-left:60px; }
.link li a{color:#4F4E4E;font-size:16px;font-weight:500;padding-bottom:6px;display:block;}
.link li.active{border-bottom:2px solid #0066ff;}
.link li.active a{color:#0066FF  }
.link li:hover { border-bottom:2px solid #0066ff;color:#0066FF  }
.link li a:hover{color:#0066FF  }
.adlist{padding:20px;}
.adlist li{float:left;diaplay:inline;margin-left:30px;margin-bottom:20px;width:110px;}

.main { width:940px;margin:40px auto 10px auto;font-size:14px;display:table;padding-bottom:10px; border-bottom:1px solid #EEEEEE}
.info { width:300px;float:left;margin-right:20px; }
.info h3 { width:300px;height:26px;background:url('/../img/ictb.png') no-repeat;font-size:0;margin-bottom:8px; }
.info ul{margin-left:-10px;}
.info ul li{list-style:none;float:left;width:140px;padding-left:0;background:none;margin-left:10px;}
.info ul{margin-left:-10px;}
.b2 h3 { background-position:0 -26px; }
.b3 { margin:0;position:relative; }
.b3 span{position:absolute;right:10px;top:0;background:url('../img/morelink.gif') no-repeat left center;padding-left:12px;}
.b3 span a{color:#8C8C8C;font-weight:600}
.b3 h3 { background-position:0 -52px; }
.info li { padding:3px 0 3px 12px;background:url('../img/dian.png') 2px center no-repeat; }
.info li a { color:#8c8c8c; }
.info p { color:#8c8c8c; }
.info p img { display:table;margin:10px 0; }
.morelink{padding-top:20px;}
.morelink li{float:left;width:180px;}

.box { width:940px;margin:18px auto 0 auto; }
.left { width:140px;border-bottom:2px solid #DDD;background:#FFF;float:left; }
.left li:hover { border-left:3px solid #0066ff; }
.left li a { height:40px;line-height:40px;display:block;color:#333 }
.left li a:hover,.left li.active a{color:#0066FF}
.left li.active{border-left:3px solid #0066ff;}
.left li {
    border-left:3px solid #fff;
    border-bottom: 1px solid #EEEEEE;
    font-size: 14px;
    height: 40px;
    margin-bottom: 1px;
    overflow: hidden;
    padding-left: 25px;
}

.event_year { width:100px;border-bottom:2px solid #DDD;text-align:center;float:left;margin-top:70px;margin-left:-60px; }
.event_year li { height:40px;line-height:40px;background:#FFF;margin-bottom:1px;font-size:18px;color:#828282;cursor:pointer; }
.event_year li.current { width:100px;background:#0066ff url('../img/jian.png') 100px 0 no-repeat;color:#FFF;text-align:left;padding-left:9px; }
.event_list { width:850px;float:right;background:url('../img/dian3.png') 139px 0 repeat-y;margin-left:50px;margin-top:70px; }
.event_list h3 { margin:0 0 10px 132px;font-size:24px;font-family:Georgia;color:#0066ff;padding-left:25px;background:url('../img/jian.png') 0 -45px no-repeat;height:38px;line-height:30px;font-style:italic; }
.event_list li { background:url('../img/jian.png') 136px -80px no-repeat; }
.event_list li span { width:127px;text-align:right;display:block;float:left;margin-top:10px; }
.event_list li p { width:680px;margin-left:24px;display:inline-block;padding-left:10px;background:url('../img/jian.png') -21px 0 no-repeat;line-height:25px;_float:left; }
.event_list li p span { width:650px;text-align:left;border-bottom:2px solid #DDD;padding:10px 15px;background:#FFF;margin:0; }

.titlelist{line-height:24px;color: #8C8C8C;padding-bottom:20px;}
.titlelist dt { font-weight: bold;color:#666;white-space: nowrap;margin:10px;}
.titlelist dd {padding-left: 13px;}
h1 {
    background: url("http://ww.chinaz.com/about/images/h1-bg.gif") no-repeat scroll left bottom rgba(0, 0, 0, 0);
    font-family: Tahoma,Arial,sans-serif;
    font-size: 14px;
    margin-bottom: 15px;
    padding-bottom: 12px;
}
.hr {
    border-top: 1px solid #CCD5DE;
    font-size: 0;
    height: 0;
    line-height: 0;
    margin: 15px 0;
}
.red {
    color: #0065CB;
    font-size:15px;
}

3、HTML代码

<!DOCTYPE html>
<html>
<head>
    <meta http-equiv="Content-Type" content="text/html; charset=utf-8">
    <link rel="stylesheet" href="css/about.css">
    <style>
        .page {
            width: 100%;
            background: #F0F0F0 url('img/dian2.png') repeat-x;
        }
    </style>
    <title>静态可以折叠时光轴</title>
</head>
<body>
    <div class="page">
        <div class="box">
            <ul class="event_year">
                <li class="current"><label for="20170111">20170111</label></li>
                <li><label for="20170112">20170112</label></li>
                <li><label for="20170113">20170113</label></li>
            </ul>
            <ul class="event_list">
                <div>
                    <h3 id="20170111">20170111</h3>
                    <li>
                        <span>20170111 22:32:45</span>
                        <p><span>出入口系统<a href="f?p='||V('APP_ID')||':122:'||V('SESSION')||':::::"></a></span></p>
                    </li>
                    <li>
                        <span>20170111 21:00:31</span>
                        <p><span>停车场系统<a href="f?p='||V('APP_ID')||':122:'||V('SESSION')||':::::"></a></span></p>
                    </li>
                    <li>
                        <span>20170111 17:30:45</span>
                        <p><span>楼宇门禁系统<a href="f?p='||V('APP_ID')||':122:'||V('SESSION')||':::::"></a></span></p>
                    </li>

                </div>
                <div>
                    <h3 id="20170112">20170112</h3>
                    <li>
                        <span>20170112 14:03:41</span>
                        <p><span>视频监控系统<a href="f?p='||V('APP_ID')||':122:'||V('SESSION')||':::::"></a></span></p>
                    </li>
                    <li>
                        <span>20170112 11:24:47</span>
                        <p><span>电子巡更系统<a href="f?p='||V('APP_ID')||':122:'||V('SESSION')||':::::"></a></span></p>
                    </li>
                </div>
                <div>
                    <h3 id="20170113">20170113</h3>
                    <li><span>20170112 14:03:41</span><p><span>视频监控系统<a href="f?p='||V('APP_ID')||':122:'||V('SESSION')||':::::"></a></span></p></li>
                    <li><span>20170112 14:03:41</span><p><span>视频监控系统<a href="f?p='||V('APP_ID')||':122:'||V('SESSION')||':::::"></a></span></p></li>
                </div>
            </ul>
            <div class="clearfix"></div>
        </div>
    </div>
    <script src="js/jquery.min_v1.0.js" type="text/javascript"></script>
    <script type="text/javascript">
        $(function () {
            $('label').click(function () {
                $('.event_year>li').removeClass('current');
                $(this).parent('li').addClass('current');
                var year = $(this).attr('for');
                $('#' + year).parent().prevAll('div').slideUp(800);
                $('#' + year).parent().slideDown(800).nextAll('div').slideDown(800);
            });
        });
    </script>
</body>
</html>

4、运行效果:

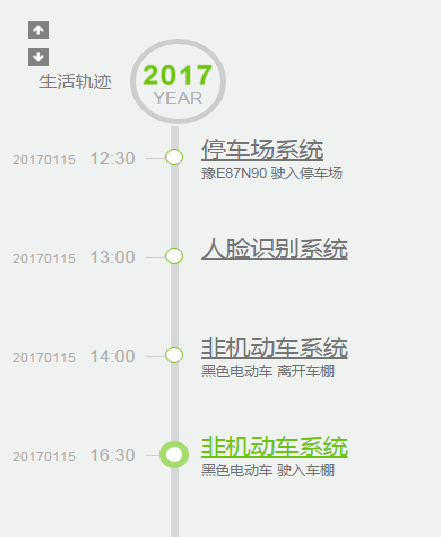

二、纵向鼠标滑动时间轴

1、js文件(jquery.js和jquery.mousewheel.js,jquery.easing.js,自定义history.js)

(1)jquery.mousewheel.js文件

/*! Copyright (c) 2011 Brandon Aaron (http://brandonaaron.net)
 * Licensed under the MIT License (LICENSE.txt).
 *
 * Thanks to: http://adomas.org/javascript-mouse-wheel/ for some pointers.
 * Thanks to: Mathias Bank(http://www.mathias-bank.de) for a scope bug fix.
 * Thanks to: Seamus Leahy for adding deltaX and deltaY
 *
 * Version: 3.0.6
 *
 * Requires: 1.2.2+
 */
(function(a){function d(b){var c=b||window.event,d=[].slice.call(arguments,1),e=0,f=!0,g=0,h=0;return b=a.event.fix(c),b.type="mousewheel",c.wheelDelta&&(e=c.wheelDelta/120),c.detail&&(e=-c.detail/3),h=e,c.axis!==undefined&&c.axis===c.HORIZONTAL_AXIS&&(h=0,g=-1*e),c.wheelDeltaY!==undefined&&(h=c.wheelDeltaY/120),c.wheelDeltaX!==undefined&&(g=-1*c.wheelDeltaX/120),d.unshift(b,e,g,h),(a.event.dispatch||a.event.handle).apply(this,d)}var b=["DOMMouseScroll","mousewheel"];if(a.event.fixHooks)for(var c=b.length;c;)a.event.fixHooks[b[--c]]=a.event.mouseHooks;a.event.special.mousewheel={setup:function(){if(this.addEventListener)for(var a=b.length;a;)this.addEventListener(b[--a],d,!1);else this.onmousewheel=d},teardown:function(){if(this.removeEventListener)for(var a=b.length;a;)this.removeEventListener(b[--a],d,!1);else this.onmousewheel=null}},a.fn.extend({mousewheel:function(a){return a?this.bind("mousewheel",a):this.trigger("mousewheel")},unmousewheel:function(a){return this.unbind("mousewheel",a)}})})(jQuery)

(2)jquery.easing.js文件

/*
 * jQuery Easing v1.3 - http://gsgd.co.uk/sandbox/jquery/easing/
 *
 * Uses the built in easing capabilities added In jQuery 1.1
 * to offer multiple easing options
 *
 * TERMS OF USE - EASING EQUATIONS
 *
 * Open source under the BSD License.
 *
 * Copyright © 2001 Robert Penner
 * All rights reserved.
 *
 * TERMS OF USE - jQuery Easing
 *
 * Open source under the BSD License.
 *
 * Copyright © 2008 George McGinley Smith
 * All rights reserved.
 *
 * Redistribution and use in source and binary forms, with or without modification,
 * are permitted provided that the following conditions are met:
 *
 * Redistributions of source code must retain the above copyright notice, this list of
 * conditions and the following disclaimer.
 * Redistributions in binary form must reproduce the above copyright notice, this list
 * of conditions and the following disclaimer in the documentation and/or other materials
 * provided with the distribution.
 *
 * Neither the name of the author nor the names of contributors may be used to endorse
 * or promote products derived from this software without specific prior written permission.
 *
 * THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY
 * EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
 * MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE
 *  COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL,
 *  EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE
 *  GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED
 * AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING
 *  NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED
 * OF THE POSSIBILITY OF SUCH DAMAGE.
 *
*/
jQuery.easing.jswing=jQuery.easing.swing;jQuery.extend(jQuery.easing,{def:"easeOutQuad",swing:function(e,f,a,h,g){return jQuery.easing[jQuery.easing.def](e,f,a,h,g)},easeInQuad:function(e,f,a,h,g){return h*(f/=g)*f+a},easeOutQuad:function(e,f,a,h,g){return -h*(f/=g)*(f-2)+a},easeInOutQuad:function(e,f,a,h,g){if((f/=g/2)<1){return h/2*f*f+a}return -h/2*((--f)*(f-2)-1)+a},easeInCubic:function(e,f,a,h,g){return h*(f/=g)*f*f+a},easeOutCubic:function(e,f,a,h,g){return h*((f=f/g-1)*f*f+1)+a},easeInOutCubic:function(e,f,a,h,g){if((f/=g/2)<1){return h/2*f*f*f+a}return h/2*((f-=2)*f*f+2)+a},easeInQuart:function(e,f,a,h,g){return h*(f/=g)*f*f*f+a},easeOutQuart:function(e,f,a,h,g){return -h*((f=f/g-1)*f*f*f-1)+a},easeInOutQuart:function(e,f,a,h,g){if((f/=g/2)<1){return h/2*f*f*f*f+a}return -h/2*((f-=2)*f*f*f-2)+a},easeInQuint:function(e,f,a,h,g){return h*(f/=g)*f*f*f*f+a},easeOutQuint:function(e,f,a,h,g){return h*((f=f/g-1)*f*f*f*f+1)+a},easeInOutQuint:function(e,f,a,h,g){if((f/=g/2)<1){return h/2*f*f*f*f*f+a}return h/2*((f-=2)*f*f*f*f+2)+a},easeInSine:function(e,f,a,h,g){return -h*Math.cos(f/g*(Math.PI/2))+h+a},easeOutSine:function(e,f,a,h,g){return h*Math.sin(f/g*(Math.PI/2))+a},easeInOutSine:function(e,f,a,h,g){return -h/2*(Math.cos(Math.PI*f/g)-1)+a},easeInExpo:function(e,f,a,h,g){return(f==0)?a:h*Math.pow(2,10*(f/g-1))+a},easeOutExpo:function(e,f,a,h,g){return(f==g)?a+h:h*(-Math.pow(2,-10*f/g)+1)+a},easeInOutExpo:function(e,f,a,h,g){if(f==0){return a}if(f==g){return a+h}if((f/=g/2)<1){return h/2*Math.pow(2,10*(f-1))+a}return h/2*(-Math.pow(2,-10*--f)+2)+a},easeInCirc:function(e,f,a,h,g){return -h*(Math.sqrt(1-(f/=g)*f)-1)+a},easeOutCirc:function(e,f,a,h,g){return h*Math.sqrt(1-(f=f/g-1)*f)+a},easeInOutCirc:function(e,f,a,h,g){if((f/=g/2)<1){return -h/2*(Math.sqrt(1-f*f)-1)+a}return h/2*(Math.sqrt(1-(f-=2)*f)+1)+a},easeInElastic:function(f,h,e,l,k){var i=1.70158;var j=0;var g=l;if(h==0){return e}if((h/=k)==1){return e+l}if(!j){j=k*0.3}if(g<Math.abs(l)){g=l;var i=j/4}else{var i=j/(2*Math.PI)*Math.asin(l/g)}return -(g*Math.pow(2,10*(h-=1))*Math.sin((h*k-i)*(2*Math.PI)/j))+e},easeOutElastic:function(f,h,e,l,k){var i=1.70158;var j=0;var g=l;if(h==0){return e}if((h/=k)==1){return e+l}if(!j){j=k*0.3}if(g<Math.abs(l)){g=l;var i=j/4}else{var i=j/(2*Math.PI)*Math.asin(l/g)}return g*Math.pow(2,-10*h)*Math.sin((h*k-i)*(2*Math.PI)/j)+l+e},easeInOutElastic:function(f,h,e,l,k){var i=1.70158;var j=0;var g=l;if(h==0){return e}if((h/=k/2)==2){return e+l}if(!j){j=k*(0.3*1.5)}if(g<Math.abs(l)){g=l;var i=j/4}else{var i=j/(2*Math.PI)*Math.asin(l/g)}if(h<1){return -0.5*(g*Math.pow(2,10*(h-=1))*Math.sin((h*k-i)*(2*Math.PI)/j))+e}return g*Math.pow(2,-10*(h-=1))*Math.sin((h*k-i)*(2*Math.PI)/j)*0.5+l+e},easeInBack:function(e,f,a,i,h,g){if(g==undefined){g=1.70158}return i*(f/=h)*f*((g+1)*f-g)+a},easeOutBack:function(e,f,a,i,h,g){if(g==undefined){g=1.70158}return i*((f=f/h-1)*f*((g+1)*f+g)+1)+a},easeInOutBack:function(e,f,a,i,h,g){if(g==undefined){g=1.70158}if((f/=h/2)<1){return i/2*(f*f*(((g*=(1.525))+1)*f-g))+a}return i/2*((f-=2)*f*(((g*=(1.525))+1)*f+g)+2)+a},easeInBounce:function(e,f,a,h,g){return h-jQuery.easing.easeOutBounce(e,g-f,0,h,g)+a},easeOutBounce:function(e,f,a,h,g){if((f/=g)<(1/2.75)){return h*(7.5625*f*f)+a}else{if(f<(2/2.75)){return h*(7.5625*(f-=(1.5/2.75))*f+0.75)+a}else{if(f<(2.5/2.75)){return h*(7.5625*(f-=(2.25/2.75))*f+0.9375)+a}else{return h*(7.5625*(f-=(2.625/2.75))*f+0.984375)+a}}}},easeInOutBounce:function(e,f,a,h,g){if(f<g/2){return jQuery.easing.easeInBounce(e,f*2,0,h,g)*0.5+a}return jQuery.easing.easeOutBounce(e,f*2-g,0,h,g)*0.5+h*0.5+a}});

(3)history.js文件

(function(e){
    function b(a){
        a=a.replace(/left|top/g,"0px");
        a=a.replace(/right|bottom/g,"100%");
        a=a.replace(/([0-9\.]+)(\s|\)|$)/g,"$1px$2");
        a=a.match(/(-?[0-9\.]+)(px|\%|em|pt)\s(-?[0-9\.]+)(px|\%|em|pt)/);
        return[parseFloat(a[1],10),a[2],parseFloat(a[3],10),a[4]]}
        if(!document.defaultView||!document.defaultView.getComputedStyle){
            var f=e.curCSS;
            e.curCSS=function(a,c,b){
                "background-position"===c&&(c="backgroundPosition");
                if("backgroundPosition"!==c||!a.currentStyle||a.currentStyle[c])
                return f.apply(this, arguments);
                var g=a.style;
                return!b&&g&&g[c]?g[c]:f(a,"backgroundPositionX",b)+" "+f(a,"backgroundPositionY",b)
            }
        }
        var d=e.fn.animate;
        e.fn.animate=function(a){
            "background-position"in a&&(a.backgroundPosition=a["background-position"],delete a["background-position"]);
            "backgroundPosition"in a&&(a.backgroundPosition="("+a.backgroundPosition);
            return d.apply(this,arguments)
        };
        e.fx.step.backgroundPosition=function(a){
            if(!a.bgPosReady){
                var c=e.curCSS(a.elem,"backgroundPosition");
                c||(c="0px 0px");c=b(c);a.start= [c[0],c[2]];
                c=b(a.end);
                a.end=[c[0],c[2]];
                a.unit=[c[1],c[3]];
                a.bgPosReady=!0}c=[];
                c[0]=(a.end[0]-a.start[0])*a.pos+a.start[0]+a.unit[0];
                c[1]=(a.end[1]-a.start[1])*a.pos+a.start[1]+a.unit[1];
                a.elem.style.backgroundPosition=c[0]+" "+c[1]
            }
    }
)(jQuery);

(function(e){e.extend(e.fx.step,{
    backgroundPosition:function(b){
        function f(a){
            a=a.replace(/left|top/g,"0px");
            a=a.replace(/right|bottom/g,"100%");
            a=a.replace(/([0-9\.]+)(\s|\)|$)/g,"$1px$2");
              a=a.match(/(-?[0-9\.]+)(px|\%|em|pt)\s(-?[0-9\.]+)(px|\%|em|pt)/);
              return[parseFloat(a[1],10),a[2],parseFloat(a[3],10),a[4]]
        }
        if(0===b.state&&"string"==typeof b.end){
            var d=e.curCSS(b.elem,"backgroundPosition"),d=f(d);
            b.start=[d[0],d[2]];d=f(b.end);b.end=[d[0],d[2]];
            b.unit=[d[1],d[3]]}d=[];
            d[0]=(b.end[0]-b.start[0])* b.pos+b.start[0]+b.unit[0];
            d[1]=(b.end[1]-b.start[1])*b.pos+b.start[1]+b.unit[1];
            b.elem.style.backgroundPosition=d[0]+" "+d[1]
        }
    }
)})(jQuery);

$(function(){
    function e(){
        c=$(".list li").eq(d).find(".year").html();
        $(".timeblock").attr("thisyear",c);
        var a=c.split(""),b=["numf","nums","numt","numfo"];
        for(i=0;4>i;i++)
        $("."+b[i]+"").stop(!0,!1).animate({backgroundPosition:"0px "+-24*a[i]},{duration:200})}
        $(".list .liwrap").mouseover(function(){
            $(".list li").removeClass("thiscur");
            $(this).parent().addClass("thiscur")
        });
        var b=0,f=$(".list li").length,d=0,a=!0,c;
        (function(){
            var a=$(window).height();
            890<=a&&(row=6);
            800<=a&&890>a&&(row=5);
            726<=a&& 800>a&&(row=4);
            726>a&&(row=3)}
        )();
        var h=f-row;
        $(".list").height(110*row);
        $("#content").height(110*row+25);
        $.fn.liOut=function(){
            $(this).find(".lileft").animate({left:"-130px"},200,"easeOutQuart");
            $(this).find(".liright").animate({right:"-400px"},200,"easeOutQuart")
        };
        $.fn.liIn=function(){
            $(this).find(".lileft").animate({ left: "5px" }, 200, "easeOutQuart");
            $(this).find(".liright").animate({ right: "-130px" }, 200, "easeOutQuart")
        };
        $(".arrowdown").click(function(){
            a&&parseInt($(".list li:first").css("marginTop"))> -110*h&&(d++,b--,a=!1,$(".list li").eq(d-1).liOut(),$(".list li").eq(d+row-1).liIn(),$(".list li:first").animate({marginTop:110*b},600,"easeInOutQuad",function(){
                a=!0;$(".arrowdown").css("opacity",1);
                $(".arrowdown").removeClass("arrow_active")
            }),e()
        )});
        $(".arrowup").click(function(){
            a&&0!=parseInt($(".list li:first").css("marginTop"))&&(b++,d--,a=!1,$(".list li").eq(d).liIn(),$(".list li").eq(d+row).liOut(),$(".list li:first").animate({marginTop:110*b},600,"easeInOutQuad",function(){
                a=!0;$(".arrowup").css("opacity", 1);
                $(".arrowup").removeClass("arrow_active")
            }),e()
        )});
        $(".list").mousewheel(function(b,c){
            Math.abs(c);
            if(a){
                var d=parseInt($(".list li:first").css("marginTop"));
                0<c?0!=d&&($(".arrowup").addClass("arrow_active"),$(".arrowup").trigger("click")):d>-110*h&&($(".arrowdown").addClass("arrow_active"),$(".arrowdown").trigger("click"))
            }
        });
        $(".timeblock").attr("thisyear",c);
        $(".list li:gt("+(row-1)+")").find(".lileft").css({left:"-130px"});
        $(".list li:gt("+(row-1)+")").find(".liright").css({right:"-400px"});

});

2、CSS文件

@charset "utf-8";
*{margin:0;padding:0;list-style-type:none;}
a,img{border:0;}
body{_background-image:url(about:blank);/*用浏览器空白页面作为背景*/_background-attachment:fixed; /* prevent screen flash in IE6 确保滚动条滚动时,元素不闪动*/ }
body{color:#535353;font-size:12px;font-family: "arial","微软雅黑";background:#f0f1f1;}
.clear{clear:both;display:block;height:0;overflow:hidden;}

/* history */
#history{width:350px;height:450px;position:fixed;margin:50px auto 0 auto;}
.title{height:95px;line-height:95px;text-indent:40px;}
.title h2{color:#7c7c7c;font-size:18px;font-weight:500;}
#circle{
    width:83px;height:83px;position:absolute;top:0;left:130px;border:6px solid rgba(0,0,0,0.15);border-radius:95px;text-indent:0;text-align:center;
    -webkit-transition:all 0.3s linear;
    -moz-transition:all 0.3s linear;
    -o-transition:all 0.3s linear;
    transition:all 0.3s linear;
}
#circle .cmsk{height:83px;position:absolute;width:83px;top:0;left:0;}
#circle:hover{
    transform:rotate(360deg);
    -ms-transform:rotate(360deg);
    -moz-transform:rotate(360deg);
    -webkit-transform:rotate(360deg);
    -o-transform:rotate(360deg);
    border-color:rgba(0,0,0,0);
}
.clock{display:block;}
#circle:hover {border-color:rgba(255,255,255,0.6);background-color:#6bc30d;}
#circle:hover .clock{display:block;}
#circle:hover .circlecontent{display:none;}
#circle span{font-size:18px;color:#b0b0b0;}
#circle .clock{
    background:url(../img/clock.png) no-repeat 0 0;width:83px;height:83px;position:absolute;top:0;left:0;display:none;
    -webkit-transition:all 0.5s linear;
    -moz-transition:all 0.5s linear;
    -o-transition:all 0.5s linear;
    transition:all 0.5s linear;
    border-radius:0;
}
#circle:hover .clock{border-radius:83px;}
.timeyear{color:#b0b0b0;font-size:18px;line-height:20px;}
.timeblock{height:28px;margin-top:22px;margin-left:5px;}
.timeblock span{display:block;height:24px;width:18px;background:url(../img/date.png) no-repeat 0 0;float:left;}
.timeblock .numf{background-position:0px -48px;}
.timeblock .nums{background-position:0px 0px;}
.timeblock .numt{background-position:0px -24px;}
.timeblock .numfo{background-position:0px -72px;}
#content{height:355px;width:500px;overflow:hidden;background:url(../img/vertical.png) no-repeat 170px 2px;padding-top:10px;}
.list{overflow:hidden;position:relative;}
.list li{height:110px;vertical-align:bottom;overflow:hidden;position:relative;}
.liwrap{height:55px;margin-top:28px;}
.lileft{position:absolute;top:0;left:0px;height:55px;width:130px;line-height:55px;text-align:right;}
.liright{position:absolute;top:0;right:-150px;height:55px;width:430px;}
.histt{height:35px;line-height:35px;}
.hisct{font-size:14px;color:#6e6e6e;}
.md{font-size:18px;color:#AEAEAE;}
.year{font-size:12px;color:#AEAEAE;margin-right:10px;}
.point{width:55px;height:55px;position:absolute;top:0;left:145px;background:url(../img/point.png) no-repeat 0px 18px;overflow:hidden;}
.point b{
    height:16px;width:16px;background:#fff;display:block;margin:17px 0 0 19px;border-radius:18px;border:2px solid #6bc30d;
    -webkit-transition:all 0.1s linear;
    -moz-transition:all 0.1s linear;
    -o-transition:all 0.1s linear;
    transition:all 0.1s linear;
    position:absolute;
    top:0;left:0;
}
.thiscur .point b{border:7px solid rgba(107,195,13,0.6);margin:12px 0px 0px 14px;border-radius:52px;}
.thiscur .histt a{color:#6bc30d;}
.histt a{
    font-size:24px;color:#747474;
    -webkit-transition:all 0.3s linear;
    -moz-transition:all 0.3s linear;
    -o-transition:all 0.3s linear;
    transition:all 0.3s linear;
}
#arrow{position:fixed;top:4%;left:30px;}
*html #arrow{position:absolute;top:expression(eval(document.documentElement.scrollTop));margin-top:350px;}

#arrow ul li{
    display:block;height:20px;width:20px;background:url(../img/icons.png) no-repeat 0 0;cursor:pointer;
    -webkit-transition:all 0.2s ease-out;
    -moz-transition:all 0.2s ease-out;
    -o-transition:all 0.2s ease-out;
    transition:all 0.2s ease-out;
}
#arrow ul li:active{background-color:#000;}
#arrow ul .arrow_active{
    background-color:#000;
    -webkit-transition:all 0.1s ease-in;
    -moz-transition:all 0.1s ease-in;
    -o-transition:all 0.1s ease-in;
    transition:all 0.1s ease-in;
}
#arrow ul .arrowup{background-position:0px -26px;margin-bottom:10px;}
#arrow ul .arrowdown{background-position:0px 0px;}

3、HTML代码

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml">
<head>
<meta http-equiv="Content-Type" content="text/html; charset=utf-8" />
<title>时间轴</title>
<link rel="stylesheet" type="text/css" href="css/history.css">
<script type="text/javascript" src="js/jquery.js"></script>
<script type="text/javascript" src="js/jquery.mousewheel.js"></script>
<script type="text/javascript" src="js/jquery.easing.js"></script>
<script type="text/javascript" src="js/history.js"></script>
</head>
<body>
<div id="arrow">
    <ul>
        <li class="arrowup"></li>
        <li class="arrowdown"></li>
    </ul>
</div>
<div id="history">
    <div class="title">
        <h2>生活轨迹</h2>
        <div id="circle">
            <div class="cmsk"></div>
            <div class="circlecontent">
                <div thisyear="20170115" class="timeblock">
                    <span class="numf"></span>
                    <span class="nums"></span>
                    <span class="numt"></span>
                    <span class="numfo"></span>
                    <div class="clear"></div>
                </div>
                <div class="timeyear">YEAR</div>
            </div>
            <a href="#" class="clock"></a>
        </div>
    </div>

    <div id="content">
        <ul class="list">
            <li style="margin-top:-110px;">
                <div class="liwrap">
                    <div class="lileft">
                        <div class="date">
                            <span class="year">20170115</span>
                            <span class="md">8:00</span>
                        </div>
                    </div>

                    <div class="point"><b></b></div>

                    <div class="liright">
                        <div class="histt"><a href="#">出入口系统</a></div>
                    </div>
                </div>
            </li>
            <li>
                <div class="liwrap">
                    <div class="lileft">
                        <div class="date">
                            <span class="year">20170115</span>
                            <span class="md">8:30</span>
                        </div>
                    </div>

                    <div class="point"><b></b></div>

                    <div class="liright">
                        <div class="histt"><a href="#">门禁系统</a></div>
                    </div>
                </div>
            </li>
            <li>
                <div class="liwrap">
                    <div class="lileft">
                        <div class="date">
                            <span class="year">20170115</span>
                            <span class="md">9:00</span>
                        </div>
                    </div>

                    <div class="point"><b></b></div>

                    <div class="liright">
                        <div class="histt"><a href="#">停车场系统</a></div>
                        <div class="hisct">豫E87N90 离开停车场</div>
                    </div>
                </div>
            </li>
            <li>
                <div class="liwrap">

                    <div class="lileft">
                        <div class="date">
                            <span class="year">20170115</span>
                            <span class="md">12:30</span>
                        </div>
                    </div>

                    <div class="point"><b></b></div>

                    <div class="liright">
                        <div class="histt"><a href="#">停车场系统</a></div>
                        <div class="hisct">豫E87N90 驶入停车场</div>
                    </div>
                </div>
            </li>
            <li>
                <div class="liwrap">
                    <div class="lileft">
                        <div class="date">
                            <span class="year">20170115</span>
                            <span class="md">13:00</span>
                        </div>
                    </div>

                    <div class="point"><b></b></div>

                    <div class="liright">
                        <div class="histt"><a href="#">人脸识别系统</a></div>
                    </div>
                </div>
            </li>
            <li>
                <div class="liwrap">
                    <div class="lileft">
                        <div class="date">
                            <span class="year">20170115</span>
                            <span class="md">14:00</span>
                        </div>
                    </div>

                    <div class="point"><b></b></div>

                    <div class="liright">
                        <div class="histt"><a href="#">非机动车系统</a></div>
                        <div class="hisct">黑色电动车 离开车棚</div>
                    </div>
                </div>
            </li>
            <li>
                <div class="liwrap">

                    <div class="lileft">
                        <div class="date">
                            <span class="year">20170115</span>
                            <span class="md">16:30</span>
                        </div>
                    </div>

                    <div class="point"><b></b></div>

                    <div class="liright">
                        <div class="histt"><a href="#">非机动车系统</a></div>
                        <div class="hisct">黑色电动车 驶入车棚</div>
                    </div>
                </div>
            </li>
            <li>
                <div class="liwrap">
                    <div class="lileft">
                        <div class="date">
                            <span class="year">20170115</span>
                            <span class="md">17:00</span>
                        </div>
                    </div>

                    <div class="point"><b></b></div>

                    <div class="liright">
                        <div class="histt"><a href="#">视频监控系统</a></div>
                    </div>
                </div>
            </li>
        </ul>
    </div>
</div>
</body>
</html>

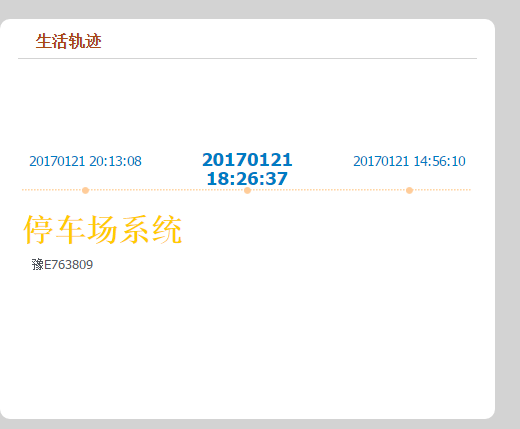

4、运行的效果:

三、纵向可折叠时间轴

1、js文件(jQuery.js和 main.js)

(1)main.js文件

(function ($) {
  if (!!window.ActiveXObject && !window.XMLHttpRequest && (location.href=='http://www.lanrentuku.com' || location.href=='http://www.lanrentuku.com/')) return;
  $(function () {
    nav();
    bnrSilder();
    sideSlider();
    helpToggle();
    systole();
    slideImg();
    downM();
    ExtMutual();
    slides("#slides", ".slides");
    skinMutual();
    srollList("#dialog01", "11");
    srollList("#dialog02", "6");
    anchorLink();

    var img = document.createElement("img");
    img.onload = function() {
      window.onload = function () {
        skinShow();
      };
    };
  });

//滚动
  function nav() {
    var $liCur = $(".nav-box ul li.cur"),
      curP = $liCur.position().left,
      curW = $liCur.outerWidth(true),
      $slider = $(".nav-line"),
      $targetEle = $(".nav-box ul li:not('.last') a"),
      $navBox = $(".nav-box");
    $slider.stop(true, true).animate({
      "left":curP,
      "width":curW
    });
    $targetEle.mouseenter(function () {
      var $_parent = $(this).parent(),
        _width = $_parent.outerWidth(true),
        posL = $_parent.position().left;
      $slider.stop(true, true).animate({
        "left":posL,
        "width":_width
      }, "fast");
    });
    $navBox.mouseleave(function (cur, wid) {
      cur = curP;
      wid = curW;
      $slider.stop(true, true).animate({
        "left":cur,
        "width":wid
      }, "fast");
    });
  }

  ;
//滚动
  function bnrSilder() {
    if (!$("#head").length && !$("#bnr").length) {
      return;
    }
    (function () {
      if (navigator.userAgent.toLocaleLowerCase().indexOf('opera') >= 0) return;
      var sstag = document.createElement('script');
      sstag.type = 'text/javascript';
      sstag.async = true;
      sstag.src = 'script/SmoothScroll.js';
      var s = document.getElementsByTagName('script')[0];
      s.parentNode.insertBefore(sstag, s);
    })();
    $(window).scroll(function () {
      var bTop = $(this).scrollTop();
      $('.bnr-box').css({
        'margin-top':-bTop * 0.48
      });
      $('.bnr-txt').css({
        'margin-top':-bTop * 0.68
      });
      $('.bnr-btn').css({
        'margin-top':-bTop * 0.68
      });
      $('.warper').css({
        "background-position":"50% " + bTop * 0.2 + "px"
      });
      if (bTop < 200) {
        $(".txt-warp").css({
          'margin-top':-bTop * 1.5
        });
        $(".txt-nav-warp").removeAttr("style");
      } else {
        $(".txt-warp").css({
          'margin-top':-240
        });
        $(".txt-nav-warp").css({
          "position":"fixed",
          "top":0,
          "left":0,
          "box-shadow":"0 2px 6px #eee"
        });

      }
      var idxs = 0;
      if (bTop >= 200 && bTop < 577) {
        idxs;
      } else if (bTop >= 577 && bTop < 1072) {
        idxs = 1;
      } else if (bTop >= 1072 && bTop < 1165) {
        idxs = 2;
      } else if (bTop >= 1165) {
        idxs = 3;
      }
      $('.txt-nav li a').eq(idxs).addClass('on').parent().siblings().children().removeClass

        ('on');
      if (bTop < 200) {
        $('.txt-nav li a').removeClass('on');
      }
    });
  };


  function sideSlider() {
    if (!$(".help-side dl").length) {
      return false;
    }
    var $aCur = $(".help-side dl").find(".cur a"),
      $targetA = $(".help-side dl dd a"),
      $sideSilder = $(".side-slider"),
      curT = $aCur.position().top - 3;
    $sideSilder.stop(true, true).animate({
      "top":curT
    });
    $targetA.mouseenter(function () {
      var posT = $(this).position().top - 3;
      $sideSilder.stop(true, true).animate({
        "top":posT
      }, 240);
    }).parents(".help-side").mouseleave(function (_curT) {
        _curT = curT
        $sideSilder.stop(true, true).animate({
          "top":_curT
        });
      });
  }

  ;

  function helpToggle() {
    if (!$(".help-cont dl dt a").length) {
      return;
    }
    var $targetEle = $(".help-cont dl dt a");
    $targetEle.toggle(function () {
      $(this).parent().css({
        "background-position":"0 -20px"
      }).siblings().slideDown();
      return false;
    }, function () {
      $(this).parent().removeAttr("style").siblings().slideUp();
      return false;
    });
  }

  ;

  function systole() {
    if (!$(".history").length) {
      return;
    }
    var $warpEle = $(".history-date"),
      $targetA = $warpEle.find("h2 a,ul li dl dt a"),
      parentH,
      eleTop = [];
    parentH = $warpEle.parent().height();
    $warpEle.parent().css({
      "height":59
    });
    setTimeout(function () {

      $warpEle.find("ul").children(":not('h2:first')").each(function (idx) {
        eleTop.push($(this).position().top);
        $(this).css({
          "margin-top":-eleTop[idx]
        }).children().hide();
      }).animate({
          "margin-top":0
        }, 1600).children().fadeIn();
      $warpEle.parent().animate({
        "height":parentH
      }, 2600);

      $warpEle.find("ul").children(":not('h2:first')").addClass("bounceInDown").css({
        "-webkit-animation-duration":"2s",
        "-webkit-animation-delay":"0",
        "-webkit-animation-timing-function":"ease",
        "-webkit-animation-fill-mode":"both"
      }).end().children("h2").css({
          "position":"relative"
        });
    }, 600);

    $targetA.click(function () {
      $(this).parent().css({
        "position":"relative"
      });
      $(this).parent().siblings().slideToggle();
      $warpEle.parent().removeAttr("style");
      return false;
    });

  }

  ;


})(jQuery);

2、CSS文件

body, p, form, input, textarea, ul, li, h1, h2, h3, h4, dl, dt, dd, table, td, th { margin:0; padding:0; }
table, td, th { border-collapse:collapse; }
ul.event_year li {
    width:100px;
    margin-left:-10px;
}
ul, li { list-style:none; }
h1, h2, h3, h4 { font-size:100%; }
img, input, textarea { vertical-align: middle; border:0; }
a { text-decoration:none; color:#787878; outline:none; }
a:hover { text-decoration:underline; }
body { font:12px/1.5 "微软雅黑","tahoma", Verdana, Geneva, sans-serif; color:#666; position:relative;}
.clearfix:after{content:" "; display:block; height:0; clear:both; visibility:hidden;}
.clearfix{zoom:1;}
.fl { float:left;}
.fr { float:right;}
/*.public*/
.main {margin:0 auto; width:980px;}
a { blr:expression(this.onFocus=this.blur()) } /*针对 IE*/
a { outline:none; } /*针对firefox等*/

.main { min-height:720px; }
/*history*/
.history { background:url(../images/line04.gif) repeat-y 187px 0; overflow:hidden; position:relative;margin-left:-250px;}
.history-date { overflow:hidden;}
.history-date h2 { background:url(../images/icon06.gif) #fff no-repeat 158px 0; height:59px; font-size:25px; font-family:微软雅黑; font-weight:normal; padding-left:45px; margin-bottom:74px;  }
.history-date h2.first { position:absolute; left:0; top:0; width:935px; z-index:99;}
.history-date h2 a { color:#00bbff; display:inline-block; *display:inline; zoom:1; background:url(../images/icon08.gif) no-repeat right 50%; padding-right:17px; margin:21px 97px 0 0;margin-left:-30px;}
.history-date h2 a:hover { text-decoration:none;}
.history-date h2 img { vertical-align:-5px;}
.history-date h2.date02 { background:none;}
.history-date ul {}
.history-date ul li { background:url(../images/icon07.gif) no-repeat 180px 0; padding-bottom:50px; zoom:1; }
.history-date ul li.last { padding-bottom:0;}
.history-date ul li:after{content:" "; display:block; height:0; clear:both; visibility:hidden;}
.history-date ul li h3 { float:left; width:168px; text-align:right; padding-right:19px;color:#c3c3c3; font:normal 18px/16px Arial;}
.history-date ul li h3 span { display:block; color:#d0d0d0; font-size:12px;}
.history-date ul li dl { float:left; padding-left:41px; margin-top:-5px; font-family:微软雅黑;}
.history-date ul li dl dt { font:20px/22px 微软雅黑; color:#737373; }
.history-date ul li dl dt span { display:block; color:#787878; font-size:12px;}
.history-date ul li.green h3 { color:#1db702;}
.history-date ul li.green h3 span { color:#a8dda3; }
.history-date ul li.green dl { margin-top:-8px;}
.history-date ul li.green dl dt { font-size:30px; line-height:28px;}
.history-date ul li.green dl dt a { /*background:url(../images/icon09.gif) no-repeat 0 0; width:19px; height:16px;*/ display:inline-block; *display:inline; zoom:1; overflow:hidden; vertical-align: middle; margin-left:12px;}
.history-date ul li.green dl dd { padding-top:20px; display:none;}
.history-date ul li.green dl dd img { float:left;}
.history-date ul li.green dl dd p { overflow:hidden; zoom:1; line-height:21px; color:#787878;}

.history-date h2.first .more-history {font-size: 16px; background: transparent; margin-left: 30px;}
.history-date h2.first .more-history:hover {text-decoration: underline;}

*body .history-date ul li dl dt {_font-size:12px !important; _font-weight:bold;}
*body .history-date ul li dl dt span {_font-weight:normal !important;}
*body .history-date ul li.green dl dt a {_background:transparent !important; *background:transparent !important;*font-size:12px !important; _font-weight:normal !important;}

3、HTML代码

<!DOCTYPE html>
<html >
<head>
<meta http-equiv="Content-Type" content="text/html; charset=gb2312" />
<title>纵向可折叠的时光轴</title>
<link href="css/history.css" rel="stylesheet" />
</head>
<body>
<!-- 代码 开始 -->
<div class="head-warp">
  <div class="head">
        <div class="nav-box">
          <ul>
              <li class="cur" style="text-align:left; font-size:20px; font-family:'微软雅黑', '宋体';">生活轨迹</li>
          </ul>
        </div>
  </div>
</div>
<div class="main">
  <div class="history">
    <div class="history-date">
      <ul>
          <h2 class="first"><a href="#nogo">出入口系统</a></h2>
         <li>
          <h3><span>20170120 22:32:45</span></h3>
          <dl>
            <dt><a href="f?p='||V('APP_ID')||':122:'||V('SESSION')||':::::">出入口系统</a><span>离开小区</span></dt>
          </dl>
        </li>
       <li>
         <h3><span>20170120 21:46:30</span></h3>
          <dl>
            <dt><a href="f?p='||V('APP_ID')||':122:'||V('SESSION')||':::::">出入口系统</a><span>进入小区</span></dt>
          </dl>
        </li>
      </ul>
    </div>
    <div class="history-date">
      <ul>
          <h2 class="date02"><a href="#nogo">停车场系统</a></h2>
        <li>
          <h3><span>20170120 19:15:00</span></h3>
          <dl>
            <dt><a href="f?p='||V('APP_ID')||':130:'||V('SESSION')||':::::">停车场系统</a><span>豫A4NE60</span></dt>
          </dl>
        </li>
        <li>
          <h3><span>20170120 17:23:40</span></h3>
          <dl>
            <dt><a href="f?p='||V('APP_ID')||':130:'||V('SESSION')||':::::">停车场系统</a><span>豫A4NE60</span></dt>
          </dl>
        </li>
      </ul>
    </div>
    <div class="history-date">
      <ul>
          <h2 class="date02"><a href="#nogo">楼宇门禁系统</a></h2>
        <li>
          <h3><span>20170120 15:37:23</span></h3>
          <dl>
            <dt><a href="f?p='||V('APP_ID')||':27:'||V('SESSION')||':::::">楼宇门禁系统</a><span>1#2-205</span></dt>
          </dl>
        </li>
        <li>
          <h3>20170120 13:21:15</h3>
          <dl>
            <dt><a href="f?p='||V('APP_ID')||':27:'||V('SESSION')||':::::">楼宇门禁系统</a><span>1#2-205</span></dt>
          </dl>
        </li>
      </ul>
    </div>
  </div>
</div>

<script type="text/javascript" src="js/jquery.js"></script>
<script type="text/javascript" src="js/main.js"></script>
</body>
</html>

4、运行效果:

四、横向时间轴

1、js文件(jquery.js和jquery.timelinr-0.9.5.3.js)

(1)jquery.timelinr-0.9.5.3.js文件

/* ----------------------------------
jQuery Timelinr 0.9.53
tested with jQuery v1.6+

Copyright 2011, CSSLab.cl
Free under the MIT license.
http://www.opensource.org/licenses/mit-license.php

instructions: http://www.csslab.cl/2011/08/18/jquery-timelinr/
---------------------------------- */

jQuery.fn.timelinr = function(options){
    // default plugin settings
    settings = jQuery.extend({
        orientation:                 'horizontal',        // value: horizontal | vertical, default to horizontal
        containerDiv:                 '#timeline',        // value: any HTML tag or #id, default to #timeline
        datesDiv:                     '#dates',            // value: any HTML tag or #id, default to #dates
        datesSelectedClass:         'selected',            // value: any class, default to selected
        datesSpeed:                 'normal',            // value: integer between 100 and 1000 (recommended) or 'slow', 'normal' or 'fast'; default to normal
        issuesDiv:                     '#issues',            // value: any HTML tag or #id, default to #issues
        issuesSelectedClass:         'selected',            // value: any class, default to selected
        issuesSpeed:                 'fast',                // value: integer between 100 and 1000 (recommended) or 'slow', 'normal' or 'fast'; default to fast
        issuesTransparency:         0.2,                // value: integer between 0 and 1 (recommended), default to 0.2
        issuesTransparencySpeed:     500,                // value: integer between 100 and 1000 (recommended), default to 500 (normal)
        prevButton:                 '#prev',            // value: any HTML tag or #id, default to #prev
        nextButton:                 '#next',            // value: any HTML tag or #id, default to #next
        arrowKeys:                     'false',            // value: true | false, default to false
        startAt:                     1,                    // value: integer, default to 1 (first)
        autoPlay:                     'false',            // value: true | false, default to false
        autoPlayDirection:             'forward',            // value: forward | backward, default to forward
        autoPlayPause:                 2000                // value: integer (1000 = 1 seg), default to 2000 (2segs)

    }, options);

    $(function(){
        // setting variables... many of them
        var howManyDates = $(settings.datesDiv+' li').length;
        var howManyIssues = $(settings.issuesDiv+' li').length;
        var currentDate = $(settings.datesDiv).find('a.'+settings.datesSelectedClass);
        var currentIssue = $(settings.issuesDiv).find('li.'+settings.issuesSelectedClass);
        var widthContainer = $(settings.containerDiv).width();
        var heightContainer = $(settings.containerDiv).height();
        var widthIssues = $(settings.issuesDiv).width();
        var heightIssues = $(settings.issuesDiv).height();
        var widthIssue = $(settings.issuesDiv+' li').width();
        var heightIssue = $(settings.issuesDiv+' li').height();
        var widthDates = $(settings.datesDiv).width();
        var heightDates = $(settings.datesDiv).height();
        var widthDate = $(settings.datesDiv+' li').width();
        var heightDate = $(settings.datesDiv+' li').height();
        // set positions!
        if(settings.orientation == 'horizontal') {
            $(settings.issuesDiv).width(widthIssue*howManyIssues);
            $(settings.datesDiv).width(widthDate*howManyDates).css('marginLeft',widthContainer/2-widthDate/2);
            var defaultPositionDates = parseInt($(settings.datesDiv).css('marginLeft').substring(0,$(settings.datesDiv).css('marginLeft').indexOf('px')));
        } else if(settings.orientation == 'vertical') {
            $(settings.issuesDiv).height(heightIssue*howManyIssues);
            $(settings.datesDiv).height(heightDate*howManyDates).css('marginTop',heightContainer/2-heightDate/2);
            var defaultPositionDates = parseInt($(settings.datesDiv).css('marginTop').substring(0,$(settings.datesDiv).css('marginTop').indexOf('px')));
        }

        $(settings.datesDiv+' a').click(function(event){
            event.preventDefault();
            // first vars
            var whichIssue = $(this).text();
            var currentIndex = $(this).parent().prevAll().length;
            // moving the elements
            if(settings.orientation == 'horizontal') {
                $(settings.issuesDiv).animate({'marginLeft':-widthIssue*currentIndex},{queue:false, duration:settings.issuesSpeed});
            } else if(settings.orientation == 'vertical') {
                $(settings.issuesDiv).animate({'marginTop':-heightIssue*currentIndex},{queue:false, duration:settings.issuesSpeed});
            }
            $(settings.issuesDiv+' li').animate({'opacity':settings.issuesTransparency},{queue:false, duration:settings.issuesSpeed}).removeClass(settings.issuesSelectedClass).eq(currentIndex).addClass(settings.issuesSelectedClass).fadeTo(settings.issuesTransparencySpeed,1);
            // prev/next buttons now disappears on first/last issue | bugfix from 0.9.51: lower than 1 issue hide the arrows | bugfixed: arrows not showing when jumping from first to last date
            if(howManyDates == 1) {
                $(settings.prevButton+','+settings.nextButton).fadeOut('fast');
            } else if(howManyDates == 2) {
                if($(settings.issuesDiv+' li:first-child').hasClass(settings.issuesSelectedClass)) {
                    $(settings.prevButton).fadeOut('fast');
                     $(settings.nextButton).fadeIn('fast');
                }
                else if($(settings.issuesDiv+' li:last-child').hasClass(settings.issuesSelectedClass)) {
                    $(settings.nextButton).fadeOut('fast');
                    $(settings.prevButton).fadeIn('fast');
                }
            } else {
                if( $(settings.issuesDiv+' li:first-child').hasClass(settings.issuesSelectedClass) ) {
                    $(settings.nextButton).fadeIn('fast');
                    $(settings.prevButton).fadeOut('fast');
                }
                else if( $(settings.issuesDiv+' li:last-child').hasClass(settings.issuesSelectedClass) ) {
                    $(settings.prevButton).fadeIn('fast');
                    $(settings.nextButton).fadeOut('fast');
                }
                else {
                    $(settings.nextButton+','+settings.prevButton).fadeIn('slow');
                }
            }
            // now moving the dates
            $(settings.datesDiv+' a').removeClass(settings.datesSelectedClass);
            $(this).addClass(settings.datesSelectedClass);
            if(settings.orientation == 'horizontal') {
                $(settings.datesDiv).animate({'marginLeft':defaultPositionDates-(widthDate*currentIndex)},{queue:false, duration:'settings.datesSpeed'});
            } else if(settings.orientation == 'vertical') {
                $(settings.datesDiv).animate({'marginTop':defaultPositionDates-(heightDate*currentIndex)},{queue:false, duration:'settings.datesSpeed'});
            }
        });

        $(settings.nextButton).bind('click', function(event){
            event.preventDefault();
            if(settings.orientation == 'horizontal') {
                var currentPositionIssues = parseInt($(settings.issuesDiv).css('marginLeft').substring(0,$(settings.issuesDiv).css('marginLeft').indexOf('px')));
                var currentIssueIndex = currentPositionIssues/widthIssue;
                var currentPositionDates = parseInt($(settings.datesDiv).css('marginLeft').substring(0,$(settings.datesDiv).css('marginLeft').indexOf('px')));
                var currentIssueDate = currentPositionDates-widthDate;
                if(currentPositionIssues <= -(widthIssue*howManyIssues-(widthIssue))) {
                    $(settings.issuesDiv).stop();
                    $(settings.datesDiv+' li:last-child a').click();
                } else {
                    if (!$(settings.issuesDiv).is(':animated')) {
                        $(settings.issuesDiv).animate({'marginLeft':currentPositionIssues-widthIssue},{queue:false, duration:settings.issuesSpeed});
                        $(settings.issuesDiv+' li').animate({'opacity':settings.issuesTransparency},{queue:false, duration:settings.issuesSpeed});
                        $(settings.issuesDiv+' li.'+settings.issuesSelectedClass).removeClass(settings.issuesSelectedClass).next().fadeTo(settings.issuesTransparencySpeed, 1).addClass(settings.issuesSelectedClass);
                        $(settings.datesDiv).animate({'marginLeft':currentIssueDate},{queue:false, duration:'settings.datesSpeed'});
                        $(settings.datesDiv+' a.'+settings.datesSelectedClass).removeClass(settings.datesSelectedClass).parent().next().children().addClass(settings.datesSelectedClass);
                    }
                }
            } else if(settings.orientation == 'vertical') {
                var currentPositionIssues = parseInt($(settings.issuesDiv).css('marginTop').substring(0,$(settings.issuesDiv).css('marginTop').indexOf('px')));
                var currentIssueIndex = currentPositionIssues/heightIssue;
                var currentPositionDates = parseInt($(settings.datesDiv).css('marginTop').substring(0,$(settings.datesDiv).css('marginTop').indexOf('px')));
                var currentIssueDate = currentPositionDates-heightDate;
                if(currentPositionIssues <= -(heightIssue*howManyIssues-(heightIssue))) {
                    $(settings.issuesDiv).stop();
                    $(settings.datesDiv+' li:last-child a').click();
                } else {
                    if (!$(settings.issuesDiv).is(':animated')) {
                        $(settings.issuesDiv).animate({'marginTop':currentPositionIssues-heightIssue},{queue:false, duration:settings.issuesSpeed});
                        $(settings.issuesDiv+' li').animate({'opacity':settings.issuesTransparency},{queue:false, duration:settings.issuesSpeed});
                        $(settings.issuesDiv+' li.'+settings.issuesSelectedClass).removeClass(settings.issuesSelectedClass).next().fadeTo(settings.issuesTransparencySpeed, 1).addClass(settings.issuesSelectedClass);
                        $(settings.datesDiv).animate({'marginTop':currentIssueDate},{queue:false, duration:'settings.datesSpeed'});
                        $(settings.datesDiv+' a.'+settings.datesSelectedClass).removeClass(settings.datesSelectedClass).parent().next().children().addClass(settings.datesSelectedClass);
                    }
                }
            }
            // prev/next buttons now disappears on first/last issue | bugfix from 0.9.51: lower than 1 issue hide the arrows
            if(howManyDates == 1) {
                $(settings.prevButton+','+settings.nextButton).fadeOut('fast');
            } else if(howManyDates == 2) {
                if($(settings.issuesDiv+' li:first-child').hasClass(settings.issuesSelectedClass)) {
                    $(settings.prevButton).fadeOut('fast');
                     $(settings.nextButton).fadeIn('fast');
                }
                else if($(settings.issuesDiv+' li:last-child').hasClass(settings.issuesSelectedClass)) {
                    $(settings.nextButton).fadeOut('fast');
                    $(settings.prevButton).fadeIn('fast');
                }
            } else {
                if( $(settings.issuesDiv+' li:first-child').hasClass(settings.issuesSelectedClass) ) {
                    $(settings.prevButton).fadeOut('fast');
                }
                else if( $(settings.issuesDiv+' li:last-child').hasClass(settings.issuesSelectedClass) ) {
                    $(settings.nextButton).fadeOut('fast');
                }
                else {
                    $(settings.nextButton+','+settings.prevButton).fadeIn('slow');
                }
            }
        });

        $(settings.prevButton).click(function(event){
            event.preventDefault();
            if(settings.orientation == 'horizontal') {
                var currentPositionIssues = parseInt($(settings.issuesDiv).css('marginLeft').substring(0,$(settings.issuesDiv).css('marginLeft').indexOf('px')));
                var currentIssueIndex = currentPositionIssues/widthIssue;
                var currentPositionDates = parseInt($(settings.datesDiv).css('marginLeft').substring(0,$(settings.datesDiv).css('marginLeft').indexOf('px')));
                var currentIssueDate = currentPositionDates+widthDate;
                if(currentPositionIssues >= 0) {
                    $(settings.issuesDiv).stop();
                    $(settings.datesDiv+' li:first-child a').click();
                } else {
                    if (!$(settings.issuesDiv).is(':animated')) {
                        $(settings.issuesDiv).animate({'marginLeft':currentPositionIssues+widthIssue},{queue:false, duration:settings.issuesSpeed});
                        $(settings.issuesDiv+' li').animate({'opacity':settings.issuesTransparency},{queue:false, duration:settings.issuesSpeed});
                        $(settings.issuesDiv+' li.'+settings.issuesSelectedClass).removeClass(settings.issuesSelectedClass).prev().fadeTo(settings.issuesTransparencySpeed, 1).addClass(settings.issuesSelectedClass);
                        $(settings.datesDiv).animate({'marginLeft':currentIssueDate},{queue:false, duration:'settings.datesSpeed'});
                        $(settings.datesDiv+' a.'+settings.datesSelectedClass).removeClass(settings.datesSelectedClass).parent().prev().children().addClass(settings.datesSelectedClass);
                    }
                }
            } else if(settings.orientation == 'vertical') {
                var currentPositionIssues = parseInt($(settings.issuesDiv).css('marginTop').substring(0,$(settings.issuesDiv).css('marginTop').indexOf('px')));
                var currentIssueIndex = currentPositionIssues/heightIssue;
                var currentPositionDates = parseInt($(settings.datesDiv).css('marginTop').substring(0,$(settings.datesDiv).css('marginTop').indexOf('px')));
                var currentIssueDate = currentPositionDates+heightDate;
                if(currentPositionIssues >= 0) {
                    $(settings.issuesDiv).stop();
                    $(settings.datesDiv+' li:first-child a').click();
                } else {
                    if (!$(settings.issuesDiv).is(':animated')) {
                        $(settings.issuesDiv).animate({'marginTop':currentPositionIssues+heightIssue},{queue:false, duration:settings.issuesSpeed});
                        $(settings.issuesDiv+' li').animate({'opacity':settings.issuesTransparency},{queue:false, duration:settings.issuesSpeed});
                        $(settings.issuesDiv+' li.'+settings.issuesSelectedClass).removeClass(settings.issuesSelectedClass).prev().fadeTo(settings.issuesTransparencySpeed, 1).addClass(settings.issuesSelectedClass);
                        $(settings.datesDiv).animate({'marginTop':currentIssueDate},{queue:false, duration:'settings.datesSpeed'},{queue:false, duration:settings.issuesSpeed});
                        $(settings.datesDiv+' a.'+settings.datesSelectedClass).removeClass(settings.datesSelectedClass).parent().prev().children().addClass(settings.datesSelectedClass);
                    }
                }
            }
            // prev/next buttons now disappears on first/last issue | bugfix from 0.9.51: lower than 1 issue hide the arrows
            if(howManyDates == 1) {
                $(settings.prevButton+','+settings.nextButton).fadeOut('fast');
            } else if(howManyDates == 2) {
                if($(settings.issuesDiv+' li:first-child').hasClass(settings.issuesSelectedClass)) {
                    $(settings.prevButton).fadeOut('fast');
                     $(settings.nextButton).fadeIn('fast');
                }
                else if($(settings.issuesDiv+' li:last-child').hasClass(settings.issuesSelectedClass)) {
                    $(settings.nextButton).fadeOut('fast');
                    $(settings.prevButton).fadeIn('fast');
                }
            } else {
                if( $(settings.issuesDiv+' li:first-child').hasClass(settings.issuesSelectedClass) ) {
                    $(settings.prevButton).fadeOut('fast');
                }
                else if( $(settings.issuesDiv+' li:last-child').hasClass(settings.issuesSelectedClass) ) {
                    $(settings.nextButton).fadeOut('fast');
                }
                else {
                    $(settings.nextButton+','+settings.prevButton).fadeIn('slow');
                }
            }
        });
        // keyboard navigation, added since 0.9.1
        if(settings.arrowKeys=='true') {
            if(settings.orientation=='horizontal') {
                $(document).keydown(function(event){
                    if (event.keyCode == 39) {
                       $(settings.nextButton).click();
                    }
                    if (event.keyCode == 37) {
                       $(settings.prevButton).click();
                    }
                });
            } else if(settings.orientation=='vertical') {
                $(document).keydown(function(event){
                    if (event.keyCode == 40) {
                       $(settings.nextButton).click();
                    }
                    if (event.keyCode == 38) {
                       $(settings.prevButton).click();
                    }
                });
            }
        }
        // default position startAt, added since 0.9.3
        $(settings.datesDiv+' li').eq(settings.startAt-1).find('a').trigger('click');
        // autoPlay, added since 0.9.4
        if(settings.autoPlay == 'true') {
            setInterval("autoPlay()", settings.autoPlayPause);
        }
    });
};

// autoPlay, added since 0.9.4
function autoPlay(){
    var currentDate = $(settings.datesDiv).find('a.'+settings.datesSelectedClass);
    if(settings.autoPlayDirection == 'forward') {
        if(currentDate.parent().is('li:last-child')) {
            $(settings.datesDiv+' li:first-child').find('a').trigger('click');
        } else {
            currentDate.parent().next().find('a').trigger('click');
        }
    } else if(settings.autoPlayDirection == 'backward') {
        if(currentDate.parent().is('li:first-child')) {
            $(settings.datesDiv+' li:last-child').find('a').trigger('click');
        } else {
            currentDate.parent().prev().find('a').trigger('click');
        }
    }
}

2、CSS文件

@charset "utf-8";
/* CSS Document */
html, body, div, span, h1, h2, h3, h4, h5, h6, p, pre, a, code, em, img, small, strong, sub, sup, u, i, center, dl, dt, dd, ol, ul, li, fieldset, form, label {
    margin: 0;
    padding: 0;
    border: 0;
    outline: 0;
    font-size: 100%;
    vertical-align: baseline;
    background: transparent;
}

a {
    color: #007bc4 /*#424242*/;
    text-decoration: none;
}

    a:hover {
        text-decoration: underline;
    }

ol, ul {
    list-style: none;
}

table {
    border-collapse: collapse;
    border-spacing: 0;
}

body {
    height: 100%;
    font: 12px/18px Tahoma, Helvetica, Arial, Verdana, "\5b8b\4f53", sans-serif;
    color: #51555C;
    background: #D3D3D3;
}

img {
    border: none;
}

#main {
    width: 550px;
    min-height: 400px;
    margin: 30px auto 0 auto;
    background: #fff;
    -moz-border-radius: 12px;
    -khtml-border-radius: 12px;
    -webkit-border-radius: 12px;
    border-radius: 12px;
    margin-left:5px;
}

h2.top_title {
    margin: 4px 20px;
    padding-top: 15px;
    padding-left: 20px;
    padding-bottom: 10px;
    border-bottom: 1px solid #d3d3d3;
    font-size: 18px;
    color: #a84c10;
    background: url(../images/arrL.gif) no-repeat 2px 14px;
}

3、HTML代码

<!DOCTYPE html>
<html>
<head>
    <meta charset="utf-8">
    <title>横向时间轴</title>
    <link rel="stylesheet" type="text/css" href="css/main.css" />
    <style type="text/css">
        #timeline {
            width: 500px;
            height: 300px;
            overflow: hidden;
            margin: 100px auto;
            position: relative;
            background: url('img/dot.gif') left 45px repeat-x;
        }

        #dates {
            width: 760px;
            height: 60px;
            overflow: hidden;
        }

            #dates li {
                list-style: none;
                float: left;
                width: 180px;
                height: 50px;
                font-size: 24px;
                text-align: center;
                background: url('img/biggerdot.png') center bottom no-repeat;
            }

            #dates a {
                width:180px;
                line-height: 20px;
                padding-bottom: 2px;
                font-size: 15px;
            }

            #dates .selected {
                font-size: 20px;
                font-weight:bold;
            }

        #issues {
            width: 760px;
            height: 300px;
            overflow: hidden;
        }

            #issues li {
                width: 760px;
                height: 300px;
                list-style: none;
                float: left;
            }

                #issues li h3 {
                    color: #ffcc00;
                    font-size: 35px;
                    margin: 20px 0;
                }

                #issues li p {
                    font-size: 14px;
                    margin-right: 70px;
                    margin: 10px;
                    font-weight: normal;
                    line-height: 22px;
                }
    </style>
    <script type="text/javascript" src="js/jquery-1.9.1.min.js"></script>
    <script type="text/javascript" src="js/jquery.timelinr-0.9.53.js"></script>
    <script type="text/javascript">
        $(function () {
            $().timelinr({
                autoPlay: 'true',
                autoPlayDirection: 'forward',
                startAt: 4
            })
        });
    </script>
</head>

<body>

    <div id="main">
        <h2 class="top_title">生活轨迹</h2>
        <div id="timeline">
            <ul id="dates">
                <li><a href="#2005">20170121 22:35:41</a></li>
                <li><a href="#2006">20170121 20:13:08</a></li>
                <li><a href="#2007">20170121 18:26:37</a></li>
                <li><a href="#2008">20170121 14:56:10</a></li>
                <li><a href="#2009">20170121 13:31:27</a></li>
                <li><a href="#2010">20170121 11:47:38</a></li>
                <li><a href="#2011">20170121 9:01:22</a></li>
                <li><a href="#2012">20170121 8:24:39</a></li>
            </ul>
            <ul id="issues">
                <li id="2005">
                    <a href="f?p='||V('APP_ID')||':122:'||V('SESSION')||':::::"><h3>出入口系统</h3></a>
                    <p> 进入小区</p>
                </li>
                <li id="2006">
                    <a href="f?p='||V('APP_ID')||':122:'||V('SESSION')||':::::"><h3>出入口系统</h3></a>
                    <p> 离开小区</p>
                </li>
                <li id="2007">
                    <a href="f?p='||V('APP_ID')||':122:'||V('SESSION')||':::::"><h3>停车场系统</h3></a>
                    <p> 豫E763809</p>
                </li>
                <li id="2008">
                    <a href="f?p='||V('APP_ID')||':122:'||V('SESSION')||':::::"><h3>停车场系统</h3></a>
                    <p> 豫E763809</p>
                </li>
                <li id="2009">
                    <a href="f?p='||V('APP_ID')||':122:'||V('SESSION')||':::::"><h3>楼宇门禁系统</h3></a>
                    <p> 1#2-205</p>
                </li>
                <li id="2010">
                    <a href="f?p='||V('APP_ID')||':122:'||V('SESSION')||':::::"><h3>楼宇门禁系统</h3></a>
                    <p>1#2-205</p>
                </li>
                <li id="2011">
                    <a href="f?p='||V('APP_ID')||':122:'||V('SESSION')||':::::"><h3>非机动车系统</h3></a>
                    <p>车棚4号</p>
                </li>
                <li id="2012">
                    <a href="f?p='||V('APP_ID')||':122:'||V('SESSION')||':::::"><h3>非机动车系统</h3></a>
                    <p>车棚4号</p>
                </li>
            </ul>
        </div>
    </div>
</body>
</html>

4、运行效果

因为项目中需要,领导让我做了多个,他从中挑选一个,还有很多很多例子,就不一一列举出来了。在这里面就简单列举几个简单大方的例子,有需要的小伙伴可以跟我要,大家一起学习。



来自:https://zhuanlan.zhihu.com/p/25234620



编程技巧
